XE 750 HWAR - Poulan Pro Walk-Behind Mower MOWER ASSEMBLY, ENGINE B/S 124702 Parts Diagram

Walk-Behind Mower

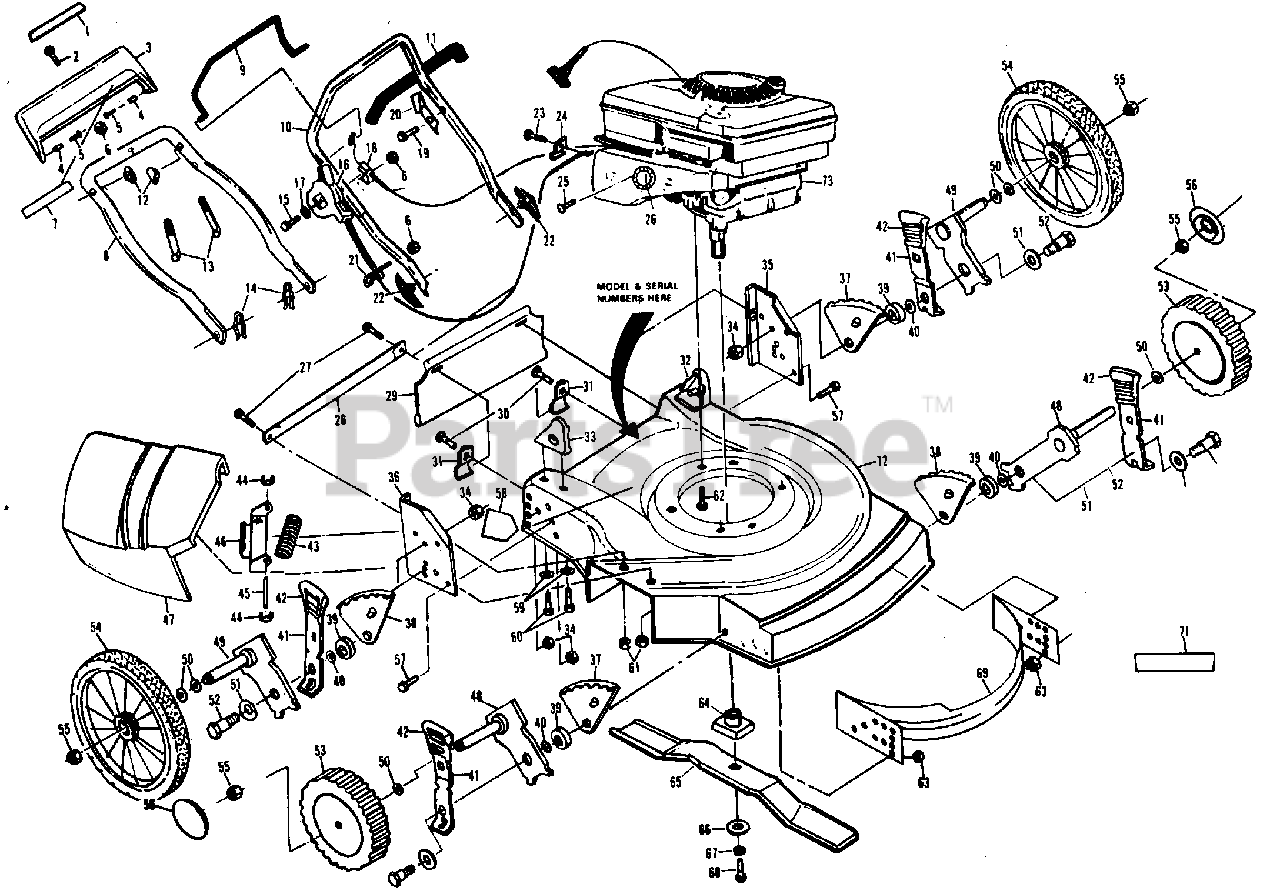

MOWER ASSEMBLY, ENGINE B/S 124702 Parts Diagram

  • Title

1

Poulan 532800787

Trim Plate Decal 5.0 HP

$

$

Not available

2

Poulan 532085436

Hex Washer Head Machine Screw (AYP part number)
(Superseded to 874760424)

$

$

Not available

3

Poulan 532800542

Trim Plate

$

$

Not available

4

Poulan 532085529

Nylon Bushing (AYP part number)

$

$

Not available

5

Poulan 532085825

Tapping Screw (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

6

Poulan 532063601

Locknut (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 532800669

Trim Plate Decal (AYP part number)

$

$

Not available

8

Poulan 532800481

Lower Handle (AYP part number)
(Superseded to 532125214)

$

$

Not available

9

Poulan 532800655

Control Bar
(Superseded to 532850735)

$

$

Not available

10

Poulan 532800326

Upper Handle

$

$

Not available

11

Poulan 532850724

Handle Grip (AYP part number)
(Superseded to 532155890)

$

$

Not available

12

Poulan 532058714

Handle Bolt
(Superseded to 532183724)

$

$

Not available

13

Poulan 532066426

Wire Tie (AYP part number)
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

14

Poulan 532051793

Hairpin Cotter (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

15

Poulan 532085692

Machine Screw (AYP part number)
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 532851464

Throttle Control
(Superseded to 532851461)

$

$

Not available

17

Poulan 532085723

Flat Washer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

18

Poulan 532851162

Engine Zone Control Cable (AYP part number)
(Superseded to 532851670)

$15.99

$

Usually ships in 3-10 days

0

19

Poulan 532750097

Hex Washer Head Screw (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

20

Poulan 532850734

Up-Stop Bracket (AYP part number)
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

21

Poulan 532800357

Rope Guide (AYP part number)
(Superseded to 532132001)

$18.99

$

In Stock, Qty 5

0

22

Poulan 532069485

Screw (AYP part number)

$

$

Not available

23

Poulan 532107488

Thread Rolling Screw (AYP part number)

$

$

Not available

27

Poulan 532054583

Hex Tapping Screw (AYP part number)

$

$

Not available

28

Poulan 532750157

Support Rod (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

29

Poulan 532751084

Rear Skirt (AYP part number)
(Superseded to 532140540)

$13.99

$

Usually ships in 3-10 days

0

30

Poulan 532081276

Hex Washer Head Tapping Screw (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

31

Poulan 532087585

Rear Skirt Bracket (AYP part number)
(Superseded to 532087584)

$

$

Not available

32

Poulan 532800702

Handle Bracket Assembly (Left)

$

$

Not available

33

Poulan 532800701

Handle Bracket Assembly (Right)

$

$

Not available

34

Poulan 532062336

Locknut (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

35

Poulan 532800662

Wheel Support Bracket (Left)

$

$

Not available

36

Poulan 532800666

Wheel Support Bracket (Right)

$

$

Not available

37

Poulan 532800663

Wheel Adjusting Bracket (L.R & R.F)

$

$

Not available

38

Poulan 532800667

Wheel Adjusting Bracket (R.R. & L.F.)

$

$

Not available

39

Poulan 532084920

Spacer (AYP part number)
(Superseded to 532146630)

$6.49

$

In Stock, only 4 left!

0

40

Poulan 532088348

Flat Washer (AYP part number)

$7.49

$

In Stock, Qty 6

0

41

Poulan 532850863

Selector Spring (AYP part number)
(Superseded to 532125066)

$6.49

$

In Stock, only 1 left!

0

42

Poulan 532077865

Selector Knob (AYP part number)
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

43

Poulan 532087589

Torsion Spring (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

44

Poulan 532033750

E-Ring (AYP part number)
(Superseded to 812000014)

$7.49

$

Usually ships in 3-10 days

0

45

Poulan 532087590

Hinge Rod (AYP part number)

$

$

Not available

46

Poulan 532087593

Housing Bracket Assembly (AYP part number)

$6.99

$

Usually ships in 3-10 days

0

47

Poulan 532750149

Discharge Guard (AYP part number)

$

$

Not available

48

Poulan 532800755

Axle Arm Assembly (Front) (AYP part number)
(Superseded to 532800754)

$

$

Not available

49

Poulan 532751334

Axle Arm Assembly (Rear) (AYP part number)
(Superseded to 532751333)

$3.99

$

Usually ships in 3-10 days

0

50

Poulan 532057143

Wave Washer (AYP part number)
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

51

Poulan 532062335

Belleville Washer (AYP part number)

$9.99

$

Usually ships in 3-10 days

0

52

Poulan 532084921

Shoulder Bolt (AYP part number)
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

53

Poulan 532800333

Wheel & Tire Assembly
(Superseded to 532435276)

$

$

Not available

54

Poulan 532088017

Wheel & Tire Assembly
(Superseded to 532752063)

$84.99

$

Usually ships in 3-10 days

0

55

Poulan 532083923

Locknut (AYP part number)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

56

Poulan 532800543

Hubcap

$

$

Not available

57

Poulan 532055912

Hex Head Bolt (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

58

Poulan 532085463

Danger Decal (AYP part number)

$

$

Not available

59

Poulan 532059289

Flat Washer (AYP part number)

$4.99

$

In Stock, only 2 left!

0

60

Poulan 532055187

Thread Cutting Screw (AYP part number)
(Superseded to 817000512)

$6.49

$

In Stock, Qty 6

0

61

Poulan 532053490

Locknut (AYP part number)
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

62

Poulan 532850998

Hex Head Thread Rolling Screw (AYP part number)
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

63

Poulan 532062336

Locknut (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

64

Poulan 532850977

Blade Adapter (AYP part number)
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

65

Poulan 532850973

Blade 22"
(Superseded to 532406713)

$26.99

$

In Stock, Qty 10

0

66

Poulan 532851074

Hardened Washer (AYP part number)

$4.99

$

In Stock, only 2 left!

0

67

Poulan 532850263

Helical Lockwasher (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

68

Poulan 532851084

Hex Head Screw
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

69

Poulan 532087588

Front Baffle (AYP part number)
(Superseded to 532085283)

$

$

Not available

70

Poulan 532088405

Rear Baffle (AYP part number)
(Superseded to 134027X479)

Note: (Not Shown)

$

$

Not available

71

Poulan 532800644

"Poulan" Decal (AYP part number)

$

$

Not available

72

Poulan 532800997

Lawn Mower Housing

Note: (Incl. Ref. #58)

$

$

Not available

73

Poulan 532800722

Engine - Briggs/Stratton Model No. 124702 Type No. 3118-01, Owners Manual (AYP part number)

Note: Not Shown.

$

$

Not available
