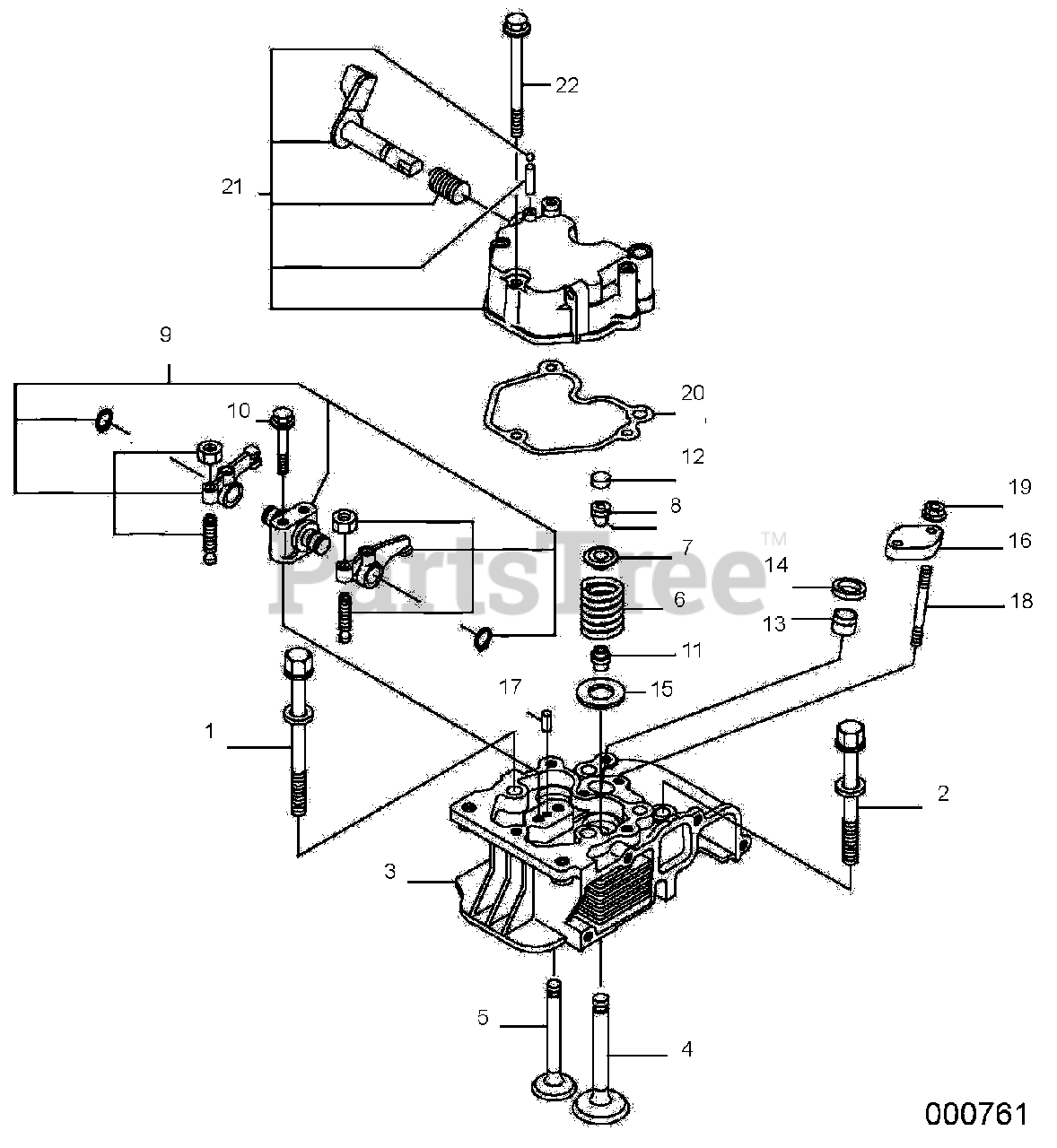

Cylinder Head And Cover Parts Diagram

  • Title

1

Generac 0L13630165

CYLINDER HEAD BOLT (A)

$24.99

$

Usually ships in 2-12 days

0

2

Generac 0L13630166

CYLINDER HEAD BOLT (B)

$25.99

$

Usually ships in 2-12 days

0

3

Generac 0L13630167

CYLINDER HEAD ASSEMBLY

$1298.99

$

Usually ships in 2-12 days

0

Generac 0L1363ASRV

VALVE KIT

Note: (INCLUDES ITEMS 4, 5, 6, 7, 8, 11, 12 AND 15)

$

$

Currently unavailable

4

Generac 0L13630168

INTAKE VALVE

$53.99

$

Usually ships in 2-12 days

0

5

Generac 0L13630169

EXHAUST VALVE

$53.99

$

Usually ships in 2-12 days

0

6

Generac 0L13630170

VALVE SPRING

$30.99

$

Usually ships in 2-12 days

0

7

Generac 0L13630171

SPRING RETAINER

$22.99

$

Usually ships in 2-12 days

0

8

Generac 0L13630172

COTTER ASSEMBLY

$31.99

$

Usually ships in 2-12 days

0

9

Generac 0L13630173

ROCKER ARM SUPPORT ASSEMBLY

$310.99

$

Usually ships in 2-12 days

0

10

Generac 0L13630174

SUPPORT BOLT

$15.99

$

Usually ships in 2-12 days

0

11

Generac 0L13630110

VALVE STEM SEAL

$18.99

$

Usually ships in 2-12 days

0

12

Generac 0L13630111

VALVE CAP

$15.99

$

Usually ships in 2-12 days

0

13

Generac 0L13630128

NOZZLE PROTECTOR

$81.99

$

Usually ships in 2-12 days

0

14

Generac 0L13630129

NOZZLE SEAT

$25.99

$

Usually ships in 2-12 days

0

15

Generac 0L13630175

WASHER

$31.99

$

Usually ships in 2-12 days

0

16

Generac 0L13630115

NOZZLE RETAINER

$11.99

$

Usually ships in 2-12 days

0

17

0718910180

SPRING PIN (4.0X8)

$

$

Not available

18

Generac 0L13630176

STUD (M6X55)

$4.99

$

Usually ships in 2-12 days

0

19

Generac 0L13630177

NUT (M6)

$5.49

$

Usually ships in 2-12 days

0

20

Generac 0L13630178

VALVE COVER GASKET

$17.99

$

Usually ships in 2-12 days

0

21

Generac 0L13630179

VALVE COVER ASSEMBLY

$297.99

$

Usually ships in 2-12 days

0

22

Generac 0L13630223

PLATED BOLT (M6X65)

$6.49

$

Usually ships in 2-12 days

0
