XC 1182HB - Poulan Pro Lawn Tractor FRAME, FENDER AND DRAWBAR Parts Diagram

Lawn Tractor

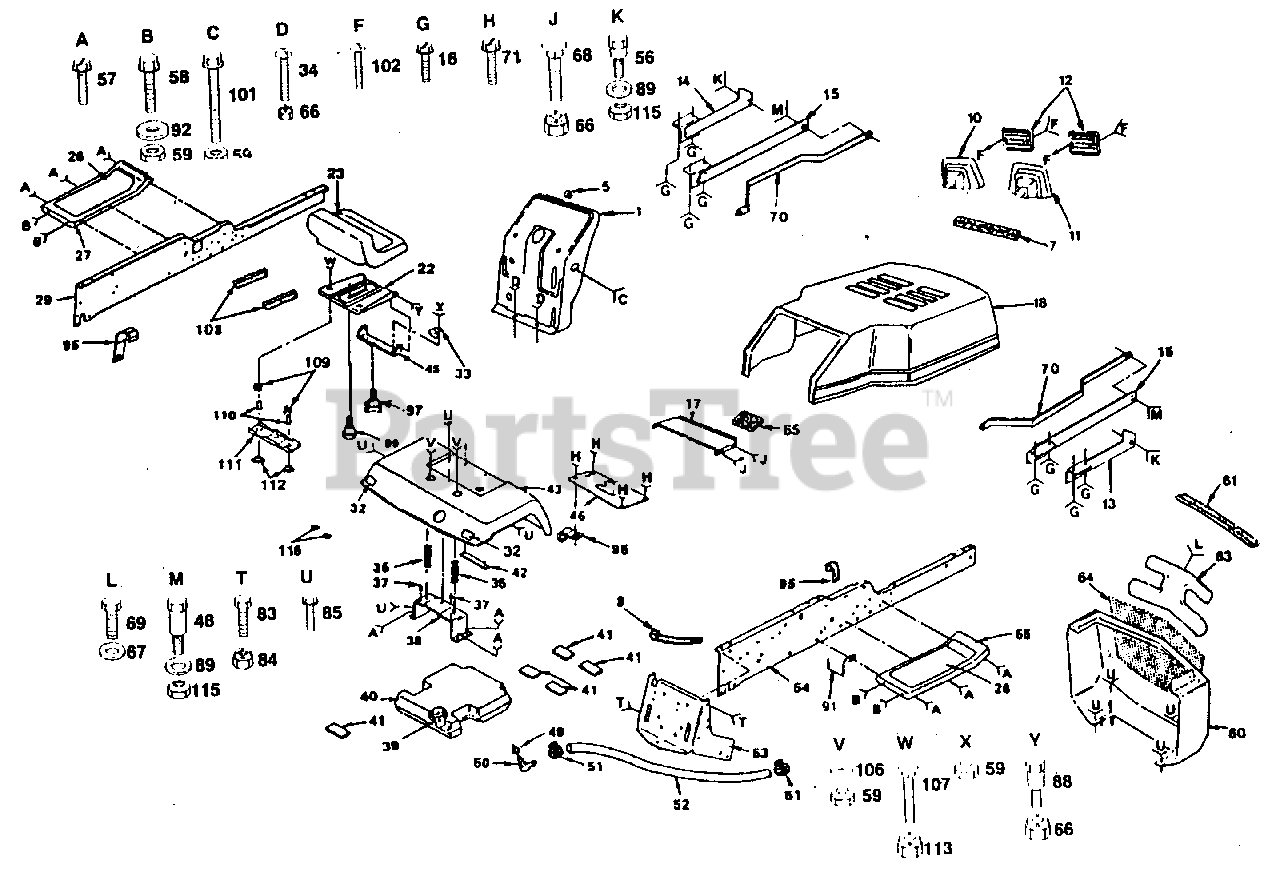

FRAME, FENDER AND DRAWBAR Parts Diagram

  • Title

1

Poulan 532122438

Dash

$

$

Not available

5

Poulan 532125084

Plug, Dash (AYP part number)

$

$

Not available

7

Poulan 532109458

Foam, Strip (AYP part number)

$

$

Not available

8

Poulan 532124756

Cable, Tie (AYP part number)
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

10

Poulan 532124910

Bezel, L.H. (AYP part number)

$

$

Not available

11

Poulan 532125069

Bezel, R.H. (AYP part number)

$

$

Not available

12

Poulan 532109671

Lens (AYP part number)

$

$

Not available

13

Poulan 532125095

Strap Assembly Hinge R.H. (AYP part number)

$

$

Not available

14

Poulan 532124918

Strap Assembly Hinge L.H. (AYP part number)

$

$

Not available

15

Poulan 532124921

Strap Assembly Hinge Rear (AYP part number)

$

$

Not available

16

Poulan 817411310

Screw, Hex Wsh. Hd. #13-16 x 5/8 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 532007985

Support, Battery (AYP part number)

$

$

Not available

18

Poulan 532124909

Hood (AYP part number)

$

$

Not available

22

Poulan 532124294

Pan, Seat (AYP part number)

$

$

Not available

23

Poulan 532127429

Seat (AYP part number)
(Superseded to 532140121)

$

$

Not available

26

Poulan 532108256

Pad, Footrest (AYP part number)

$

$

Not available

27

Poulan 532105465

Footrest, L.H. (AYP part number)
(Superseded to 532145244)

$

$

Not available

29

Poulan 532110893

Rail, Frame, L.H. (AYP part number)
(Superseded to 532151630)

$

$

Not available

32

Poulan 532106202

Reflector, Taillight (AYP part number)

$

$

Not available

33

Poulan 532124955

Clip, Insulated (AYP part number)

$

$

Not available

34

Poulan 874180512

Screw, Mach. Hd. 5/16-18 x 3/4 (AYP part number)

$

$

Not available

35

Poulan 532124181

Spring, Compression (AYP part number)
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

37

Poulan 532105531

Nut, Push (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

38

Poulan 532105509

Bracket, Fender (AYP part number)
(Superseded to 532137113)

$14.99

$

Usually ships in 3-10 days

0

39

Poulan 532123549

Cap, Fuel (AYP part number)
(Superseded to 532158990)

$26.99

$

Usually ships in 3-10 days

0

40

Poulan 532106020

Tank, Fuel (AYP part number)

$

$

Not available

41

Poulan 532106082

Pad, Spacer (AYP part number)

$

$

Not available

42

Poulan 532105511

Strap, Fender (AYP part number)
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

43

Poulan 532121642

Fender (AYP part number)

$

$

Not available

45

Poulan 532126656

Bracket, Pivot, Seat (AYP part number)

$

$

Not available

46

Poulan 532124837

Cover, Shift-Gate (AYP part number)
(Superseded to 532106042)

$

$

Not available

48

Poulan 532124549

Bolt, Shoulder (AYP part number)

$

$

Not available

49

Poulan 532124952

Bushing (AYP part number)
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

50

Poulan 532124951

Stem, Tank Fuel (AYP part number)
(Superseded to 532008710)

$

$

Not available

51

Poulan 532123487

Clamp, Hose (AYP part number)

$7.49

$

In Stock, only 4 left!

0

52

Poulan 532124703

Fuel Line (AYP part number)
(Superseded to 532008542)

$

$

Not available

53

Poulan 532007982

Drawbar (AYP part number)
(Superseded to 532175282)

$

$

Not available

54

Poulan 532110892

Rail, Frame, R.H. (AYP part number)
(Superseded to 532150383)

$121.99

$

Usually ships in 3-10 days

0

55

Poulan 532105464

Footrest, R.H. (AYP part number)
(Superseded to 532145243)

$

$

Not available

56

Poulan 532124815

Bolt, Shoulder (AYP part number)
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

57

Poulan 817490612

Screw, Hex Washer Thread Rolling 3/8-16 x 3/4 (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

58

Poulan 874760612

Bolt, Hex 3/8-16 x 3/4 (AYP part number)

$4.99

$

In Stock, only 3 left!

0

59

Poulan 873680600

Locknut 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

60

Poulan 532122354

Grill (AYP part number)

$

$

Not available

61

Poulan 532124586

Foam, Strip

$

$

Not available

63

Poulan 532124227

Grill, Insert

$103.99

$

Usually ships in 3-10 days

0

64

Poulan 532124443

Screen, Grill

$

$

Not available

65

Poulan 532106086

Foam, Strip (AYP part number)

$

$

Not available

66

Poulan 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

67

Poulan 532008019

Washer 7/32 x 5/8 x 16 Ga. (AYP part number)

$

$

Not available

68

Poulan 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

69

Poulan 817511208

Screw, Hex #12 x 1/2 (AYP part number)

$

$

Not available

70

Poulan 532122196

Brace, Grill (AYP part number)

$

$

Not available

71

Poulan 817240408

Screw, Hex 1/4-20 x 1/2 (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

83

Poulan 874760716

Bolt, Hex 7/16-14 x 1 (AYP part number)
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

84

Poulan 873680700

Locknut 7/16-14 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

85

Poulan 817490608

Screw, Hex Washer Thread Rolling 3/8 x 16 x 1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

88

Poulan 532105529

Bolt, Shoulder (AYP part number)
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

89

Poulan 819090816

Washer 9/32 x 1/2 x 16 Ga. (AYP part number)

$

$

Not available

91

Poulan 532105500

Retainer, Belt, Lower (AYP part number)

$

$

Not available

92

Poulan 819131312

Washer 13/32 x 13/16 x 17 Ga. (AYP part number)
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

95

Poulan 532124967

Clip, Insulated (AYP part number)

$

$

Not available

97

Poulan 532120068

Knob (AYP part number)
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

99

Poulan 532127018

Bolt, Shoulder 5/16-18 (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

101

Poulan 874040612

Bolt, Hex 3/8-16 x 1-1/2 (AYP part number)

$

$

Not available

102

Poulan 817990808

Screw, Pan Hd. #8-18 x 1/2 (AYP part number)

$

$

Not available

106

Poulan 819131614

Washer, 13/32 x 1 x 14 Ga. (AYP part number)
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

107

Poulan 872170410

Bolt, Carr. 1/4-20 x 1-1/4 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

108

Poulan 532121251

Foam, Strip (AYP part number)

$

$

Not available

109

Poulan 532123740

Spring, Compression (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

110

Poulan 532121249

Spacer, Split (AYP part number)

$6.49

$

In Stock, only 2 left!

0

111

Poulan 532121246

Bracket, Switch (AYP part number)
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

112

Poulan 532121248

Bushing, Snap (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

113

Poulan 532123976

Locknut, Flange 1/4-20 (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

115

Poulan 873680400

Nut, Crownlock 1/4-20 (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

116

Poulan 532124238

Cap, Spring (AYP part number)

$

$

Not available

Poulan 532123175

Decal, Operating Instructions (AYP part number)

$

$

Not available

Poulan 532125771

Decal,Attachment Lift (AYP part number)

$

$

Not available

Poulan 532125772

Decal, Attachment Clutch (AYP part number)

$

$

Not available

Poulan 532125712

Decal, Fender, R.H. (AYP part number)

$

$

Not available

Poulan 532124224

Decal, Poulan, L.H. (AYP part number)

$

$

Not available

Poulan 532125715

Decal, Poulan, R.H. Hood (AYP part number)

$

$

Not available

Poulan 532125714

Decal, Poulan, L.H. Hood (AYP part number)

$

$

Not available

Poulan 532125086

Decal, Clutch/Brake (AYP part number)

$

$

Not available

Poulan 532106868

Decal, Drive Belt Schematic (AYP part number)

$

$

Not available

Poulan 532106974

Decal, Caution (AYP part number)

$

$

Not available

Poulan 532125711

Decal, Fender L.H. (AYP part number)

$

$

Not available

Poulan 532124225

Decal, Poulan, R.H. (AYP part number)

$

$

Not available
