XC 1182HB - Poulan Pro Lawn Tractor ELECTRICAL Parts Diagram

Lawn Tractor

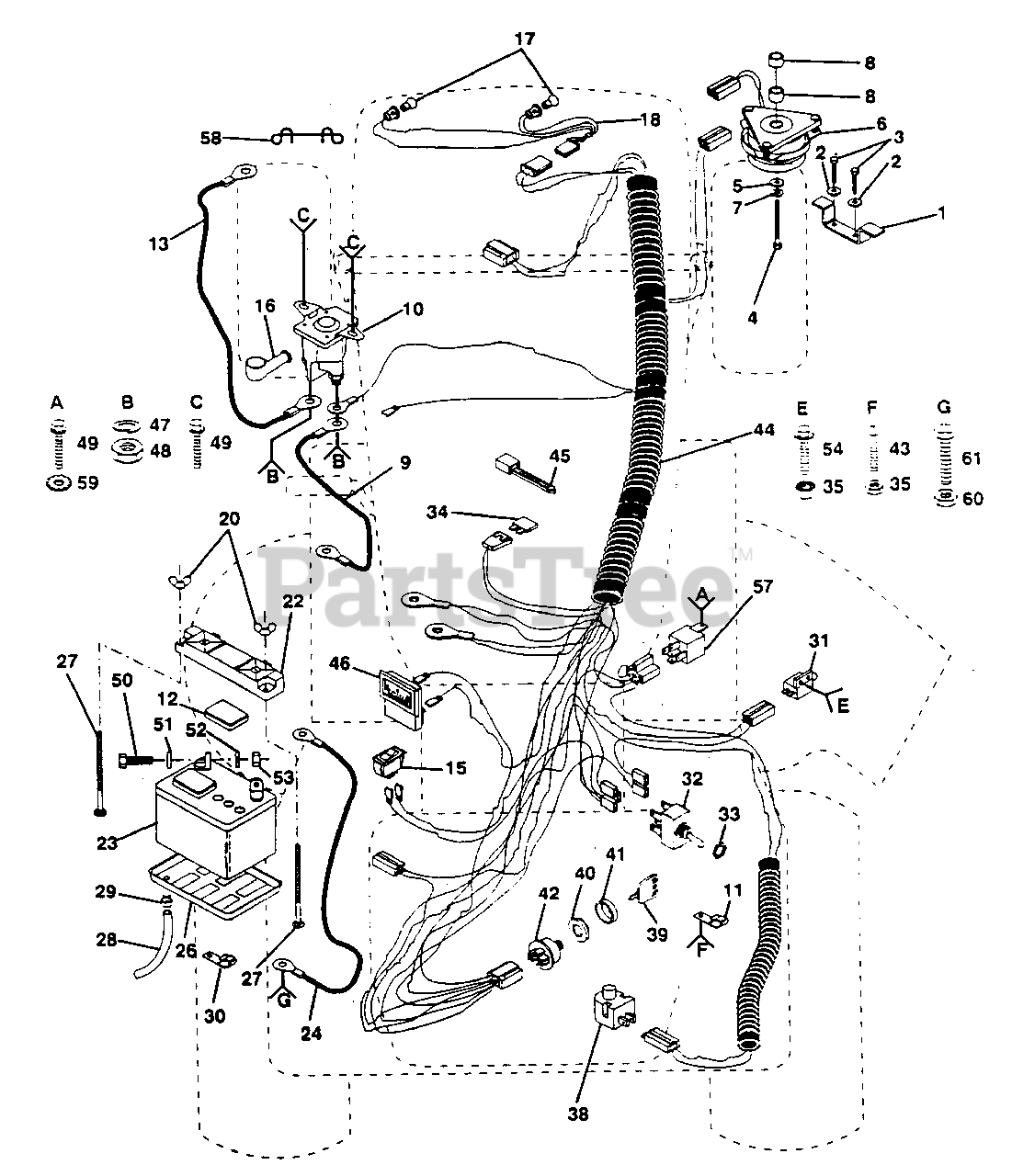

ELECTRICAL Parts Diagram

  • Title

1

Poulan 532110882

Stop, Clutch (AYP part number)

$

$

Not available

2

Poulan 810040600

Washer, Lock 3/8 (AYP part number)
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

3

Poulan 874780612

Bolt, Hex 3/8-16 x 3,4 (AYP part number)

$7.49

$

In Stock, only 2 left!

0

4

Poulan 871130724

Bolt, Hex 7/16-20 x 1-1/2 Grade 5

$2.99

$

Usually ships in 3-10 days

0

5

Poulan 532126197

Washer (AYP part number)

$8.99

$

In Stock, only 3 left!

0

6

Poulan 532109550

Clutch, Electric (AYP part number)

$

$

Not available

7

Poulan 810040700

Washer, Lock 7/16 (AYP part number)
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

8

Poulan 532106367

Spacer, Clutch (AYP part number)

$

$

Not available

9

Poulan 532124770

Cable, Battery (AYP part number)
(Superseded to 532185464)

$10.99

$

Usually ships in 3-10 days

0

10

Poulan 532109081

Solenoid (AYP part number)
(Superseded to 532109946)

$24.99

$

In Stock, only 2 left!

0

11

Poulan 532124967

Clip, Insulated (AYP part number)

$

$

Not available

12

Poulan 532121264

Battery, Caps (AYP part number)

$

$

Not available

13

Poulan 532005115

Cable, Starter (AYP part number)
(Superseded to 532005114)

$

$

Not available

15

Poulan 532110712

Switch, Light (AYP part number)

$9.49

$

In Stock, only 4 left!

0

16

Poulan 532124783

Cover, Terminal (AYP part number)
(Superseded to 532131563)

$8.99

$

In Stock, only 2 left!

0

17

Poulan 532124893

Bulb, Light (AYP part number)
(Superseded to 532007662)

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 532110859

Harness, Light Socket (AYP part number)

$

$

Not available

20

Poulan 532123198

Nut, Wing 1/4-20 (AYP part number)
(Superseded to 532146525)

$

$

Not available

22

Poulan 532102476

Guard, Terminal (AYP part number)
(Superseded to 532150109)

$

$

Not available

23

Poulan 532121537

Battery (AYP part number)
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

24

Poulan 532124773

Cable, Ground (AYP part number)
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

26

Poulan 532124886

Tray, Battery (AYP part number)
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

27

Poulan 872240460

Bolt, Carriage 1/4-20 x 7-1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

28

Poulan 532100541

Tube, Plastic (AYP part number)
(Superseded to 532007697)

$

$

Not available

29

Poulan 532109596

Clamp, Hose (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

30

Poulan 532100207

Clip (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 532104445

Switch, Interlock (AYP part number)

$17.99

$

In Stock, only 1 left!

0

32

Poulan 532126018

Switch, P.T.O.

$

$

Not available

33

Poulan 532124932

Nut, Hex (AYP part number)
(Superseded to 532004022)

$

$

Not available

34

Poulan 532108824

Fuse (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 873951000

Nut, Keps #10-32 (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

38

Poulan 532121305

Switch, Seat (AYP part number)
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

39

Poulan 532122147

Key (AYP part number)

$

$

Not available

40

Poulan 532109788

Nut. Ignition (AYP part number)
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

41

Poulan 532109787

Bezel. Ignition (AYP part number)
(Superseded to 532147626)

$7.49

$

Usually ships in 3-10 days

0

42

Poulan 532125104

Switch. Ignition (AYP part number)
(Superseded to 532365402)

$31.99

$

In Stock, only 4 left!

0

43

Poulan 874641008

Screw. Slot Pan Hd. #10-32 x 1/2 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

44

Poulan 532124219

Harness. Ignition

$

$

Not available

45

Poulan 532124756

Cable. Tie (AYP part number)
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

46

Poulan 532122822

Ammeter (AYP part number)

$20.99

$

In Stock, only 1 left!

0

47

Poulan 810090400

Washer. Lock 1/4 (AYP part number)
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

48

Poulan 873350400

Nut, Hex Jam 1/4-20 (AYP part number)
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

49

Poulan 817190408

Screw, Hex Washer Hd. Thd. Cutting 1 4-20 x 1/2 (AYP part number)
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

50

Poulan 874760412

Bolt, Hex 1/4-20 x 3/4 (AYP part number)

$7.49

$

In Stock, only 1 left!

0

51

Poulan 819091016

Washer 9/32 x 5/8 x 16 Ga. (AYP part number)
(Superseded to 596582301)

$3.99

$

In Stock, Qty 5

0

52

Poulan 810040400

Washer, Lock 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

53

Poulan 873220400

Nut, Hex 1/4-20 (AYP part number)
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

54

Poulan 871031008

Screw, Hex Washer Hd. #10-32 x 1-1/2 (AYP part number)
(Superseded to 874641008)

$2.99

$

Usually ships in 3-10 days

0

57

Poulan 532109748

Assembly, Relay (AYP part number)

$30.99

$

In Stock, only 1 left!

0

58

Poulan 532121465

Tie, Wire (AYP part number)

$

$

Not available

59

Poulan 811050600

Washer, Lock Ext. Tooth 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

60

Poulan 873680600

Nut, Crownlock 3/8
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

61

Poulan 874760612

Bolt, Hex, Fin 3/8-16 x 3/4 (AYP part number)

$4.99

$

In Stock, only 3 left!

0

Poulan 532121549

Decal, Battery (AYP part number)

$

$

Not available

Poulan 532128587

Operator's Manual (English)

$2.99

$

Usually ships in 3-10 days

0

Poulan 532128588

Operator's Manual (French) (AYP part number)

$

$

Not available

Poulan 532101539

Sheet, Instruction, Tractor 15ø Slope (English) (AYP part number)

$

$

Not available

Poulan 532101572

Sheet, Instruction, Tractor 15ø Slope (French) (AYP part number)

$

$

Not available
