XC 1122 B - Poulan Lawn Tractor (1991) STEERING, FRONT AXLE AND WHEELS Parts Diagram

Lawn Tractor

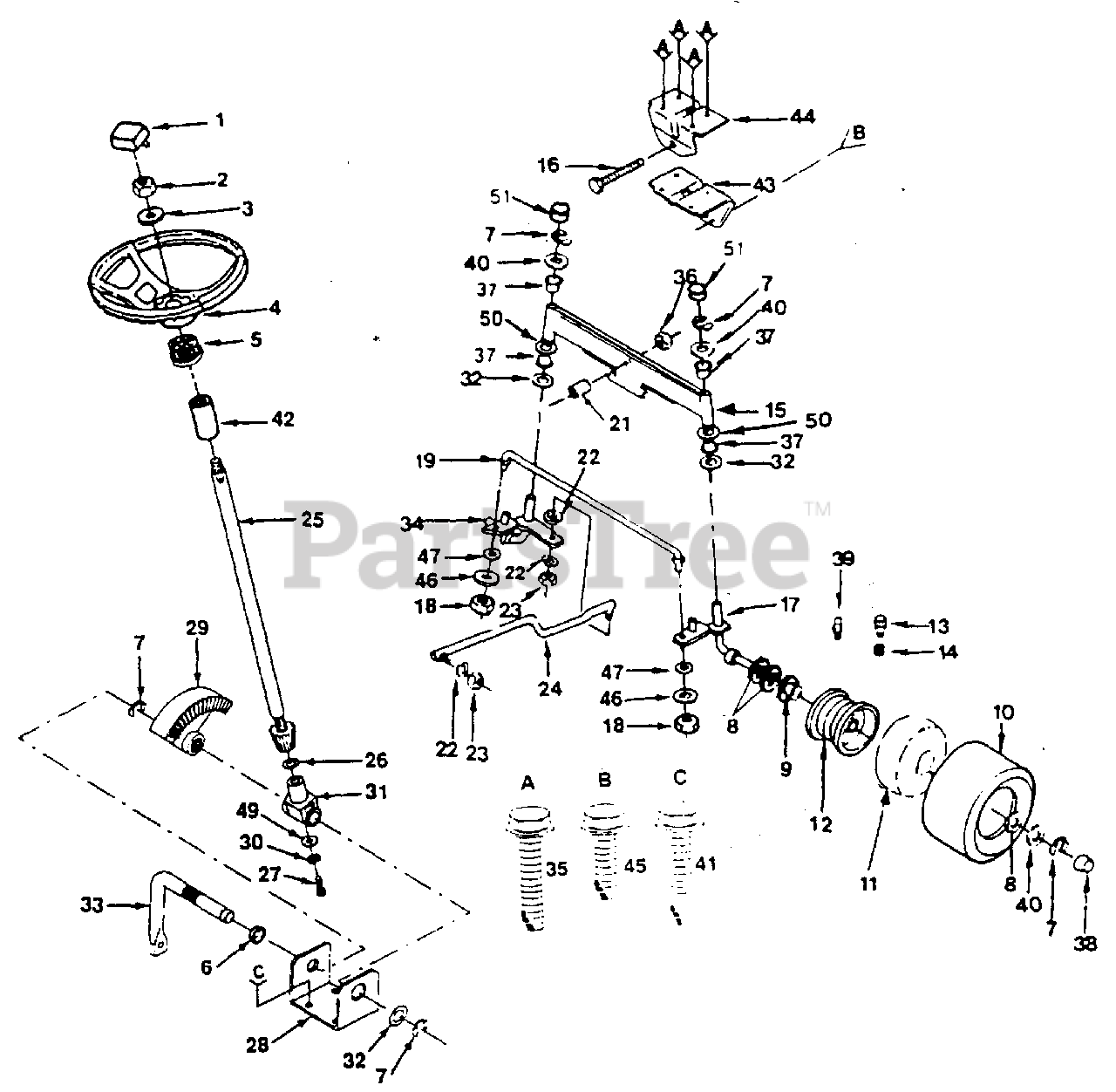

STEERING, FRONT AXLE AND WHEELS Parts Diagram

  • Title

1

Electrolux/AYP 532100710

Insert, Steering Wheel

$

$

Not available

2

Electrolux/AYP 873940800

Nut, Hex, Jam, Toplock 1/2-20

$7.49

$

In Stock, only 4 left!

0

3

Electrolux/AYP 532100712

Washer 17/32 x 2-1/4 x .160

$

$

Not available

4

Electrolux/AYP 532100713

Steering Wheel
(Superseded to 583261901)

$46.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532100711

Adapter, Steering Wheel
(Superseded to 532186737)

$9.49

$

In Stock, Qty 6

0

6

Electrolux/AYP 532109816

Nyliner, Snap-in

$6.49

$

In Stock, only 2 left!

0

7

Electrolux/AYP 812000029

Ring, Klip

$4.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532124959

Bearings, Wheel, Front
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 532106222

Tire 15 x .00-6
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532059904

Tube (Not furnished w/Tractor)

$37.99

$

In Stock, Qty 7

0

12

Electrolux/AYP 532125121

Rim Assembly, Front, (Includes 2 each Key No. 9)
(Superseded to 532106732)

$91.99

$

In Stock, only 4 left!

0

13

Electrolux/AYP 532065139

Stem, Valve

$9.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 532059192

Cap, Valve

$7.49

$

In Stock, Qty 9

0

15

Electrolux/AYP 532108075

Axle Assembly, Front

$

$

Not available

16

Electrolux/AYP 874761060

Bolt, Hex 5/8-11 x 3-3/4

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532105654

Spindle Assembly, R.H.
(Superseded to 532130524)

$

$

Not available

18

Electrolux/AYP 873810500

Nut, Hex 5/16-24
(Superseded to 873610500)

$

$

Not available

19

Electrolux/AYP 532121334

Rod, Tie
(Superseded to 532130467)

$93.99

$

In Stock, only 4 left!

0

21

Electrolux/AYP 532110438

Spacer, Bearing, Axle, Front
(Superseded to 532155134)

$

$

Not available

22

Electrolux/AYP 810040600

Washer, Lock 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 873610600

Nut, Hex 3/8-24
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 532128122

Link, Drag

$

$

Not available

25

Electrolux/AYP 532128755

Shaft, Steering

$

$

Not available

26

Electrolux/AYP 532057079

Washer

$6.49

$

In Stock, Qty 10

0

27

Electrolux/AYP 871070410

Screw, Hex, Socket 1/4-20 x 5/8
(Superseded to 532165857)

$6.49

$

In Stock, only 3 left!

0

28

Electrolux/AYP 532124036

Bracket, Assembly, Steering

$

$

Not available

29

Electrolux/AYP 532124034

Gear, Sector
(Superseded to 532136874)

$80.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

31

Electrolux/AYP 532124035

Support, Shaft
(Superseded to 532160395)

$10.99

$

In Stock, Qty 7

0

32

Electrolux/AYP 532124956

Bearing, Thrust
(Superseded to 532006266)

$7.49

$

In Stock, Qty 8

0

33

Electrolux/AYP 532124033

Shaft, Pitman
(Superseded to 532127501)

$

$

Not available

34

Electrolux/AYP 532105656

Spindle Assembly, L.H.
(Superseded to 532156483)

$26.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532122819

Screw, Hex, Special

$

$

Not available

36

Electrolux/AYP 873601000

Locknut, Hex w Washer 5 8-16
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532124937

Bearing
(Superseded to 532003366)

$4.99

$

In Stock, Qty 19

0

38

Electrolux/AYP 532104757

Cap, Axle

$4.99

$

In Stock, Qty 20+

0

39

Electrolux/AYP 532124957

Fitting, Grease
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$4.99

$

In Stock, Qty 20+

0

41

Electrolux/AYP 817490612

Screw, Hex, Washer Hd., Thd. Form. 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

42

Electrolux/AYP 532100714

Tube, Shaft, Steering

$

$

Not available

43

Electrolux/AYP 532105664

Support, Saddle, Front

$9.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 532105663

Support, Saddle, Rear

$

$

Not available

45

Electrolux/AYP 817490508

Screw, Hex, Washer Hd., Thd. Roll. 5/16-18 x 1/2

$6.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 810040500

Washer, Lock 5/16

$4.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 819111216

Washer, 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 532126684

Washer, Shim 1/4 x 5/8 x .062
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 819272016

Washer 27/32 x 1-1/4 x 16 Ga.

$6.49

$

In Stock, only 2 left!

0

51

Electrolux/AYP 532121232

Cap, Spindle

$4.99

$

In Stock, Qty 8

0

Electrolux/AYP 532124234

Decal, Logo, Steering Wheel Insert

$

$

Not available
