XC 1122 B - Poulan Lawn Tractor (1991) POWER AND MECHANICAL CONTROLS GROUP Parts Diagram

Lawn Tractor

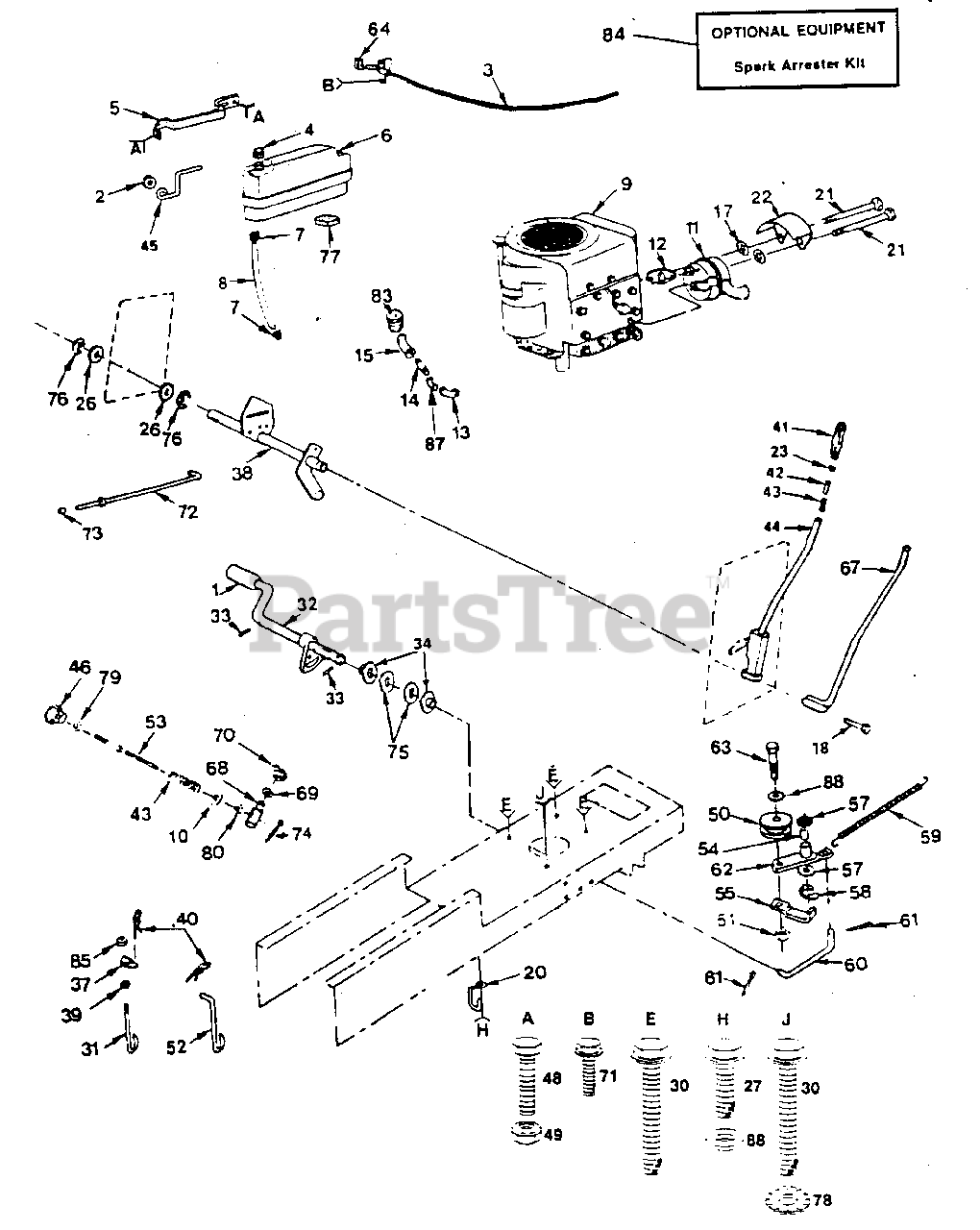

POWER AND MECHANICAL CONTROLS GROUP Parts Diagram

  • Title

1

Electrolux/AYP 532124872

Cover, Pedal
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 819131314

Washer, 13/32 x 13/16 x 14 Ga.

$

$

Not available

3

Electrolux/AYP 532121275

Control, Throttle

$

$

Not available

4

Electrolux/AYP 532124912

Cap, Fuel
(Superseded to 532008504)

$

$

Not available

5

Electrolux/AYP 532124711

Support, Tank, Fuel

$

$

Not available

6

Electrolux/AYP 532121280

Tank, Fuel

$

$

Not available

7

Electrolux/AYP 532123487

Clamp, Hose

$7.49

$

In Stock, only 4 left!

0

8

Electrolux/AYP 532124953

Line, Fuel
(Superseded to 532008542)

$

$

Not available

9

Electrolux/AYP 532124149

Engine, Briggs & Stratton, Model No. 281707, Type No. 1413-01

$

$

Not available

10

Electrolux/AYP 819131016

Washer 13/32 x 5/8 x 16 Ga.

$6.49

$

In Stock, Qty 5

0

11

Electrolux/AYP 532121304

Muffler

$

$

Not available

12

Electrolux/AYP 532125593

Gasket, Exhaust
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 813240300

Elbow, Street

$7.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 813280328

Nipple, Pipe, STD 3/8-18 NPT x 3-1/2

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 813200300

Elbow, STD 90ø 3/8-18 NPT
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

17

Electrolux/AYP 819151616

Washer 15/32 x 1 x 16 Ga.
(Superseded to 734117801)

$

$

Not available

18

Electrolux/AYP 874780624

Bolt, Hex 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532104777

Retainer, Belt, Chassis, L.H.
(Superseded to 532136715)

$

$

Not available

21

Electrolux/AYP 532121744

Bolt, Shoulder

$

$

Not available

22

Electrolux/AYP 532121742

Shield, Heat, Muffler

$

$

Not available

23

Electrolux/AYP 532124526

Button, Plunger
(Superseded to 532125925)

$

$

Not available

26

Electrolux/AYP 819292016

Washer 29/32 x 1-1/4 x 16 Ga.

$7.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 817490612

Screw, Hex, Washer Hd., Thd. Roll. 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

30

Electrolux/AYP 817490620

Screw, Hex, Washer Hd., Thd. Roll. Type TT 3/8-16 x 1-1/4
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 532110448

Link, Lift, Adjustable

$7.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 532122424

Shaft, Pedal, Foot

$

$

Not available

33

Electrolux/AYP 532124963

Pin, Roll 3/16 x 1
(Superseded to 532002882)

$

$

Not available

34

Electrolux/AYP 532120183

Bearing, Nylon

$6.99

$

In Stock, only 4 left!

0

37

Electrolux/AYP 532110447

Trunnion, Lift
(Superseded to 532132793)

$

$

Not available

38

Electrolux/AYP 532121000

Shaft Assembly, Lift
(Superseded to 121000X)

$48.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 873360700

Nut, Hex, Jam 7/16-20

$5.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 532124670

Retainer, Spring
(Superseded to 532085902)

$

$

Not available

41

Electrolux/AYP 532109413

Grip, Handle
(Superseded to 532125631)

$7.99

$

In Stock, only 1 left!

0

42

Electrolux/AYP 532122364

Plunger, Lever, Hand
(Superseded to 532125925)

$

$

Not available

43

Electrolux/AYP 532124874

Spring
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 532121002

Lever Assembly, Hand Kit (Inc. 67)
(Superseded to 532123096)

$

$

Not available

45

Electrolux/AYP 532124170

Brace, Tank

$

$

Not available

46

Electrolux/AYP 532121891

Handle, Adjust, Lift
(Superseded to 121891X)

$

$

Not available

48

Electrolux/AYP 874780512

Bolt, Hex 5/16-18 x 3/4 Gr. 5
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

49

Electrolux/AYP 873680500

Locknut 5/16-18 Gr. B
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

50

Electrolux/AYP 532123766

Pulley, Idler
(Superseded to 532127783)

$37.99

$

In Stock, only 2 left!

0

51

Electrolux/AYP 873680600

Nut 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

52

Electrolux/AYP 532110029

Link, Lift

$

$

Not available

53

Electrolux/AYP 532110729

Rod, Adjust, Lift

$

$

Not available

54

Electrolux/AYP 532105706

Bearing

$7.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 532123205

Retainer, Belt

$6.49

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 532110812

Washer, Hardened
(Superseded to 110812X)

$

$

Not available

58

Electrolux/AYP 812000039

Ring, Klip

$6.49

$

In Stock, Qty 7

0

59

Electrolux/AYP 532105709

Spring, Return, Clutch

$11.99

$

In Stock, only 4 left!

0

60

Electrolux/AYP 532105710

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

62

Electrolux/AYP 532123789

Arm, Idler

$

$

Not available

63

Electrolux/AYP 874760624

Bolt, Hex 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 532061159

Knob, Control, Throttle

$

$

Not available

67

Electrolux/AYP 532121006

Rod, Lever

$34.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 532110810

Trunnion, Stop, Depth

$

$

Not available

69

Electrolux/AYP 819151216

Washer 15/32 x 3/4 x 16 Ga.
(Superseded to 19151216)

$

$

Not available

70

Electrolux/AYP 812000037

Ring, Klip

$6.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 817720410

Screw, Hex, Washer Hd., Thd. Cut. 1/4-20 x 5/8
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

72

Electrolux/AYP 532125637

Rod, Brake, Park
(Superseded to 532133261)

$

$

Not available

73

Electrolux/AYP 532071673

Cap, Plunger

$5.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 876020308

Pin, Cotter 3/32 x 1/2
(Superseded to 532003145)

$

$

Not available

75

Electrolux/AYP 819211616

Washer 21/32 x 1 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 812000022

E-Ring

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 532006431

Pad, Spacer

$

$

Not available

78

Electrolux/AYP 811050600

Washer, Lock, Ext. Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 873350600

Nut, Hex, Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

80

Electrolux/AYP 532110807

Nut, Special

$

$

Not available

84

Electrolux/AYP 532100091

Spark Arrester Kit

$

$

Not available

85

Electrolux/AYP 873710700

Nut, Jam, Crownlock 7/16-20
(Superseded to 73710700)

$2.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 813310300

Elbow, Street, 45ø

$8.99

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 819131316

Washer 13/32 x 13/16 x 16 Ga.

$4.99

$

In Stock, Qty 5

0

Electrolux/AYP 532121120

Decal, Label, Engine Maintenance

$

$

Not available

Electrolux/AYP 532120601

Decal, 12 HP Engine

$

$

Not available
