XC 1120B - Poulan Pro Lawn Tractor TRANSAXLE FOOTE - MODEL NUMBER 4360-7 Parts Diagram

Lawn Tractor

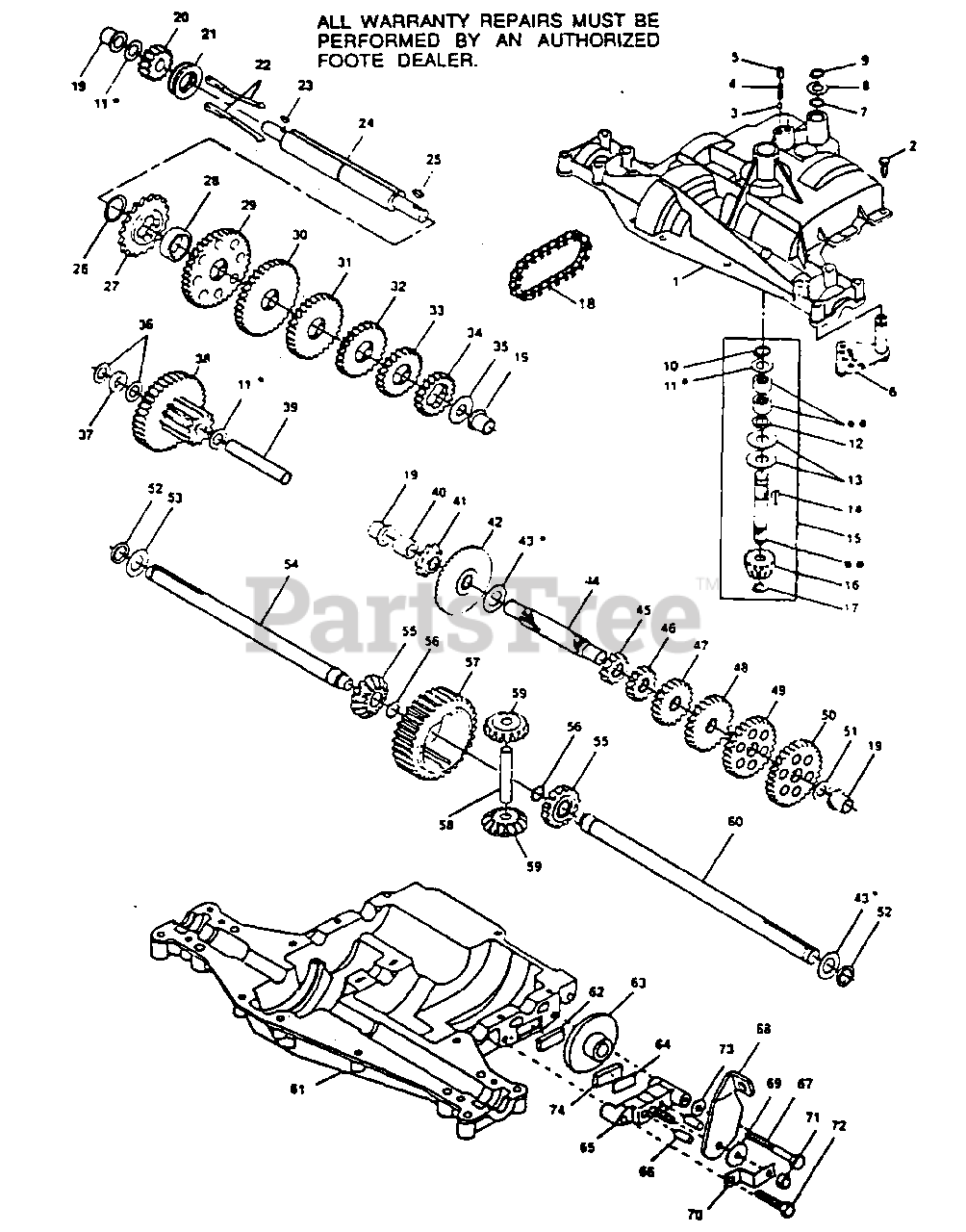

TRANSAXLE FOOTE - MODEL NUMBER 4360-7 Parts Diagram

  • Title

1

Poulan 003865

Housing, Upper (Dana part number)

$

$

Not available

2

Poulan 001919

Screw, Tapping, 1/4-20 x .734 Lg. (Dana part number)

$

$

Not available

3

Poulan 001151

Ball, Detent (Dana part number)

$

$

Not available

4

Poulan 003626

Spring, Detent (Dana part number)

$

$

Not available

5

Poulan 003623

Screw, Set (Dana part number)

$

$

Not available

6

Poulan 004336

Assy., Shifter (Dana part number)

$

$

Not available

7

Poulan 003884

O-Ring (Dana part number)

$

$

Not available

8

Poulan 003885

Washer, Plain, .505 x .942 x .006 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

8

Poulan 003886

Washer, Plain, .505 x .942 x .010 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

8

Poulan 003887

Washer, Plain, .505 x .942 x .015 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

8

Poulan 003888

Washer, Plain, .505 x .942 x .020 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

8

Poulan 003889

Washer, Plain, .505 x .942 x .026 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

8

Poulan 003121

Washer, Plain, .505 x .942 x .030 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

8

Poulan 003890

Washer, Plain, .505 x .942 x .040 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

9

Poulan 001100

Ring, Retaining (Dana part number)

$

$

Not available

10

Poulan 001099

Ring, Retaining (Dana part number)

$

$

Not available

11

Poulan 001959

Washer, Plain, .632 x 1.00 x .010 (Dana part number)

$

$

Not available

11

Poulan 001441

Washer, Plain, .632 x 1.00 x .020 (Dana part number)

$

$

Not available

11

Poulan 001423

Plain Washer .632 x 1.00 x .026 (Dana part number)

$

$

Not available

11

Poulan 001082

Washer, Plain, .632 x 1.00 x .031 (Dana part number)

$

$

Not available

11

Poulan 001424

Washer, Plain, .632 x 1.00 x .036 (Dana part number)

$

$

Not available

11

Poulan 001068

Washer, Plain, .632 x 1.00 x .041 (Dana part number)

$

$

Not available

11

Poulan 001425

Washer, Plain, .632 x 1.00 x .046 (Dana part number)

$

$

Not available

11

Poulan 001358

Washer, Plain, .632 x 1.00 x .050 (Dana part number)

$

$

Not available

11

Poulan 001145

Washer, Plain, .632 x 1.00 x .060 (Dana part number)

$

$

Not available

11

Poulan 001319

Washer, Plain, .632 x 1.00 x .082 (Dana part number)

$

$

Not available

12

Poulan 003312

O-Ring (Dana part number)

$

$

Not available

13

Poulan 531003876

Washer, Plain, .632 x 1.38 x .046

$

$

Not available

14

Poulan 530001374

Key, Woodruff, #9

$

$

Not available

15

Poulan 004134

Ass'y., Kit, Input Shaft (Dana part number)

$

$

Not available

16

Poulan 003590

Pinion, Bevel, 14T. (Dana part number)

$

$

Not available

17

Poulan 003624

Ring, Retaining (Dana part number)

$

$

Not available

18

Poulan 003625

Chain, 24 Pitches (Dana part number)

$

$

Not available

19

Poulan 001542

Bearing, Flange (Dana part number)

$

$

Not available

20

Poulan 530003773

Gear, Spur, 14T.

$

$

Not available

21

Poulan 003631

Collar, Clutch (Dana part number)

$

$

Not available

22

Poulan 003828

Key, Clutch (Dana part number)

$

$

Not available

23

Poulan 530001369

Key, Woodruff

$

$

Not available

24

Poulan 003883

Shaft, Intermediate (Dana part number)

$

$

Not available

25

Poulan 001375

Key, Woodruff, #61 (Dana part number)

$

$

Not available

26

Poulan 003627

Ring, Retaining (Dana part number)

$

$

Not available

27

Poulan 003830

Sprocket, 18T. (Dana part number)

$

$

Not available

28

Poulan 003841

Spacer (Dana part number)

$

$

Not available

29

Poulan 530003786

Gear, Spur, 37T.

$

$

Not available

30

Poulan 530003785

Gear, Spur, 35T.

$

$

Not available

31

Poulan 003867

Gear, Spur, 30T. (Dana part number)

$

$

Not available

32

Poulan 530003783

Gear, Spur, 25T.

$

$

Not available

33

Poulan 003869

Gear, Spur, 22T. (Dana part number)

$

$

Not available

34

Poulan 003741

Gear, Spur, 19T. (Dana part number)

$

$

Not available

35

Poulan 003628

Washer, Plain, .640 x 1.37 x .061 (Dana part number)

$

$

Not available

36

Poulan 001423

Plain Washer .632 x 1.00 x .026 (Dana part number)

$

$

Not available

37

Poulan 003422

Spacer, .630 x 1.00 x .169 (Dana part number)

$

$

Not available

38

Poulan 004286

Ass'y., Gear, Comb., 12T. & 35T. (Dana part number)

$

$

Not available

39

Poulan 003877

Shaft, Idler (Dana part number)

$

$

Not available

40

Poulan 003901

Spacer, .635 x.875 x .755 (Dana part number)

$

$

Not available

41

Poulan 003645

Sprocket, 9T. (Dana part number)

$

$

Not available

42

Poulan 003853

Gear, Bevel, 42T. (Dana part number)

$

$

Not available

43

Poulan 003749

Washer, Plain, .758 x 1.12 x .010 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003652

Washer, Plain, .758 x 1.12 x .015 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003693

Washer, Plain, .758 x 1.12 x .020 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003653

Washer, Plain, .758 x 1.12 x .025 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003408

Washer, Plain, .758 x 1.25 x .020 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003732

Washer, Plain, .758 x 1.25 x .025 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003184

Washer, Plain, .758 x 1.25 x .031 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003733

Washer, Plain, .758 x 1.25 x .035(Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003198

Washer, Plain, .758 x 1.25 x .040(Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003734

Washer, Plain, .758 x 1.25 x .045 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003735

Washer, Plain, .758 x 1.25 x .050 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003736

Washer, Plain, .758 x 1.25 x .055 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Poulan 003180

Washer, Plain, .758 x 1.25 x .062 (Dana part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

44

Poulan 003882

Shaft, Drive (Dana part number)

$

$

Not available

45

Poulan 003646

Gear, Spur, 12T. (Dana part number)

$

$

Not available

46

Poulan 003707

Gear, Spur, 15T. (Dana part number)

$

$

Not available

47

Poulan 003866

Gear, Spur, 20T. (Dana part number)

$

$

Not available

48

Poulan 003719

Gear, Spur, 25T. (Dana part number)

$

$

Not available

49

Poulan 003868

Gear, Spur, 28T. (Dana part number)

$

$

Not available

50

Poulan 003683

Gear, Spur, 31T. (Dana part number)

$

$

Not available

51

Poulan 001145

Washer, Plain, .632 x 1.00 x .060 (Dana part number)

$

$

Not available

52

Poulan 003191

Seal, Felt (Dana part number)

Note: (Dana part number)

$

$

Not available

53

Poulan 003180

Washer, Plain, .758 x 1.25 x .062 (Dana part number)

$

$

Not available

54

Poulan 003880

Axle, L.H. (Dana part number)

$

$

Not available

55

Poulan 530003780

Gear, Miter, 15T.

$

$

Not available

56

Poulan 003656

Ring, Retaining (Dana part number)

$

$

Not available

57

Poulan 003839

Gear, Spur, 32T. (Dana part number)

$

$

Not available

58

Poulan 003919

Shaft, Cross (Dana part number)

$

$

Not available

59

Poulan 530003781

Gear, Miter, 15T.

$

$

Not available

60

Poulan 003881

Axle, R.H. (Dana part number)

$

$

Not available

61

Poulan 003864

Housing, Lower (Dana part number)

$

$

Not available

62

Poulan 003920

Puck, Friction (Dana part number)

$

$

Not available

63

Poulan 003276

Disc, Brake (Dana part number)

$

$

Not available

64

Poulan 003758

Spacer (Dana part number)

$

$

Not available

65

Poulan 003916

Jaw, Brake (Dana part number)

$

$

Not available

66

Poulan 003843

Pin, Dowel (Dana part number)

$

$

Not available

67

Poulan 003915

Screw, Tapping, 5/16-18 x 2.25 Lg. (Dana part number)

$

$

Not available

68

Poulan 530003768

Lever, Actuating

$

$

Not available

69

Poulan 530003760

Washer, Plain, ..321 x 1.00 x .055

$

$

Not available

70

Poulan 003917

Bracket, Anti-Rotation (Dana part number)

$

$

Not available

71

Poulan 003847

Nut, Lock, 5/16-24 (Dana part number)

$

$

Not available

72

Poulan 003724

Screw, Tapping, 5/16-18 x 1.44 Lg. (Dana part number)

$

$

Not available

73

Poulan 530003906

Washer, Plain, .343 x .81 x .059

$

$

Not available

74

Poulan 003907

Puck, Friction (Dana part number)

$

$

Not available

75

Poulan 004300

Grease (Dana part number)

$

$

Not available
