XC 1120B - Poulan Pro Lawn Tractor STEERING AND FRONT AXLE Parts Diagram

Lawn Tractor

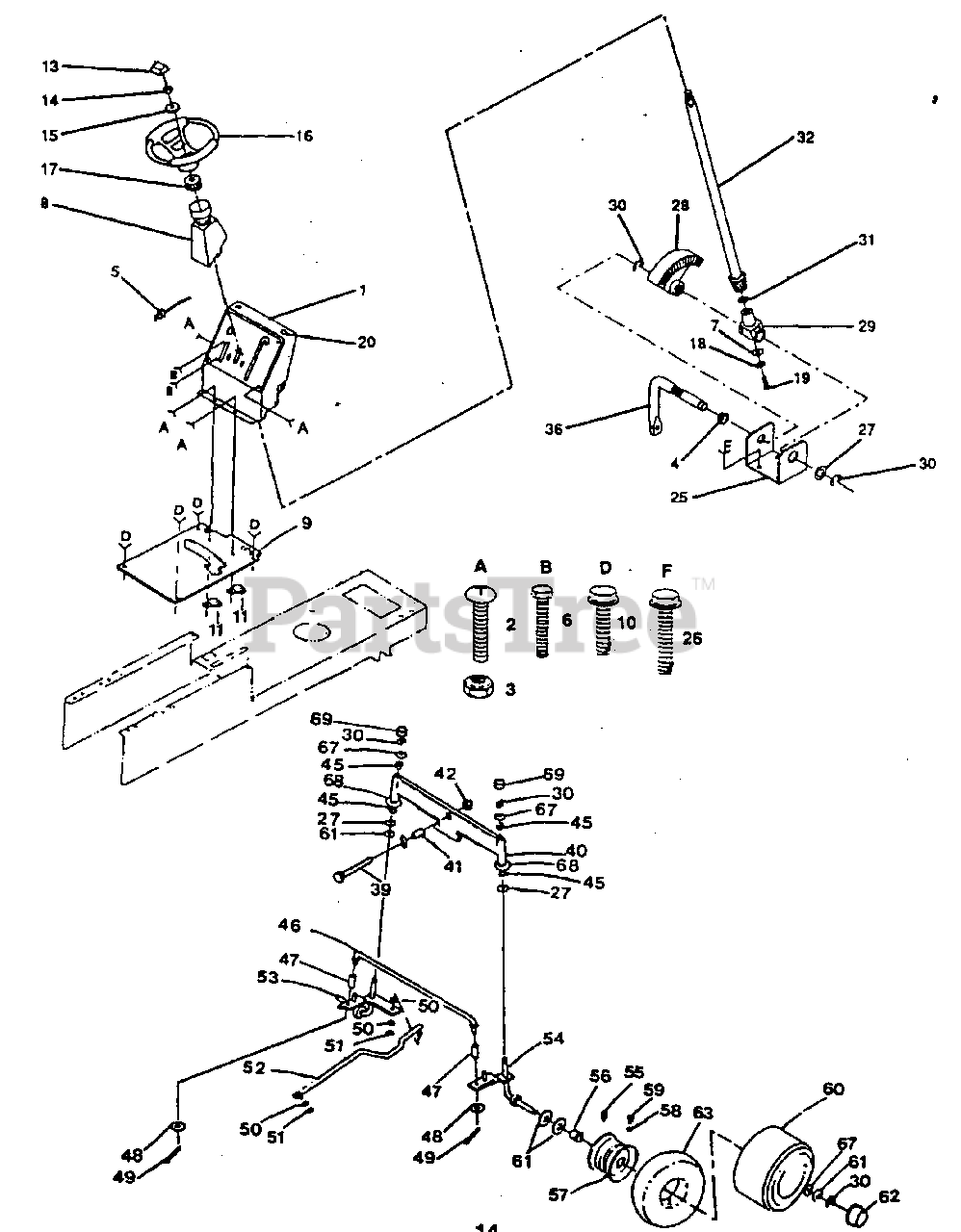

STEERING AND FRONT AXLE Parts Diagram

  • Title

1

Poulan 123042X013

Dash

$39.99

$

Usually ships in 3-10 days

0

2

Poulan 74180512

Screw, Truss Head 5/16-18 x 3/4
(Superseded to 874180512)

$

$

Not available

3

Poulan 73510500

Nut, Keps 5/16 - 18

$2.99

$

Usually ships in 3-10 days

0

4

Poulan 109816X

Nyliner, Snap-in
(Superseded to 532109816)

$6.49

$

In Stock, only 2 left!

0

5

Poulan 124426X

Control, Throttle (AYP part number)

$

$

Not available

6

Poulan 17720410

Screw, Hex, Thread Cutting 1/4 - 20 x 5/8 TY23

$2.99

$

Usually ships in 3-10 days

0

7

Poulan 126684X

Washer 5/8 x 1/4 x 16 Ga. (AYP part number)

$

$

Not available

8

Poulan 124418X

Boot, Steering
(Superseded to 583669801)

$

$

Not available

9

Poulan 124464X012

Saddle

$

$

Not available

10

Poulan 17490608

Screw, Hex, Washer Head Thread Rolling 3/8-16 x 1/2
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 02751R

Clip, Insulated (AYP part number)

$

$

Not available

12

Poulan 19212010

Washer

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 100710L

Insert, Steering Wheel

$

$

Not available

14

Poulan 73940800

Locknut, Hex, Jam 1/2 - 20
(Superseded to 873940800)

$7.49

$

In Stock, only 4 left!

0

15

Poulan 100712K

Washer

$

$

Not available

16

Poulan 100713N

Wheel, Steering (AYP part number)

$

$

Not available

17

Poulan 100711L

Adapter, Steering Wheel
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

18

Poulan 10040400

Lockwasher 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

19

Poulan 71070410

Screw, Socket Hex 1/4 x 20 x 5/8 (AYP part number)
(Superseded to 71070510)

$

$

Not available

20

Poulan 126938X

Bumper, Hood

$

$

Not available

25

Poulan 124036X

Bracket, Steering
(Superseded to 532124036)

$

$

Not available

26

Poulan 17490612

Screw, Hex Washer Head, Thread Rolling 3/8- 16 x 3/4 Type TT
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

27

Poulan 6266H

Bearing, Thrust
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

28

Poulan 124034X

Gear, Sector (AYP part number)

$

$

Not available

29

Poulan 124035X

Shaft, Support (AYP part number)
(Superseded to 532160395)

$10.99

$

In Stock, Qty 8

0

30

Poulan 12000029

Ring, Klip
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 57079

Washer
(Superseded to 532057079)

$6.49

$

In Stock, Qty 11

0

32

Poulan 532128752

Shaft, Steering (AYP part number)

$

$

Not available

36

Poulan 124033X

Shaft, Pitman (AYP part number)

$

$

Not available

39

Poulan 74761060

Bolt, Hex 5/8-11 x 3-3/4
(Superseded to 874761060)

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 105669X

Axle, Front
(Superseded to 108075X)

$

$

Not available

41

Poulan 532110438

Spacer, Bearing, Front Axle (AYP part number)
(Superseded to 532155134)

$

$

Not available

42

Poulan 73901000

Locknut, Flange 5/8-11
(Superseded to 583612401)

$3.49

$

Usually ships in 3-10 days

0

45

Poulan 03366R

Bearing (AYP part number)

$

$

Not available

46

Poulan 105715X

Rod, Tie

$

$

Not available

47

Poulan 120754X

Bushing (AYP part number)

$

$

Not available

48

Poulan 19131416

Washer 13/32 x 7/8 x 16 Ga. (AYP part number)
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

49

Poulan 76020412

Pin, Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

50

Poulan 10040600

Washer, Lock 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

51

Poulan 73610600

Nut, Hex 3/8 - 24
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Poulan 124032X

Link, Drag (AYP part number)

$

$

Not available

53

Poulan 105656X

Spindle, L.H.

$

$

Not available

54

Poulan 130524

Spindle, R.H.

$

$

Not available

55

Poulan 278H

Fitting, Grease
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

56

Poulan 9040H

Bearing, Flange
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

57

Poulan 106732X416

Rim, 6", Front (Inc. 2 Each Key No. 56) (AYP part number)

$

$

Not available

58

Poulan 59192

Cap, Valve
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

59

Poulan 65139

Stem, Valve
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

60

Poulan 124157X

Tire (AYP part number)

$

$

Not available

61

Poulan 121749X

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

62

Poulan 104757X

Cap, Axle (AYP part number)
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0

63

Poulan 59904

Tube, Front (not furnished with tractor)
(Superseded to 532059904)

$37.99

$

In Stock, Qty 7

0

67

Poulan 121748X

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

68

Poulan 19272016

Washer 27/32 x 1-1/4 x 16 Ga.
(Superseded to 819272016)

$6.49

$

In Stock, only 2 left!

0

69

Poulan 121232X

Cap, Spindle
(Superseded to 532121232)

$4.99

$

In Stock, Qty 9

0

Poulan 124234X

Decal, Steering Wheel (AYP part number)

$

$

Not available

Poulan 109821X

Decal, Instruction, Operating (AYP part number)

$

$

Not available
