XC 1120B - Poulan Pro Lawn Tractor LIFT ADJUSTMENT Parts Diagram

Lawn Tractor

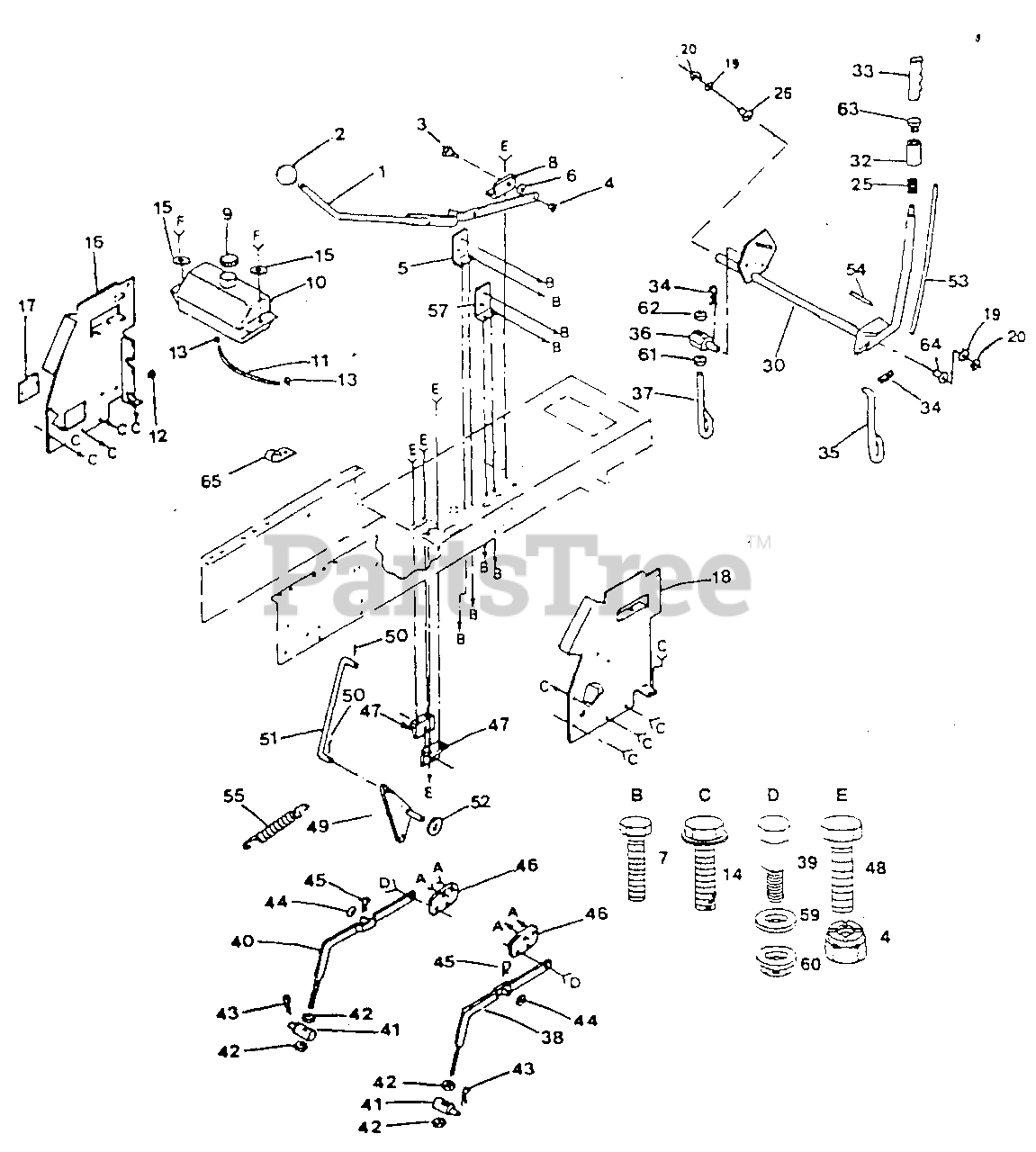

LIFT ADJUSTMENT Parts Diagram

  • Title

1

Poulan 124429X

Handle, Clutch, Mower (AYP part number)

$

$

Not available

2

Poulan 106932X

Knob
(Superseded to 532106932)

$7.99

$

In Stock, Qty 5

0

3

Poulan 106451X

Bolt, Shoulder
(Superseded to 532106451)

$2.99

$

Usually ships in 3-10 days

0

4

Poulan 73680600

Nut, Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 106452X

Bracket, Switch, Interlock

$

$

Not available

6

Poulan 19171516

Washer 17/32 x 15/16 x 16 Ga.

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 17021008

Screw, Hex, Tapping, #10-24 x 1/2

$

$

Not available

8

Poulan 106447X

Support, Lever, Clutch

$

$

Not available

9

Poulan 123549X

Cap, Fuel (AYP part number)
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

10

Poulan 109202X

Tank, Fuel (AYP part number)
(Superseded to 532184900)

$45.99

$

Usually ships in 3-10 days

0

11

Poulan 8548R

Line, Fuel
(Superseded to 532008548)

$7.99

$

In Stock, only 1 left!

0

12

Poulan 9151R

Grommet
(Superseded to 532009151)

$

$

Not available

13

Poulan 123487X

Clamp, Hose
(Superseded to 532123487)

$7.49

$

In Stock, only 1 left!

0

14

Poulan 17490612

Screw, Hex, Washer Head, Thread Rolling 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 19131612

Washer 13/32 x 1 x 12 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 122795X

Panel, Dash, L.H.

$5.99

$

Usually ships in 3-10 days

0

17

Poulan 121794X

Cover, Access

$

$

Not available

18

Poulan 124031X

Panel, Dash, R.H. (AYP part number)

$

$

Not available

19

Poulan 19211416

Washer 21/32 x 7/8 x 16 Ga. (AYP part number)
(Superseded to 819212016)

$6.49

$

Usually ships in 3-10 days

0

20

Poulan 12000002

E-Ring (AYP part number)

$

$

Not available

25

Poulan 122512X

Spring (AYP part number)

$

$

Not available

30

Poulan 122507X

Shaft, Lift (AYP part number)

$

$

Not available

32

Poulan 122364X

Plunger (AYP part number)

$

$

Not available

33

Poulan 109413X

Grip, Handle
(Superseded to 532109413)

$7.99

$

In Stock, only 1 left!

0

34

Poulan 4939M

Retainer, Spring (AYP part number)

$

$

Not available

35

Poulan 110029X

Link, Lift

$

$

Not available

36

Poulan 110447X

Trunnion, Lift (AYP part number)

$

$

Not available

37

Poulan 110448X

Link, Lift, Adjustable
(Superseded to 532110448)

$7.99

$

Usually ships in 3-10 days

0

38

Poulan 121598X

Arm, Suspension, R.H.
(Superseded to 532121598)

$

$

Not available

39

Poulan 105848X

Bolt, Shoulder 3/8-16

$

$

Not available

40

Poulan 121599X

Arm, Suspension, L.H.

$

$

Not available

41

Poulan 106308X

Trunnion, Lift, Lower (AYP part number)

$

$

Not available

42

Poulan 73220800

Nut, Hex 1/2 - 13 (AYP part number)
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

43

Poulan 9135R

Retainer, Spring
(Superseded to 532009135)

$4.99

$

Usually ships in 3-10 days

0

44

Poulan 19171516

Washer 17/32 x 15/16 x 16 Ga.

$2.49

$

Usually ships in 3-10 days

0

45

Poulan 4921H

Retainer, Spring
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

47

Poulan 106444X

Bracket, Bellcrank

$

$

Not available

48

Poulan 74760612

Bolt, Hex 3/8-16 x 3/4 (AYP part number)

$

$

Not available

49

Poulan 109728X

Bellcrank Assembly

$

$

Not available

50

Poulan 76020412

Pin, Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

51

Poulan 124444X

Rod, Clutch, Primary (AYP part number)

$

$

Not available

52

Poulan 19131410

Washer 13/32 x 7/8 x 10 Ga.
(Superseded to 819131410)

$1.99

$

Usually ships in 3-10 days

0

53

Poulan 122514X

Rod, Lever, Lift (AYP part number)

$

$

Not available

54

Poulan 105767X

Pin, Groove
(Superseded to 532105767)

$6.49

$

In Stock, only 3 left!

0

55

Poulan 124446X

Spring, Extension (AYP part number)

$

$

Not available

57

Poulan 108236X

Bracket, Switch
(Superseded to 532108236)

$2.99

$

Usually ships in 3-10 days

0

59

Poulan 110739X

Washer, Spring
(Superseded to 532110739)

$4.99

$

Usually ships in 3-10 days

0

60

Poulan 73980600

Locknut, Flange 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

61

Poulan 73360700

Nut, Hex Jam 7/16-20
(Superseded to 873610700)

$7.49

$

Usually ships in 3-10 days

0

62

Poulan 73710700

Nut, Crownlock 7/16-20

$2.99

$

Usually ships in 3-10 days

0

63

Poulan 124526X

Button, Plunger (AYP part number)

$

$

Not available

64

Poulan 120183X

Bearing, Nylon
(Superseded to 532120183)

$6.99

$

In Stock, only 4 left!

0

65

Poulan 5320R

Clip, Insulated
(Superseded to 532005320)

$5.99

$

Usually ships in 3-10 days

0
