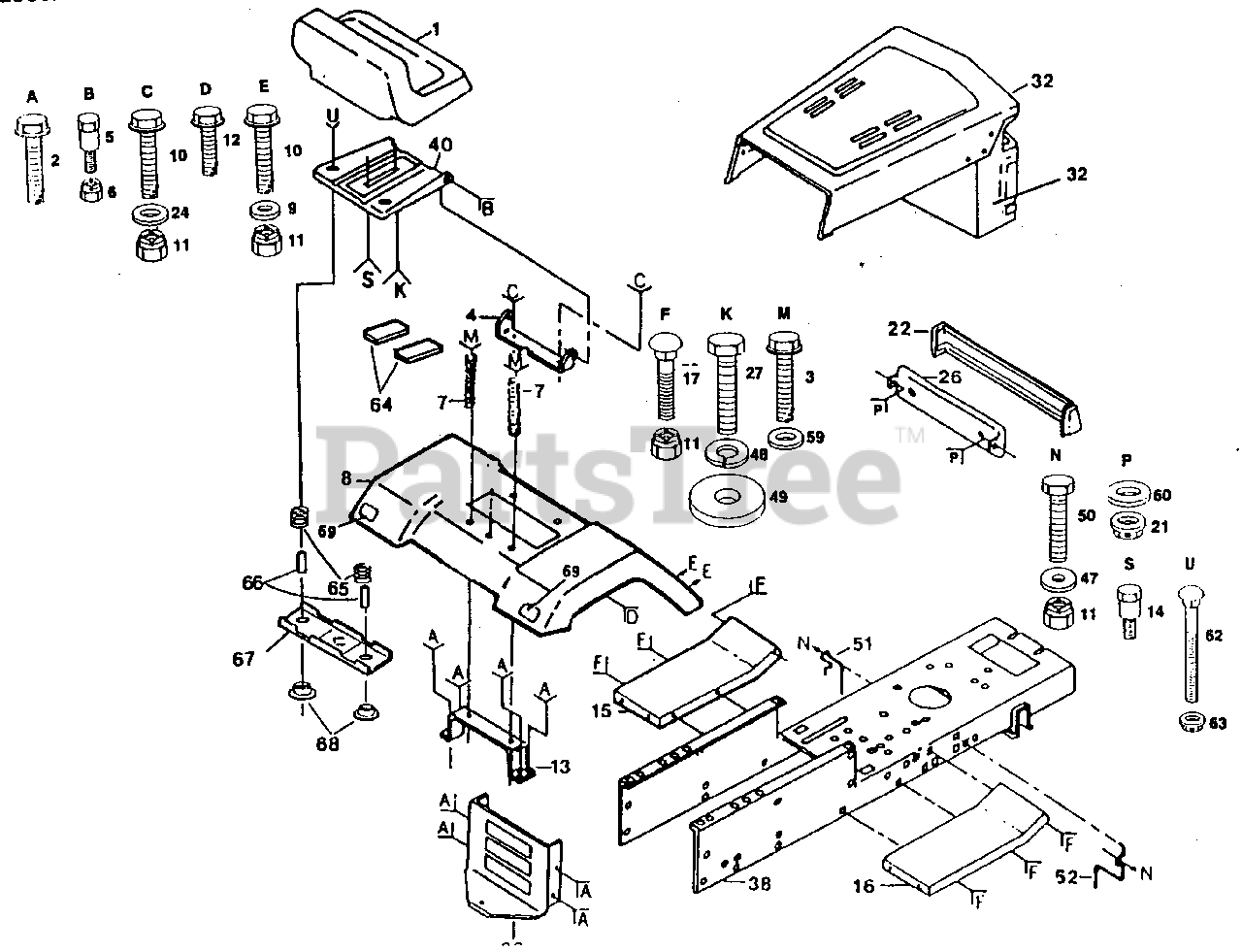

XC 1120B - Poulan Pro Lawn Tractor ENCLOSURE Parts Diagram

Lawn Tractor

ENCLOSURE Parts Diagram

  • Title

1

Poulan 127427

Seat (AYP part number)

$

$

Not available

2

Poulan 17490612

Screw, Hex, Washer Thread Rolling 3/8 - 16 x 3/4 Type TT
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

3

Poulan 17490616

Screw, Hex, Washer Thread Rolling 3/8 -16 x 1
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

4

Poulan 126656X

Bracket, Plvot, Seat (AYP part number)

$

$

Not available

5

Poulan 105529X

Bolt, Shoulder 5/16 - 18 (AYP part number)
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

6

Poulan 73680500

Nut, Crownlock 5/16 - 18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

7

Poulan 124181X

Spring, Seat
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Poulan 109872X421

Fender

$

$

Not available

9

Poulan 19131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

10

Poulan 74760612

Bolt, Hex, Washer Thread Rolling 3/8 (AYP part number)

$

$

Not available

11

Poulan 73680600

Nut, Crownlock 3/8 - 16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 17490608

Screw, Hex, Washer Thread Rolling 3/8 - 16 x 12
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 109873X

Bracket, Fender (AYP part number)

$

$

Not available

14

Poulan 127018X

Bolt, Shoulder
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

15

Poulan 105476X421

Footrest, L.H.

$

$

Not available

16

Poulan 105475X421

Footrest, R.H.

$

$

Not available

17

Poulan 72140606

Bolt, Carriage 3/8 - 16 x 3/4
(Superseded to 872140606)

$

$

Not available

21

Poulan 108067X

Pal Nut 1/4 - 20

$

$

Not available

22

Poulan 124400X

Lens (AYP part number)

$

$

Not available

24

Poulan 19131210

Washer 13/32 x 3/4 x 10 Ga.

$0.99

$

Usually ships in 3-10 days

0

26

Poulan 110897X

Bezel (AYP part number)

$

$

Not available

27

Poulan 74780814

Bolt, Hex 1/2 - 13 x 7/8 Gr. 5 (AYP part number)
(Superseded to 871110814)

$10.99

$

Usually ships in 3-10 days

0

32

Poulan 126349X421

Hood and Grill Assembly

$110.99

$

Usually ships in 3-10 days

0

38

Poulan 127168X

Chassls Assembly

$

$

Not available

39

Poulan 121306X

Drawbar
(Superseded to 127866)

$

$

Not available

40

Poulan 124294X

Pan, Seat (AYP part number)

$

$

Not available

47

Poulan 19132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

48

Poulan 10040800

Washer, Lock 1/2
(Superseded to 810040800)

$6.99

$

Usually ships in 3-10 days

0

49

Poulan 19171912

Washer 17/32 x 1-3/16 x 12 Ga.
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

50

Poulan 74760616

Bolt, Hex 3/8 - 16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

51

Poulan 121440X

Gulde, Belt, Lower, Englne Pulley, L.H.
(Superseded to 532121440)

$

$

Not available

52

Poulan 121441X

Gulde, Belt, Lower, Englne Pulley, R.H.
(Superseded to 131402)

$

$

Not available

59

Poulan 19131614

Washer 13/32 x 1 x 14 Ga. (AYP part number)
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

60

Poulan 19091216

Washer 9/32 x 3/4 x 16 Ga.
(Superseded to 819091216)

$4.99

$

In Stock, only 2 left!

0

62

Poulan 72170410

Bolt, Carriage 1/4 - 20 x 1-1/4
(Superseded to 872170410)

$4.99

$

Usually ships in 3-10 days

0

63

Poulan 123976X

Nut, Hex Flange 1/4 - 20 (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

64

Poulan 121251X

Strip, Foam

$

$

Not available

65

Poulan 121250X

Spring, Compression
(Superseded to 532121250)

$7.49

$

Usually ships in 3-10 days

0

66

Poulan 121249X

Spacer, Split
(Superseded to 532121249)

$6.49

$

In Stock, only 2 left!

0

67

Poulan 121246X

Bracket, Switch Mount
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

68

Poulan 121248X

Bushing, Snap
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

69

Poulan 106202X

Reflector, Tail

$

$

Not available

Poulan 125710X

Decal, Fender (AYP part number)

$

$

Not available

Poulan 101892X

Decal, Clutch/Brake

$

$

Not available

Poulan 109199X

Decal, V-Belt Ground Drive (AYP part number)
(Superseded to 582965201)

$4.99

$

Usually ships in 3-10 days

0

Poulan 109823X

Decal, Caution (AYP part number)

$

$

Not available

Poulan 125883X

Decal, Hood, L.H. (AYP part number)

$

$

Not available

Poulan 125882X

Decal, Hood, R.H. (AYP part number)

$

$

Not available
