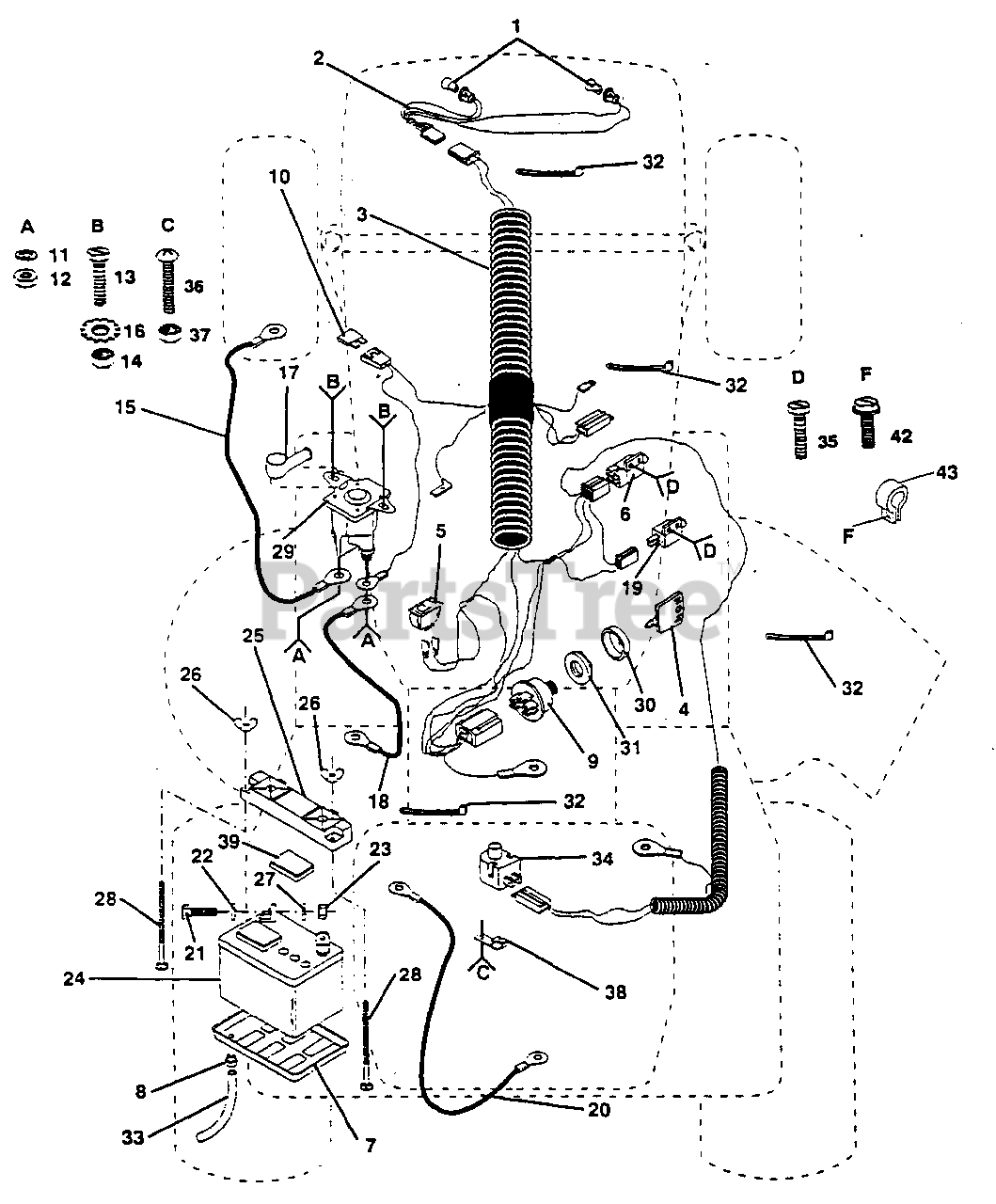

XC 1120B - Poulan Pro Lawn Tractor ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Poulan 7662J

Bulb, Light
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

2

Poulan 124108X

Harness, Light Socket (AYP part number)

$

$

Not available

3

Poulan 124904X

Harness, Ignition

$

$

Not available

4

Poulan 122147X

Key, Molded
(Superseded to 532122147)

$

$

Not available

5

Poulan 110712X

Switch, Light
(Superseded to 532110712)

$9.49

$

In Stock, only 4 left!

0

6

Poulan 104445X

Switch, Interlock
(Superseded to 532104445)

$17.99

$

In Stock, only 1 left!

0

7

Poulan 7603J

Tray, Battery
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

8

Poulan 109596X

Clamp, Hose
(Superseded to 532109596)

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 4406R

Switch, Ignition (AYP part number)

$

$

Not available

10

Poulan 108824X

Fuse
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 10090400

Washer, Lock 1/4 (AYP part number)

$

$

Not available

12

Poulan 73350400

Nut, Hex Jam 1/4 - 20

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 74780408

Bolt, Hex 1/4 - 20 x 1/2 Grade 5

$1.49

$

Usually ships in 3-10 days

0

14

Poulan 73510400

Nut, Keps 1/4 - 20
(Superseded to 873640400)

$

$

Not available

15

Poulan 2955J

Cable Assembly

$

$

Not available

16

Poulan 11050400

Washer, Lock, Ext. Tooth 1/4

$2.49

$

Usually ships in 3-10 days

0

17

Poulan 154336

Cover, Terminal
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

18

Poulan 5114J

Cable, Battery

$

$

Not available

19

Poulan 109553X

Switch, Interlock
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

20

Poulan 5907J

Cable, Battery (AYP part number)

$

$

Not available

21

Poulan 74760412

Bolt, Hex 1/4 - 20 x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

22

Poulan 19091016

Washer 9/32 - 5/8 x 16 Gauge
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

23

Poulan 73220400

Nut, Hex 1/4 - 20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

24

Poulan 121265X

Battery (AYP part number)

$

$

Not available

25

Poulan 102476X

Guard, Terminal (AYP part number)

$

$

Not available

26

Poulan 123198X

Nut, Wing 1/4 - 20 (AYP part number)
(Superseded to 146525)

$

$

Not available

27

Poulan 10040400

Washer, Lock, Heavy Helical Spring
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

28

Poulan 72240460

Bolt, Carriage 1/4 - 20 x 7-1/2
(Superseded to 872240460)

$6.49

$

Usually ships in 3-10 days

0

29

Poulan 109081X

Solenoid (AYP part number)

$

$

Not available

30

Poulan 109787X

Bezel, Ignition (AYP part number)

$

$

Not available

31

Poulan 109788X

Nut, Ignition (AYP part number)

$

$

Not available

32

Poulan 7192J

Cable Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

33

Poulan 105687X

Tube, Battery Tray (AYP part number)

$

$

Not available

34

Poulan 121305X

Switch, Seat
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

35

Poulan 17021008

Screw, Hex Tapping #10 - 24 UNC x 1/2

$

$

Not available

36

Poulan 74641008

Screw, Slotted Pan Head #10 - 32 x 1/2 (AYP part number)

$

$

Not available

37

Poulan 73951000

Nut, Keps #10 - 32 x 1/2

$2.49

$

Usually ships in 3-10 days

0

38

Poulan 4171R

Clip, Insulated

$

$

Not available

39

Poulan 121264X

Caps, Battery

$

$

Not available

42

Poulan 17490608

Screw, Hex Washer Head, Thread Rolling 3/8 x 16 x 1/2
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

43

Poulan 5320R

Clip, Insulated
(Superseded to 532005320)

$5.99

$

Usually ships in 3-10 days

0

Poulan 101539X

Sheet, Instruction, Tractor, 15ø Slope

$

$

Not available

Poulan 128566

Manual, Assembly and Repair Parts (AYP part number)

$

$

Not available

Poulan 127903

Manual, Operator's (AYP part number)

$

$

Not available
