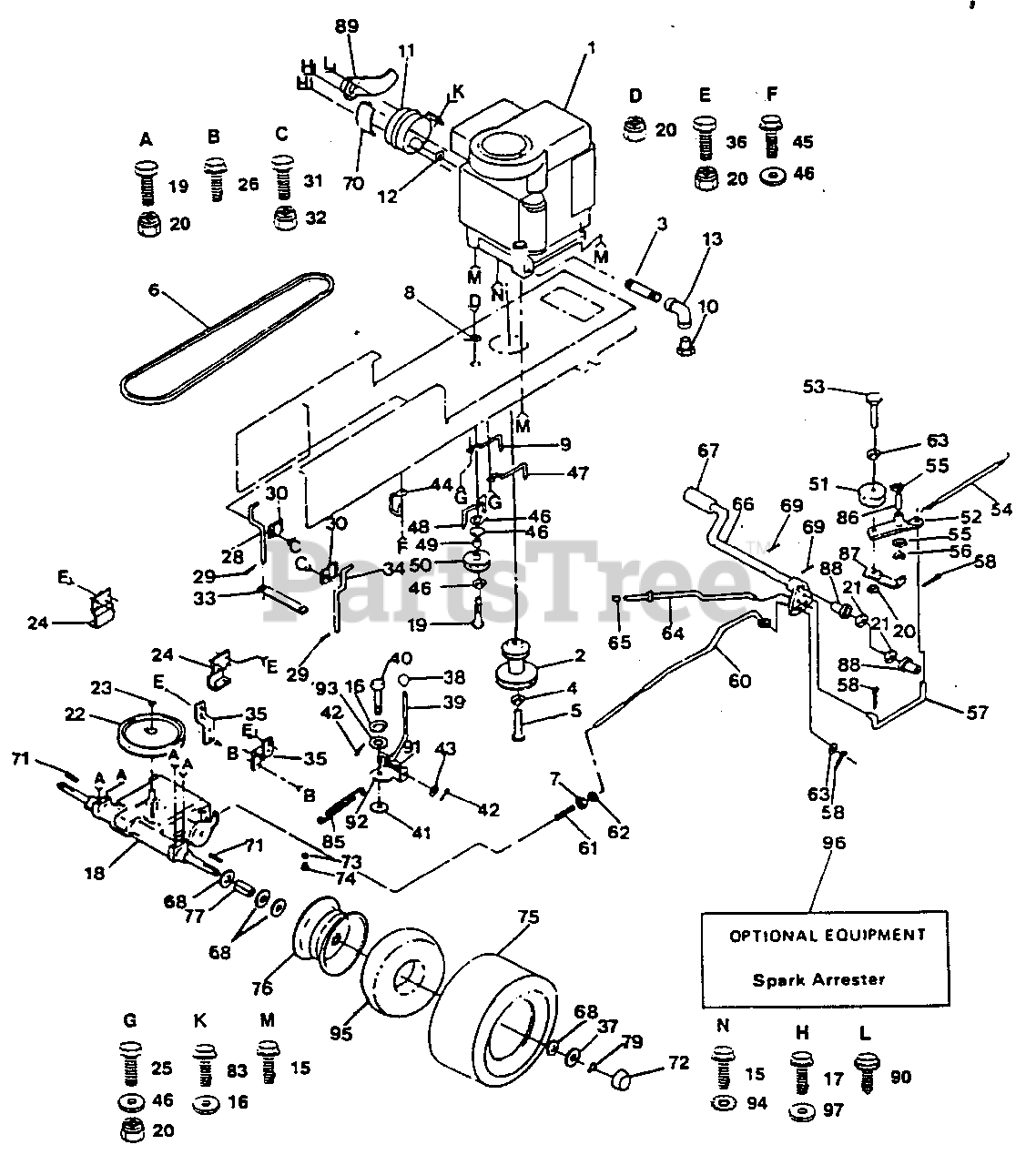

XC 1120B - Poulan Pro Lawn Tractor DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

1

Poulan 124136X

Engine 12 HP, Briggs & Stratton Model No. 281707, Type No. 0412-01 (AYP part number)

$

$

Not available

2

Poulan 105731X

Pulley, Engine (AYP part number)

$

$

Not available

3

Poulan 13280324

Nipple, Pipe

$

$

Not available

4

Poulan 10040700

Washer, Lock 7/16
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

5

Poulan 71130720

Bolt, Hex 7/16-20 x 1-1/4 (AYP part number)
(Superseded to 874780720)

$6.99

$

Usually ships in 3-10 days

0

6

Poulan 125907X

V-Belt, Drive
(Superseded to 532125907)

$39.99

$

In Stock, Qty 9

0

7

Poulan 73800600

Locknut, Hex 3/8-16 UNC ZN
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 02751R

Clip, Fuel Line (AYP part number)

$

$

Not available

9

Poulan 121218X

Keeper, Belt, Engine

$

$

Not available

11

Poulan 101273X

Muffler (AYP part number)

$

$

Not available

12

Poulan 125593X

Gasket (AYP part number)

$

$

Not available

13

Poulan 13200300

Elbow
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

15

Poulan 17490620

Screw, Hex, Washer Thread Rolling 3/8-16 x 1-1/4
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

16

Poulan 10040400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

17

Poulan 74780556

Bolt, Hex. Fin 5/16 - 18 UNC x 3-3/8
(Superseded to 583614601)

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 120898X

Transaxle Foote, 6 Speed, Model No. 4360-7 (AYP part number)

$

$

Not available

19

Poulan 74760644

Bolt, Hex 3/8-16 x 2-3/4
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

20

Poulan 73680600

Nut, Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 19211616

Washer 21/32 x 1 x 16 Ga
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

22

Poulan 123666X

Pulley, Transaxle
(Superseded to 532123666)

$45.99

$

In Stock, only 1 left!

0

23

Poulan 12000028

Ring, Retainer (AYP part number)

$0.99

$

Usually ships in 3-10 days

0

24

Poulan 109167X

Bracket, Transaxle

$

$

Not available

25

Poulan 74760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 17490512

Screw, Hex Washer Thread Rolling 5/16-18 x 3/4
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

28

Poulan 123662X

Keeper, Belt, L.H.

$

$

Not available

29

Poulan 4921H

Retainer, Spring
(Superseded to 532004921)

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 106190X

Clamp

$

$

Not available

31

Poulan 74760512

Bolt, Hex 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

32

Poulan 73680500

Nut, Crownlock 5/16-18 x 3/4
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

33

Poulan 123770X

Strap, Locator

$

$

Not available

34

Poulan 123663X

Keeper, Belt, R.H.

$

$

Not available

35

Poulan 121520X

Strap, Torque, Transaxle
(Superseded to 532121520)

$7.99

$

In Stock, only 3 left!

0

36

Poulan 74760612

Bolt, Hex 3/8-16 x 3/4 (AYP part number)

$

$

Not available

37

Poulan 121748X

Washer, 25132 x 1-5/8 x 16 Ga.
(Superseded to 532121748)

$4.99

$

In Stock, Qty 10

0

38

Poulan 106933X

Knob, Shift
(Superseded to 532106933)

$7.99

$

In Stock, only 1 left!

0

39

Poulan 124461X

Rod, Shift

$

$

Not available

40

Poulan 71040412

Bolt, Shift Plate (AYP part number)

$

$

Not available

41

Poulan 105701X

Washer, Shift Plate
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

42

Poulan 76020416

Pin, Cotter 1/8 x 1

$2.99

$

Usually ships in 3-10 days

0

43

Poulan 19151216

Washer 15/32 x 3/4 x 16 Ga.

$

$

Not available

44

Poulan 104777X

Belt, Retainer (AYP part number)

$

$

Not available

45

Poulan 17490612

Screw, Hex, Washer Thread Rolling 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

46

Poulan 19131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

47

Poulan 105730X

Keeper, Belt, Engine
(Superseded to 532105730)

$4.99

$

Usually ships in 3-10 days

0

48

Poulan 109070X

Retainer, Belt
(Superseded to 532109070)

$6.49

$

Usually ships in 3-10 days

0

49

Poulan 4470J

Spacer
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

50

Poulan 123674X

Idler, Flat
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

51

Poulan 123766X

Pulley, Idler (AYP part number)

$

$

Not available

52

Poulan 123789X

Arm, Idler

$

$

Not available

53

Poulan 74760624

Bolt, Hex 3/8-16 x 1-1/2 (AYP part number)

$

$

Not available

54

Poulan 105709X

Spring, Return Clutch
(Superseded to 532105709)

$11.99

$

In Stock, Qty 6

0

55

Poulan 110812X

Washer, Hardened

$

$

Not available

56

Poulan 12000039

Ring, Klip
(Superseded to 812000039)

$6.49

$

In Stock, Qty 8

0

57

Poulan 105710X

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

58

Poulan 76020412

Pin, Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

60

Poulan 110437X

Rod, Brake

$

$

Not available

61

Poulan 106888X

Spring, Rod, Brake
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

62

Poulan 73350600

Nut, Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

63

Poulan 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

64

Poulan 125638X

Rod, Brake, Parking (AYP part number)

$

$

Not available

65

Poulan 71673

Cap, Plunger
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

66

Poulan 122424X

Shaft, Foot Pedal (AYP part number)

$

$

Not available

67

Poulan 08883R

Cover, Pedal (AYP part number)

$

$

Not available

68

Poulan 121749X

Washer 25/32 x 1-1/4 x 16
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

69

Poulan 1572H

Pin, Roll 3/16 x 1 (AYP part number)

$

$

Not available

70

Poulan 101159L

Shield, Heat, Muffler
(Superseded to 583638401)

$3.99

$

Usually ships in 3-10 days

0

71

Poulan 123583X

Key, Square 3/16 x 2
(Superseded to 532123583)

$4.99

$

In Stock, only 3 left!

0

72

Poulan 104757X

Cap, Axle (AYP part number)
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0

73

Poulan 59192

Cap, Valve
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

74

Poulan 65139

Stem, Valve
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

75

Poulan 123969X

Tire, Rear
(Superseded to 532126957)

$121.99

$

Usually ships in 3-10 days

0

76

Poulan 106108X416

Rim Assembly, Rear (AYP part number)
(Superseded to 532125122)

$145.99

$

Usually ships in 3-10 days

0

77

Poulan 109502X

Spacer
(Superseded to 532109502)

$

$

Not available

79

Poulan 12000001

E-Ring
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

83

Poulan 74780408

Bolt, Fin Hex 1/4-20 UNC x 1/2

$1.49

$

Usually ships in 3-10 days

0

85

Poulan 110422X

Spring, Brake (AYP part number)

$

$

Not available

86

Poulan 105706X

Bearing
(Superseded to 532105706)

$7.49

$

Usually ships in 3-10 days

0

87

Poulan 123205X

Retainer, Belt
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

88

Poulan 120183X

Bearing, Nylon
(Superseded to 532120183)

$6.99

$

In Stock, only 4 left!

0

89

Poulan 108767X

Deflector, Asm., Muffler
(Superseded to 583655701)

$42.99

$

Usually ships in 3-10 days

0

90

Poulan 17030808

Screw, Spiderlock, Hex HD #8 x 1/2 AB (AYP part number)

$

$

Not available

91

Poulan 105700X

Spring

$

$

Not available

92

Poulan 106919X

Plate, Shift

$

$

Not available

93

Poulan 19091210

Washer 9/32 x 3/4 x 10 Ga.
(Superseded to 819091210)

$4.99

$

Usually ships in 3-10 days

0

94

Poulan 11050600

Washer, Lock, External Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

95

Poulan 7152J

Tube, Tire (not furnished with tractor)
(Superseded to 532007152)

$74.99

$

Usually ships in 3-10 days

0

96

Poulan 121851X

Spark Arrester (AYP part number)

$

$

Not available

97

Poulan 19111012

Washer, 11/32 x 5/8 x 12 Ga.
(Superseded to 819111012)

$6.49

$

Usually ships in 3-10 days

0

Poulan 120601X

Decal, 12 HP Engine
(Superseded to 532271967)

$9.99

$

Usually ships in 3-10 days

0
