X 750 - Husqvarna Early Entry Saw (2009-06) Wheel Carriage Assembly Parts Diagram

Early Entry Saw

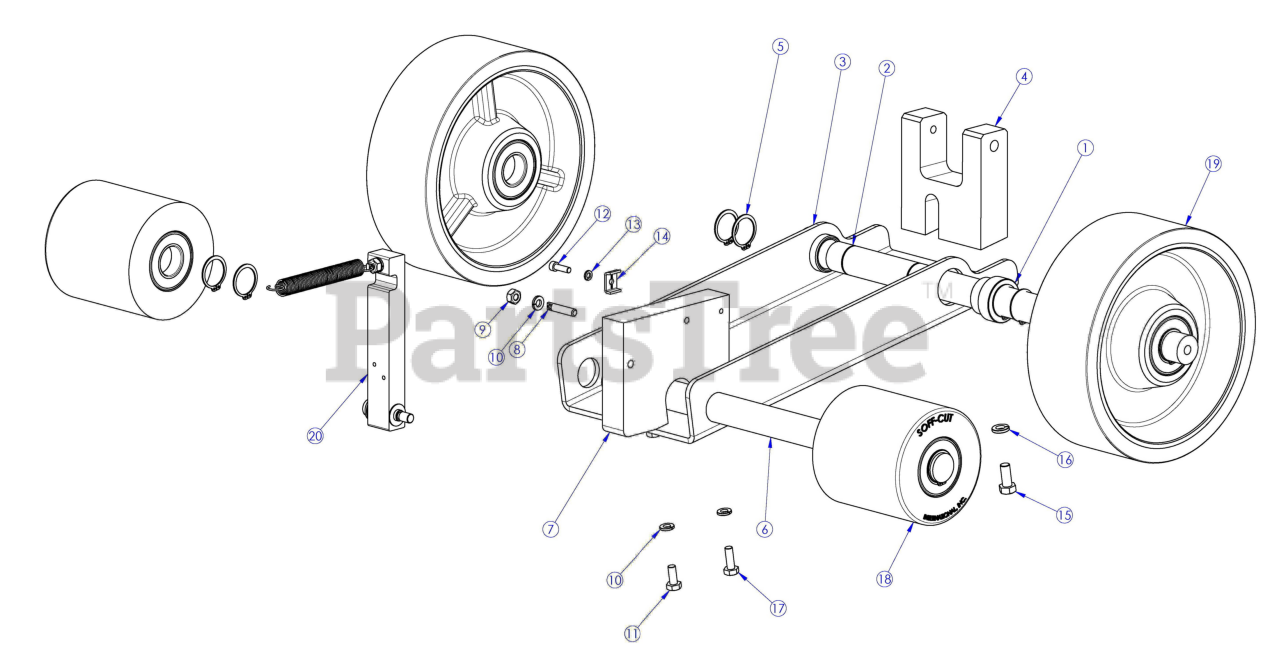

Wheel Carriage Assembly Parts Diagram

  • Title

1

Husqvarna 505655101

Bushing, Axle, Delrin

$42.99

$

Usually ships in 3-10 days

0

2

Husqvarna 510345401

Rear Axle, X750

$

$

Not available

3

Husqvarna 505839601

Frame, Front Wheel

$310.99

$

Usually ships in 3-10 days

0

4

Husqvarna 510345301

Block, Pump Support

$159.99

$

Usually ships in 3-10 days

0

5

Husqvarna 505733401

Snap Ring, Ext 1.000"
(Superseded to 542 20 62-05)

$1.99

$

In Stock, Qty 5

0

6

Husqvarna 510345501

Front Axle, X750

$

$

Not available

7

Husqvarna 510345201

Bracket, Depth Stop

$

$

Not available

8

Husqvarna 505774501

Spring Anchor, 1/4-20 X 1

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 505631901

Nut, 1/4-20 Hex, S.S.

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 505632801

Washer, Split 1/4" S.S.

$3.49

$

In Stock, only 2 left!

0

11

Husqvarna 505627401

HHB 1/4-20 X .625 S.S.

$7.99

$

Usually ships in 3-10 days

0

12

Husqvarna 505729701

Shcs 10-32 X 5/8 S.S.

$3.49

$

In Stock, only 1 left!

0

13

Husqvarna 505633101

Washer, Split #10 S.S.

$3.49

$

In Stock, only 2 left!

0

14

Husqvarna 505648901

Clamp, Metal

$56.99

$

In Stock, Qty 6

0

15

Husqvarna 505821001

HHB 5/16-18 X .75
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 505633001

Washer, Split 5/16" S.S.

$1.99

$

In Stock, Qty 6

0

17

Husqvarna 505627501

HHB 1/4-20 X .75 S.S.

$7.99

$

In Stock, only 2 left!

0

18

Husqvarna 505864401

Wheel Assy, 4"D X 4"W, No Hub

$243.99

$

In Stock, only 1 left!

0

19

Husqvarna 505842601

Wheel Assy, Rear, 8" D X 2.81" W
(Superseded to 505863501)

$251.99

$

Usually ships in 3-10 days

0

20

Husqvarna 510272709

Blade Release Arm

$

$

Not available
