X 750 - Husqvarna Early Entry Saw (2009-06) Pump Assembly Sheet Image 1 Parts Diagram

Early Entry Saw

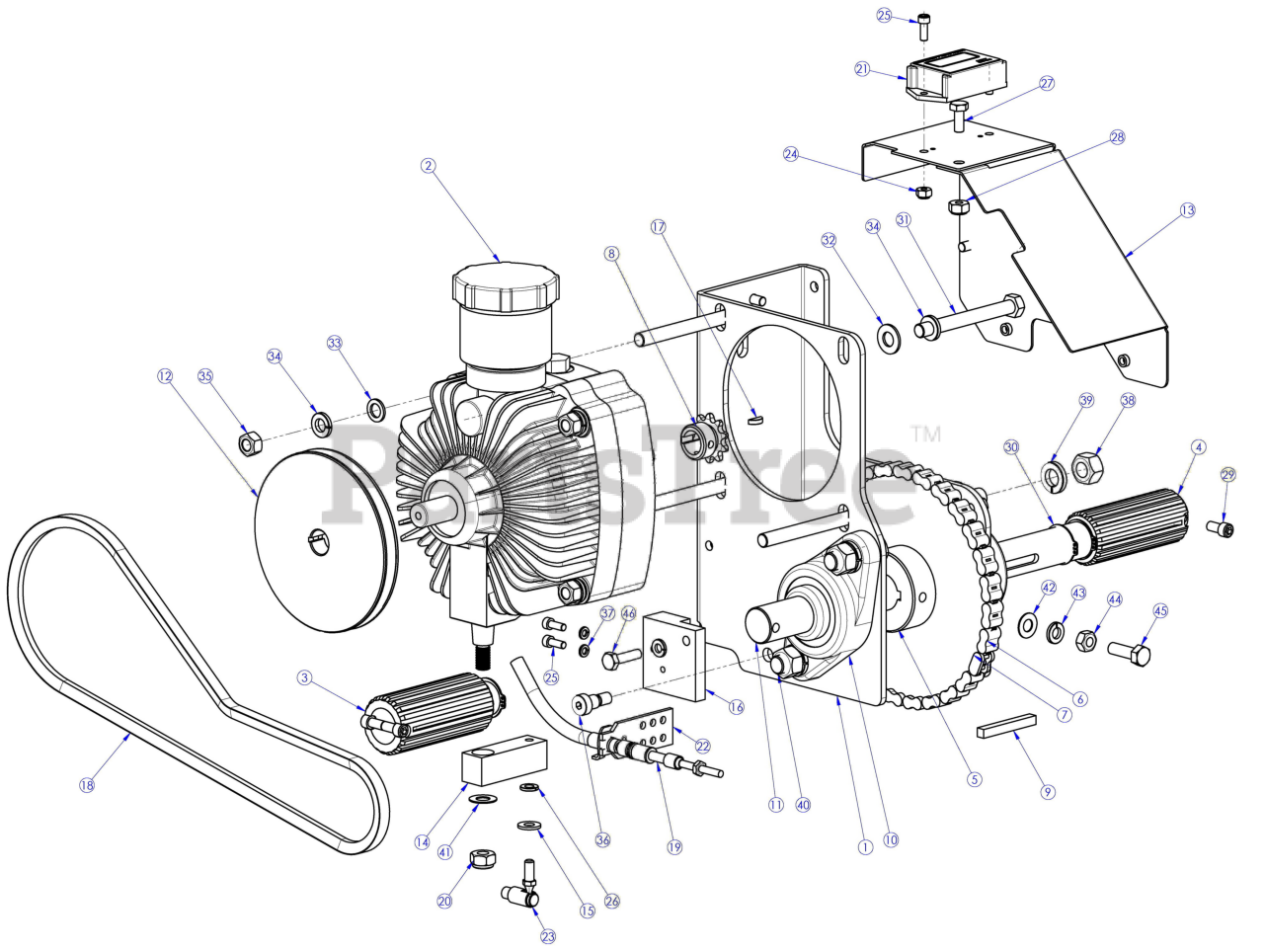

Pump Assembly Sheet Image 1 Parts Diagram

  • Title
1

Husqvarna 505839601

Frame, Pump

$310.99

$

Usually ships in 3-10 days

0

2

Husqvarna 505738301

Hydrostatic Pump

$

$

Not available

3

Husqvarna 505678301

Tube, Driver, Right

$242.99

$

Usually ships in 3-10 days

0

4

Husqvarna 505715201

Tube, Driver, Left

$230.99

$

In Stock, only 1 left!

0

5

Husqvarna 510346601

Sprocket, 54-Tooth

$103.99

$

Usually ships in 3-10 days

0

6

Husqvarna 505739501

Chain, Roller #35

$

$

Not available

7

Husqvarna 505739601

Connecting Link #35

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 505667401

Sprocket, 10T
(Superseded to 587 65 99-01)

$

$

Not available

9

Husqvarna 521895201

Key, 1/4 X 1/4 X 2.00
(Superseded to 539910210)

$7.49

$

In Stock, only 1 left!

0

10

Husqvarna 505689801

Bearing, Flange, 1" Id

$30.99

$

In Stock, only 2 left!

0

11

Husqvarna 510345601

Drive Shaft

$168.99

$

Usually ships in 3-10 days

0

12

Husqvarna 505739801

Sheave, 1/3V 5.00 Od X 17Mm Id

$1152.99

$

Usually ships in 3-10 days

0

13

Husqvarna 505818501

Cover, Pump Assembly

$

$

Not available

14

Husqvarna 505817101

Arm, Speed Control

$81.99

$

Usually ships in 3-10 days

0

15

Husqvarna 505632001

Washer, 1/4" Flat S.S.

$3.49

$

In Stock, only 2 left!

0

16

Husqvarna 510343101

Block, Cable Mount

$59.99

$

Usually ships in 3-10 days

0

17

Husqvarna 505734701

Key, Woodruff, #3
(Superseded to 539 30 07-49)

$1.99

$

Usually ships in 3-10 days

0

18

Husqvarna 505484001

Belt, 3L345

$30.99

$

In Stock, only 1 left!

0

19

Husqvarna 505823001

Cable, Speed Control

$258.99

$

Usually ships in 3-10 days

0

20

Husqvarna 505723401

Nut, Nyloc, 3/8-16
(Superseded to 539976979)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 505814301

Tachometer/Hour Meter

$203.99

$

Usually ships in 3-10 days

0

22

Husqvarna 505823401

Cable Bracket

$63.99

$

Usually ships in 3-10 days

0

23

Husqvarna 505823501

Fitting, Ball Joint

$28.99

$

Usually ships in 3-10 days

0

24

Husqvarna 505822201

Nut, Nyloc, #10-32 S.S.

$1.99

$

In Stock, only 4 left!

0

25

Husqvarna 505729601

Shcs 10-32 X 1/2 S.S.

$3.49

$

In Stock, only 2 left!

0

26

Husqvarna 505632801

Washer, Split 1/4" S.S.

$3.49

$

In Stock, only 2 left!

0

27

Husqvarna 505627401

HHB 1/4-20 X .625 S.S.

$7.99

$

Usually ships in 3-10 days

0

28

Husqvarna 505630501

Nut, Nyloc, 1/4-20 Cad
(Superseded to 539976978)

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 505722301

Shcs 1/4-20 X 1/2 S.S.

$3.49

$

Usually ships in 3-10 days

0

30

Husqvarna 505733401

Snap Ring, Ext 1.000"
(Superseded to 542 20 62-05)

$1.99

$

In Stock, Qty 5

0

31

Husqvarna 505727701

HHB 3/8-16 X 3.5
(Superseded to 539300870)

$

$

Not available

32

Husqvarna 505724601

Washer, 3/8" Flat
(Superseded to 539990517)

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 505724001

Washer, 3/8"X .06"Thk Flat S.S.

$3.49

$

Usually ships in 3-10 days

0

34

Husqvarna 505731001

Washer, Split 3/8" S.S.

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 505732101

Nut, 3/8-16 Hex, Gr5 Zinc
(Superseded to 539990130)

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 505726101

Shsb, 3/8 X 3/8

$9.49

$

In Stock, only 2 left!

0

37

Husqvarna 505633101

Washer, Split #10 S.S.

$3.49

$

In Stock, only 2 left!

0

38

Husqvarna 505733201

Nut, 1/2-13 Hex, Gr5 Zinc
(Superseded to 523 32 77-01)

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 505731101

Washer, Split 1/2" S.S.

$

$

Not available

40

Husqvarna 522442801

HHB 1/2-13 X 1 1/2

$

$

Not available

41

Husqvarna 505724501

Washer, 3/8"X .030"Thk Flat
(Superseded to 505634201)

$7.99

$

In Stock, only 2 left!

0

42

Husqvarna 505725201

Washer, 5/16" Flat S.S.

$3.49

$

In Stock, Qty 5

0

43

Husqvarna 505633001

Washer, Split 5/16" S.S.

$1.99

$

In Stock, Qty 6

0

44

Husqvarna 505732401

Nut, 5/16-18 Hex, S.S.

$1.99

$

Usually ships in 3-10 days

0

45

Husqvarna 505727501

HHB 5/16-18 X 1
(Superseded to 539990209)

$1.99

$

Usually ships in 3-10 days

0

46

Husqvarna 505727301

HHB 1/4-20 X 1 S.S.

$6.49

$

In Stock, only 1 left!

0
