X 750 - Husqvarna Early Entry Saw (2009-06) Guide Arm Assembly Parts Diagram

Early Entry Saw

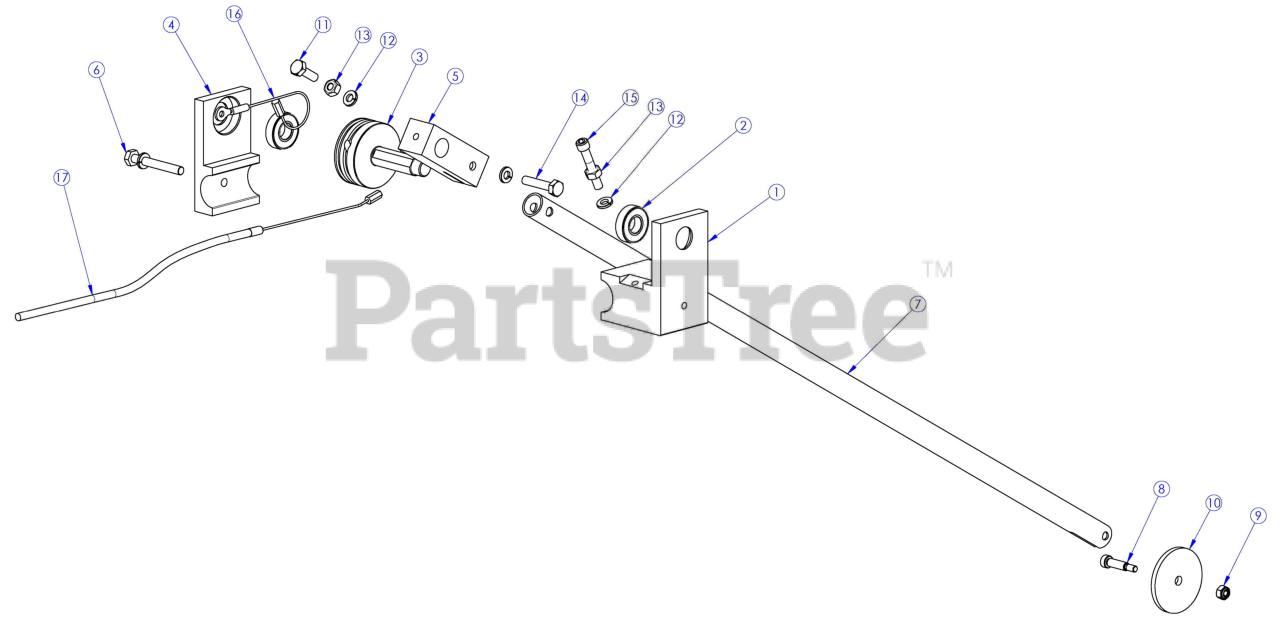

Guide Arm Assembly Parts Diagram

  • Title

1

Husqvarna 510345801

Block, Guide Arm Mount

$161.99

$

Usually ships in 3-10 days

0

2

Husqvarna 505654801

Bearing, .500 Id, R8-2Rs

$19.99

$

Usually ships in 3-10 days

0

3

Husqvarna 505816101

Pulley, Guide Arm

$171.99

$

Usually ships in 3-10 days

0

4

Husqvarna 510345901

Block, Pulley Mount

$120.99

$

Usually ships in 3-10 days

0

5

Husqvarna 505816201

Guide Arm Mounting Block

$92.99

$

Usually ships in 3-10 days

0

6

Husqvarna 505728101

HHB 1/4-20 X 2 S.S. All Thrd

$6.49

$

In Stock, only 3 left!

0

7

Husqvarna 505677301

Tube, Guide Arm

$105.99

$

Usually ships in 3-10 days

0

8

Husqvarna 505725801

Shsb, 1/4 X 3/4

$9.49

$

In Stock, only 1 left!

0

9

Husqvarna 505630401

Nut, Nyloc, #10-24 Cad

$1.99

$

In Stock, Qty 5

0

10

Husqvarna 505614201

Wheel, Guide

$44.99

$

In Stock, only 1 left!

0

11

Husqvarna 505627501

HHB 1/4-20 X .75 S.S.

$7.99

$

In Stock, only 2 left!

0

12

Husqvarna 505632801

Washer, Split 1/4" S.S.

$3.49

$

In Stock, only 2 left!

0

13

Husqvarna 505631901

Nut, 1/4-20 Hex, S.S.

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 505728301

HHB 1/4-20 X 1.25 S.S. All Thrd

$3.49

$

In Stock, only 1 left!

0

15

Husqvarna 505728801

Shcs 1/4-20 X 1 1/2 S.S.

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 505823301

Cable, Guide Arm Return

$24.99

$

Usually ships in 3-10 days

0

17

Husqvarna 505823101

Cable, Guide Arm

$69.99

$

In Stock, only 4 left!

0
