X 750 - Husqvarna Early Entry Saw (2009-06) Blade Idler Assembly Parts Diagram

Early Entry Saw

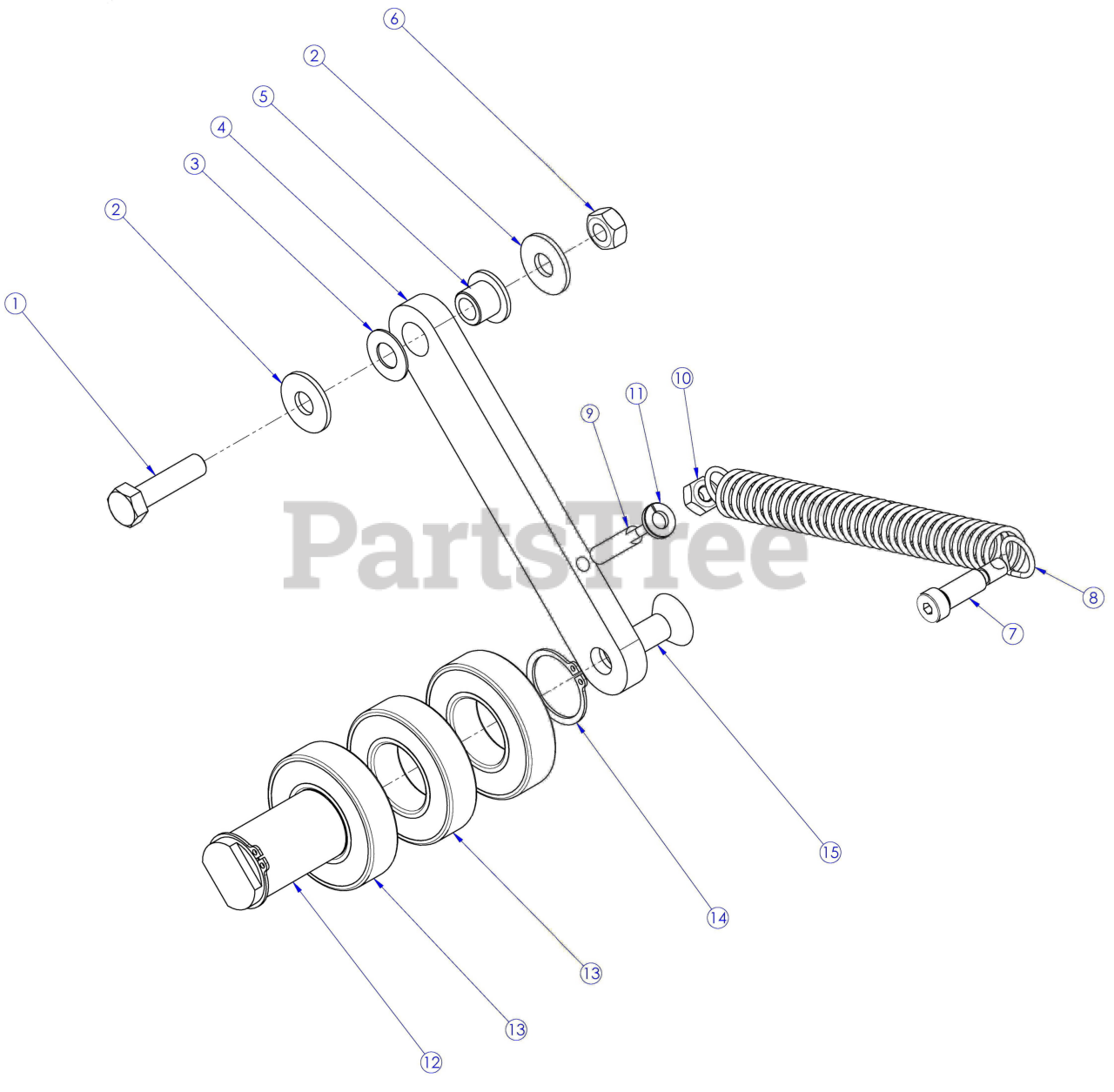

Blade Idler Assembly Parts Diagram

  • Title

1

Husqvarna 505821601

HHB 5/16-24 X 1.25

$7.99

$

Usually ships in 3-10 days

0

2

Husqvarna 505686101

Washer, 5/16" Flat Uss
(Superseded to 541 20 47-80)

$1.99

$

In Stock, only 4 left!

0

3

Husqvarna 505634501

Washer, 3/8" Delrin

$3.49

$

In Stock, only 2 left!

0

4

Husqvarna 505840001

Arm, Belt Tensioner

$109.99

$

Usually ships in 3-10 days

0

5

Husqvarna 505841801

Flanged Bearing

$30.99

$

Usually ships in 3-10 days

0

6

Husqvarna 505732801

Nut, 5/16-24 Hex, Gr5 Zinc

$1.99

$

Usually ships in 3-10 days

0

7

Husqvarna 505726401

Shsb, 5/16 X 3/4

$9.49

$

In Stock, only 2 left!

0

8

Husqvarna 505484101

Spring, Extension

$36.99

$

In Stock, only 1 left!

0

9

Husqvarna 505774501

Spring Anchor, 1/4-20 X

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 505723601

Nut, 1/4-20 Hex, Gr5 Zinc
(Superseded to 505631901)

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 505632801

Washer, Split 1/4" S.S.

$3.49

$

In Stock, only 2 left!

0

12

Husqvarna 505706801

Shaft, Blade Belt Tensioner

$44.99

$

Usually ships in 3-10 days

0

13

Husqvarna 505736301

Bearing, 1.00 Id, R16-2Rs

$21.99

$

In Stock, Qty 6

0

14

Husqvarna 505733401

Snap Ring, Ext 1.000"
(Superseded to 542 20 62-05)

$1.99

$

In Stock, Qty 5

0

15

Husqvarna 510325101

Fhs, 3/8-16 X 1 S.S.

$3.49

$

Usually ships in 3-10 days

0
