X 3000CE (5901960) - Ferris Hurricane Series Stand-On Blower CE Guarding Group Parts Diagram

Hurricane Series Stand-On Blower

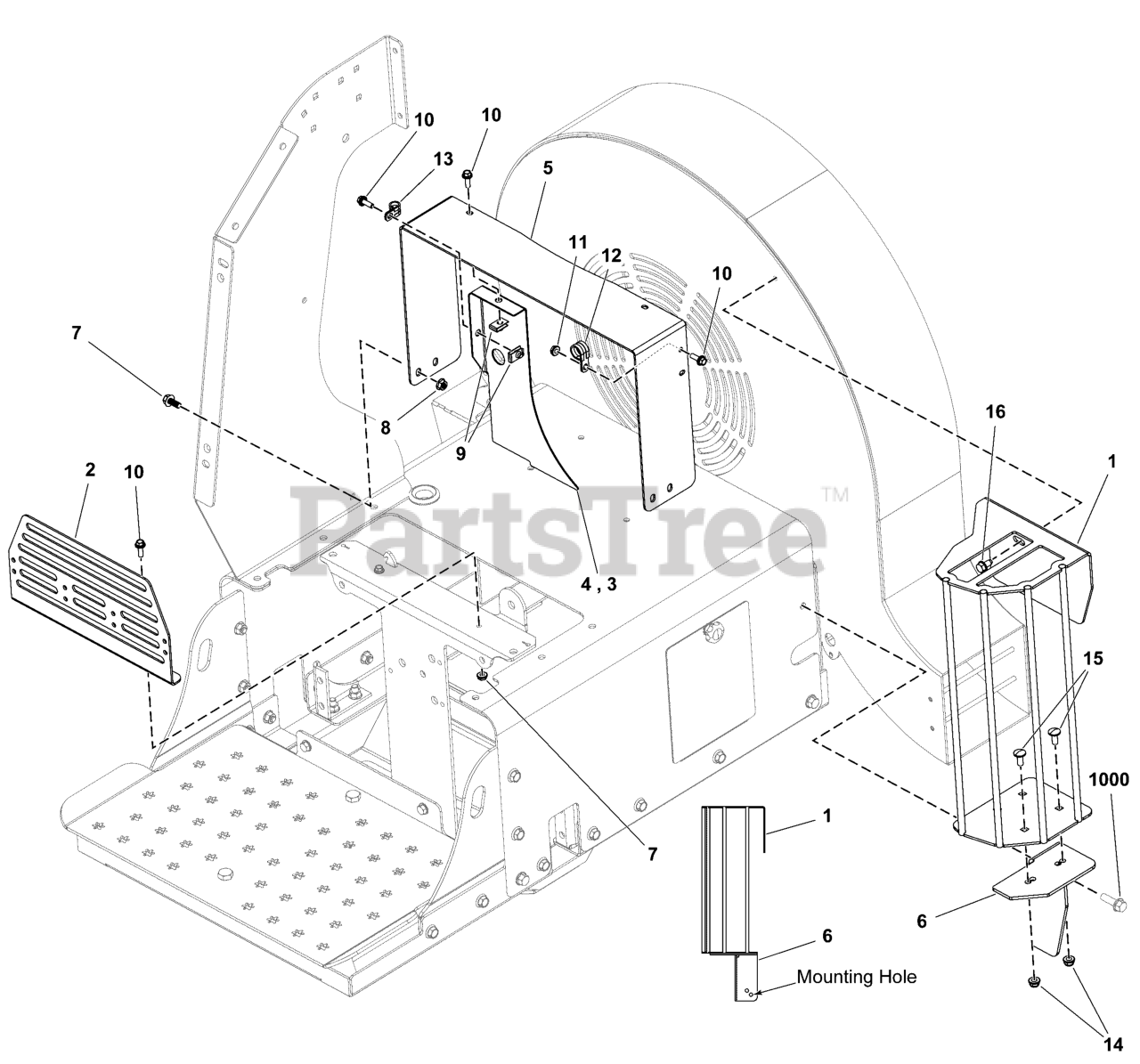

CE Guarding Group Parts Diagram

  • Title

1

Ferris 5420931A

WELD, MUFFLER GUARD, HURRICANE, X3000

$

$

Currently unavailable

2

Ferris 5420666AA

MOUNT, OIL RESERVOIR, CE - BLK
(Superseded to 5420666AAFS)

$48.99

$

Usually ships in 2-12 days

0

3

Ferris 5420681AD

PLATE, RH REAR BELT GUARD, CE - ORG

Note: (Not illustrated) (Right Side Plate - from Operator's Position)

$

$

Currently unavailable

4

Ferris 5420682AD

PLATE, LH REAR BELT GUARD, CE - ORG

Note: (Left Side Plate - from Operator's Position)

$

$

Currently unavailable

5

Ferris 5420680AD

PLATE, REAR BELT GUARD, CE - ORG

$

$

Currently unavailable

6

Ferris 5420953A

WELD, LOWER SUPPORT, MUF GUARD - BLK

$

$

Currently unavailable

7

Ferris 80003531

SCREW, 5/16-18x0.750, GR5, WHIZ-LOCK, ZC
(Superseded to 9357MA)

$5.49

$

In Stock, Qty 10

0

8

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

9

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5106872

BOLT, 1/4-20 X 3/4, FLANGE, CZ
(Superseded to 5106872FS)

$2.49

$

Usually ships in 2-12 days

0

11

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

12

Ferris 5107987

CLAMP, VINYL INSULATED, .75
(Superseded to 5107987FS)

$2.99

$

Usually ships in 2-12 days

0

13

Ferris 5107053

CLAMP, VINYL INSULATED, .50

$2.99

$

Usually ships in 2-12 days

0

14

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

15

RHSSNB,5/16-18 X 3/4 GR5 ZINC/CLEAR

$

$

Not available

16

Ferris 80005404

SCREW,5/16-18X0.625,WSHR,THD-ROLL,ZC/CL
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

1000

Refer to: Main Frame Group

$

$

Not available
