X 18V44 B - Electrolux/AYP Lawn Tractor (1991) TRANSAXLE LINKAGE AND REAR WHEEL Parts Diagram

Lawn Tractor

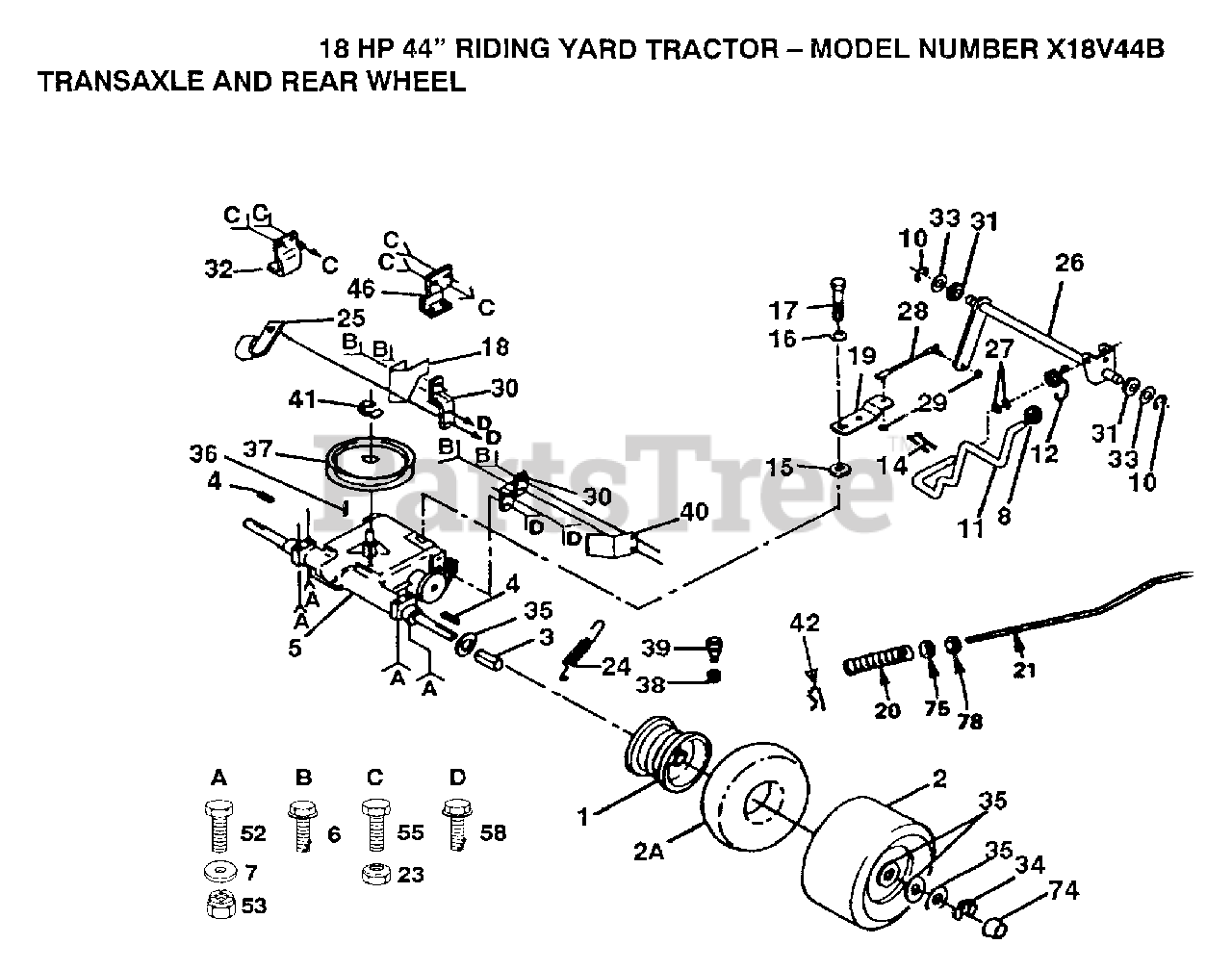

TRANSAXLE LINKAGE AND REAR WHEEL Parts Diagram

  • Title

$

$

Not available

2

Electrolux/AYP 124106X

SUB= 138756
(Superseded to 532138756)

$227.99

$

Usually ships in 3-10 days

0

2A

Electrolux/AYP 7154J

TUBE.23X8/10-12
(Superseded to 532007154)

$80.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 108097X

SPACER HYT
(Superseded to 532108097)

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 9396E

SQ KEY STD
(Superseded to 532009396)

$3.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 123797X

TRANSAXLE PEERLESS MODEL NO
(Superseded to 532123797)

$

$

Not available

6

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

7

Electrolux/AYP 19111214

WASHER
(Superseded to 819111214)

$

$

Not available

8

Electrolux/AYP 106933X

KNOB T (1/2-HOLE)
(Superseded to 532106933)

$7.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 12000008

KLIP RING
(Superseded to 812000008)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 123781X

SUB= 141002
(Superseded to 141002)

$

$

Not available

12

Electrolux/AYP 123782X

"SPRING,TORSION"
(Superseded to 532123782)

$4.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 76020416

PIN COTTER 1/8
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 105701X

WASH-SHFT PLT LT
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 71040412

SUB= 74550412

$

$

Not available

18

Electrolux/AYP 123791X

KEEPER BELT LH
(Superseded to 532123791)

$

$

Not available

19

Electrolux/AYP 123794X

"ARM,SHIFT"
(Superseded to 532123794)

$

$

Not available

20

Electrolux/AYP 126909X

"SPRING,ROD BRAKE"
(Superseded to 532126909)

$5.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 123786X

ROD BRAKE
(Superseded to 532123786)

$

$

Not available

22

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

23

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

24

$

$

Not available

25

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

26

Electrolux/AYP 123772X

"SHAFT,SHIFTER"
(Superseded to 532123772)

$

$

Not available

27

Electrolux/AYP 19171216

WASHER
(Superseded to 819171216)

$

$

Not available

28

Electrolux/AYP 123793X

"ROD,TIE "
(Superseded to 532166230)

$28.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 73530400

NUT 1/4-28
(Superseded to 873530400)

$5.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 123787X

STRAP TORQUE
(Superseded to 532123787)

$4.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 71208

BUSHING
(Superseded to 532071208)

$3.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 123780X

BRKT TRANS LH
(Superseded to 532123780)

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 19212016

WASHER D
(Superseded to 819212016)

$6.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 12000053

E RING HYT
(Superseded to 812000053)

$7.49

$

In Stock, only 2 left!

0

35

Electrolux/AYP 123800X

WASHER
(Superseded to 532123800)

$7.49

$

In Stock, only 1 left!

0

36

Murray 2228M

SUB= 2228M1

$

$

Not available

37

Electrolux/AYP 121327X

PULLEY TRANSAXLE
(Superseded to 532121327)

$

$

Not available

38

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

39

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

40

Electrolux/AYP 123792X

"KEEPER,BELT RH"
(Superseded to 532123792)

$

$

Not available

41

Electrolux/AYP 12000004

RING
(Superseded to 812000004)

$3.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

46

Electrolux/AYP 123776X

BRKT TRANS RH
(Superseded to 532123776)

$

$

Not available

52

Electrolux/AYP 74780544

BOLT HEX
(Superseded to 596218601)

$4.99

$

Usually ships in 3-10 days

0

53

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

55

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 2 left!

0

58

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 104757X

HUB CAP
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0

75

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

78

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0
