X 18V44 B - Electrolux/AYP Lawn Tractor (1991) ENCLOSURES/PANELS/SEAT Parts Diagram

Lawn Tractor

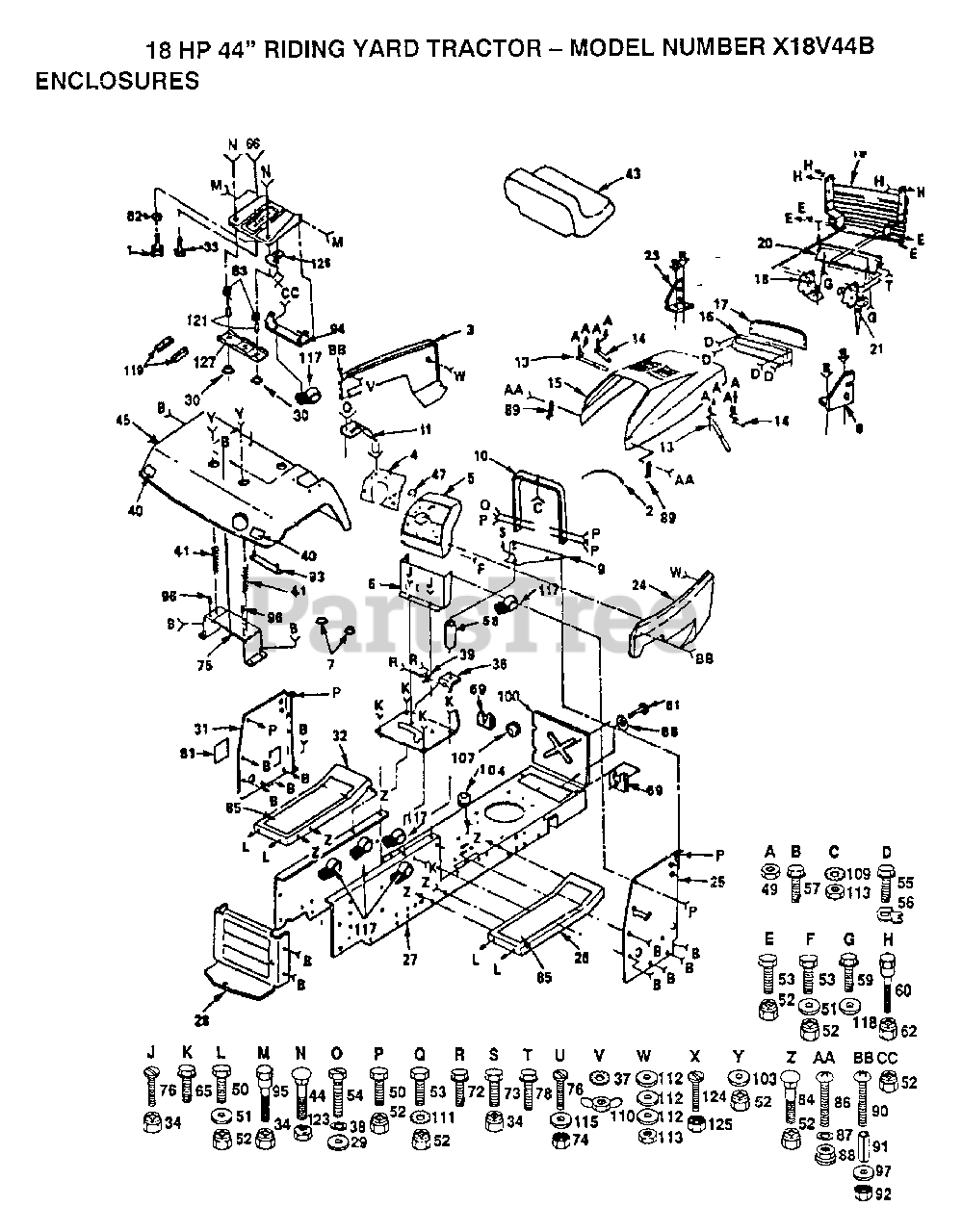

ENCLOSURES/PANELS/SEAT Parts Diagram

  • Title
1

Electrolux/AYP 120068X

"KNOB 1/2"" YT"
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 109458X

FOAM STRIP T
(Superseded to 532109458)

$

$

Not available

3

Electrolux/AYP 121888X476

SUB= 132638X475

$

$

Not available

$13.99

$

Usually ships in 3-10 days

0

5

$

$

Not available

6

Electrolux/AYP 104805X

LOWER DASH
(Superseded to 532104805)

$

$

Not available

7

Electrolux/AYP 124238X

CAP SPRING
(Superseded to 532124238)

$

$

Not available

8

Electrolux/AYP 110853X

SUPPORT RH YTH
(Superseded to 532110853)

$

$

Not available

9

$

$

Not available

10

Electrolux/AYP 110829X

SUB= 124130X

$

$

Not available

11

Electrolux/AYP 123825X

CONSOLE SHIFTER
(Superseded to 532123825)

$

$

Not available

13

$

$

Not available

14

$

$

Not available

15

Electrolux/AYP 121886X476

SUB= 132635X475

$

$

Not available

16

Electrolux/AYP 124392X417

SUB= 147717
(Superseded to 583678801)

$

$

Not available

17

Electrolux/AYP 106395X

LENS LT
(Superseded to 583650801)

$37.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 110855X

SUPPORT LH YTH
(Superseded to 532110855)

$

$

Not available

19

$

$

Not available

20

Electrolux/AYP 105419X475

"STRAP,GRILL "

$

$

Not available

21

Electrolux/AYP 110854X

SUPPORT RH YTH

$

$

Not available

23

Electrolux/AYP 110852X

SUPPORT LH YTH
(Superseded to 532110852)

$

$

Not available

24

Electrolux/AYP 121887X476

SUB= 132639X475

$

$

Not available

25

$

$

Not available

26

Electrolux/AYP 105464X475

SUB= 145243X475

$

$

Not available

27

Electrolux/AYP 127166X

CHASSIS
(Superseded to 532127166)

$

$

Not available

28

Electrolux/AYP 123785X

DRAW BAR
(Superseded to 532145009)

$

$

Not available

29

Electrolux/AYP 19060718

WASHER
(Superseded to 819060718)

$2.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 121248X

BUSHING
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 124118X

PANEL DASH LH
(Superseded to 532124118)

$

$

Not available

32

Electrolux/AYP 105465X475

SUB= 145244X475

$

$

Not available

33

Electrolux/AYP 127018X

"BOLT,SHOULDER"
(Superseded to 532127018)

$7.49

$

In Stock, only 1 left!

0

34

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

$

$

Not available

37

Electrolux/AYP 11030400

LOCKWASHER GT

$2.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 10100800

"WASHER,LOCK"
(Superseded to 810100800)

$3.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 1554J

SUB= 155108

$

$

Not available

40

Electrolux/AYP 106202X

REFLECTOR-TAIL YT
(Superseded to 532106202)

$

$

Not available

41

Electrolux/AYP 124181X

SPRING COMPRESSIO
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

43

Electrolux/AYP 127429X

SUB= 140121
(Superseded to 532401043)

$

$

Not available

44

Electrolux/AYP 72170410

BOLT
(Superseded to 872170410)

$4.99

$

Usually ships in 3-10 days

0

$85.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 5479J

PLUG BUTTON T
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0

49

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

50

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

51

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

52

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 74640806

SCREW
(Superseded to 874640806)

$4.99

$

Usually ships in 3-10 days

0

$2.49

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 104755X

"""J"" FASTENER LT"

$2.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

58

Electrolux/AYP 121236X

SPACER
(Superseded to 532121236)

$

$

Not available

59

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

In Stock, only 2 left!

0

60

$

$

Not available

61

Electrolux/AYP 123650X

STUD.1/4.TURN
(Superseded to 532123650)

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

63

Electrolux/AYP 123740X

SPRING COMPRESSED
(Superseded to 532123740)

$6.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

66

$

$

Not available

68

Electrolux/AYP 105838X

RETAINER LT
(Superseded to 532105838)

$6.49

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 105839X

RECEPTACLE LT
(Superseded to 532105839)

$3.99

$

In Stock, only 1 left!

0

72

Electrolux/AYP 17431008

SUB= 98000165

$

$

Not available

73

Electrolux/AYP 74760532

BOLT
(Superseded to 874760532)

$2.99

$

Usually ships in 3-10 days

0

$2.99

$

Usually ships in 3-10 days

0

75

$

$

Not available

76

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

78

Electrolux/AYP 17190412

SCREW
(Superseded to 817190412)

$

$

Not available

81

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

82

Electrolux/AYP 19171912

WASHER
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

84

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

85

Electrolux/AYP 128866

"PAD,FOOTREST"
(Superseded to 539128866)

$42.99

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 74191008

SCREW
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 10071000

LOCKWASHER
(Superseded to 810071000)

$4.99

$

In Stock, Qty 11

0

88

Electrolux/AYP 2029J

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

89

Electrolux/AYP 109808X

HOOD LATCH T
(Superseded to 532109808)

$6.99

$

In Stock, Qty 13

0

90

Electrolux/AYP 74981020

SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

91

Electrolux/AYP 7206J

SPACER LT
(Superseded to 532007206)

$7.49

$

In Stock, Qty 6

0

$2.49

$

Usually ships in 3-10 days

0

93

$

$

Not available

94

$

$

Not available

95

Electrolux/AYP 105529X

SUB= 139888
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

96

Electrolux/AYP 105531X

NUT-PUSH YT
(Superseded to 532105531)

$2.99

$

Usually ships in 3-10 days

0

97

Electrolux/AYP 19070818

WASHER
(Superseded to 532004802)

$2.99

$

Usually ships in 3-10 days

0

100

$

$

Not available

103

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

104

Electrolux/AYP 9151R

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

107

$

$

Not available

109

$2.49

$

Usually ships in 3-10 days

0

110

$

$

Not available

111

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

112

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, only 1 left!

0

113

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

115

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

117

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

118

Electrolux/AYP 19111212

WASHER
(Superseded to 819111212)

$3.99

$

In Stock, Qty 11

0

119

Electrolux/AYP 121251X

STRIP FORM
(Superseded to 532121251)

$

$

Not available

121

Electrolux/AYP 121249X

SPACER SPLIT
(Superseded to 532121249)

$6.49

$

In Stock, only 2 left!

0

123

Electrolux/AYP 123976X

SUB= 73900400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

124

Electrolux/AYP 74641008

SUB= 71031008

$

$

Not available

125

Electrolux/AYP 73951000

"NUT,KEPS"
(Superseded to 873951000)

$5.99

$

Usually ships in 3-10 days

0

$

$

Not available

127

Electrolux/AYP 121246X

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

$

$

Not available

$

$

Not available

Electrolux/AYP 109199X

SUB= 146046
(Superseded to 582965201)

$4.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 128015

"DECAL,HOOD RH "

$

$

Not available

Electrolux/AYP 109821X

SUB= 138956
(Superseded to 532109821)

$

$

Not available

$

$

Not available

Electrolux/AYP 101892X

DECAL T
(Superseded to 532101892)

$

$

Not available

$

$

Not available

Electrolux/AYP 128007

"DECAL,GRILL "
(Superseded to 539128007)

$14.99

$

Usually ships in 3-10 days

0
