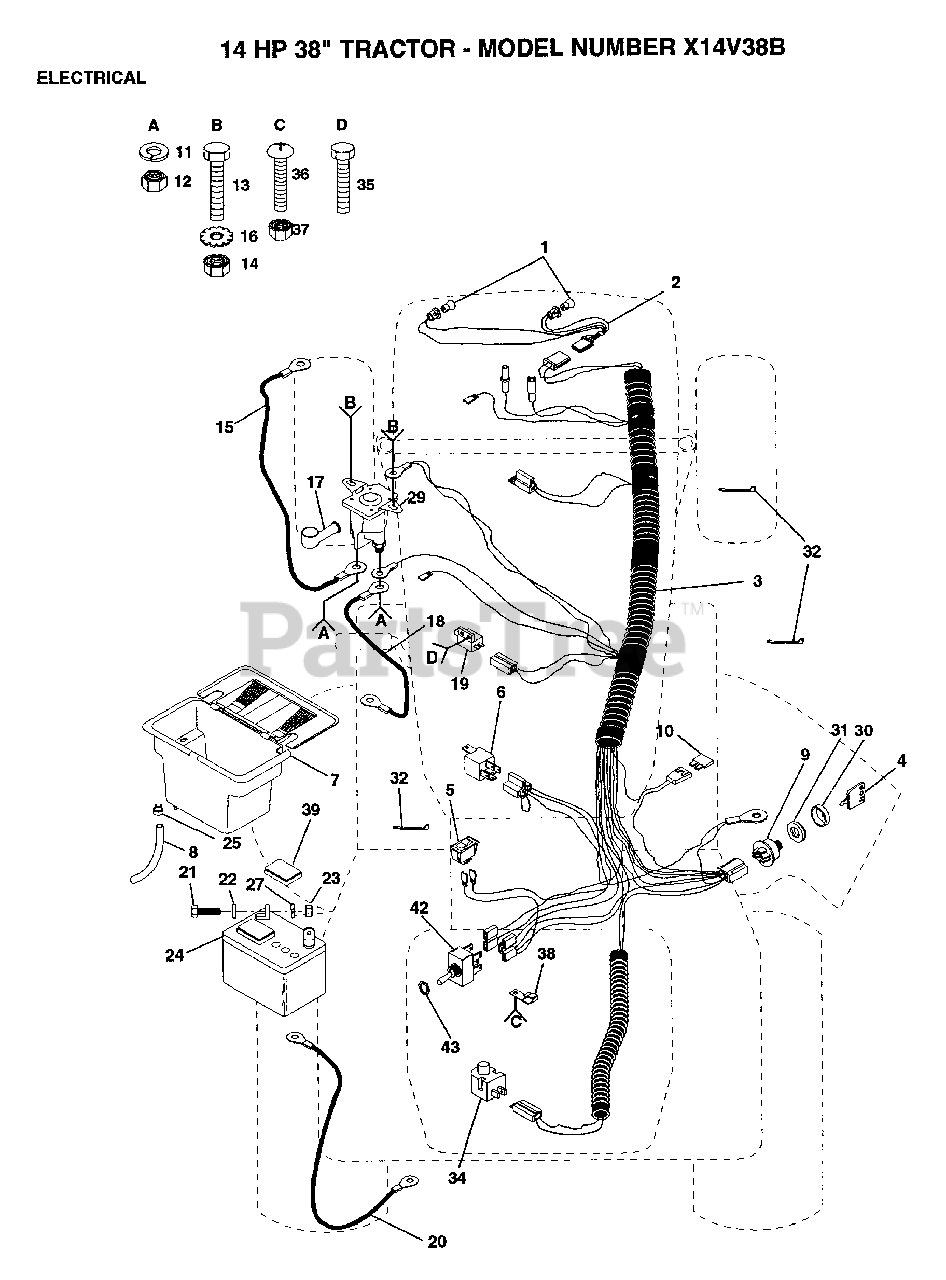

X 14V38 B - Electrolux/AYP Lawn Tractor (1992) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title
1

Electrolux/AYP 7662J

SUB= 4152J
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 110859X

HARNESS T
(Superseded to 532110859)

$

$

Not available

3

Electrolux/AYP 135683

"HARNESS,IGNITION"
(Superseded to 582950801)

$80.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 122147X

KEY
(Superseded to 532122147)

$

$

Not available

5

Electrolux/AYP 110712X

SWITCH LT
(Superseded to 532110712)

$9.49

$

In Stock, only 4 left!

0

6

Electrolux/AYP 109748X

RELAY ASSY T
(Superseded to 532109748)

$30.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 129965

SUB= 156417

$

$

Not available

8

Electrolux/AYP 105687X

SUB= 109238X

$

$

Not available

9

Electrolux/AYP 102972X

SUB= 918102972X
(Superseded to 532102972)

$

$

Not available

10

Electrolux/AYP 108824X

FUSE HYT
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 10090400

SUB= 10040400

$

$

Not available

12

Electrolux/AYP 73350400

NUT
(Superseded to 873350400)

$

$

Not available

13

Electrolux/AYP 74780408

BOLT
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

14

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

15

Electrolux/AYP 4799J

"CABLE T, BATTERY"
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

16

$2.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 131563

SUB= 154336
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 132202

SUB= 146147
(Superseded to 532132202)

$

$

Not available

19

Electrolux/AYP 104445X

SWITCH-INTER. GT
(Superseded to 532104445)

$17.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 4207J

CABLE T
(Superseded to 532004207)

$8.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

22

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

24

Electrolux/AYP 121265X

SUB= 123899X

$

$

Not available

25

Electrolux/AYP 109596X

HOSE CLAMP T
(Superseded to 532109596)

$4.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

29

$

$

Not available

30

Electrolux/AYP 123620X

SUB= 141226
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 124211X

NUT IGNITION
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 7192J

WIRE TIE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 121305X

SWITCH SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

35

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

36

Electrolux/AYP 74641008

SUB= 71031008

$

$

Not available

37

Electrolux/AYP 73951000

"NUT,KEPS"
(Superseded to 873951000)

$5.99

$

Usually ships in 3-10 days

0

$

$

Not available

39

Electrolux/AYP 121264X

"CAP,BATTERY "
(Superseded to 532121264)

$

$

Not available

42

$

$

Not available

43

Electrolux/AYP 4022J

HEX NUT T
(Superseded to 532004022)

$

$

Not available
