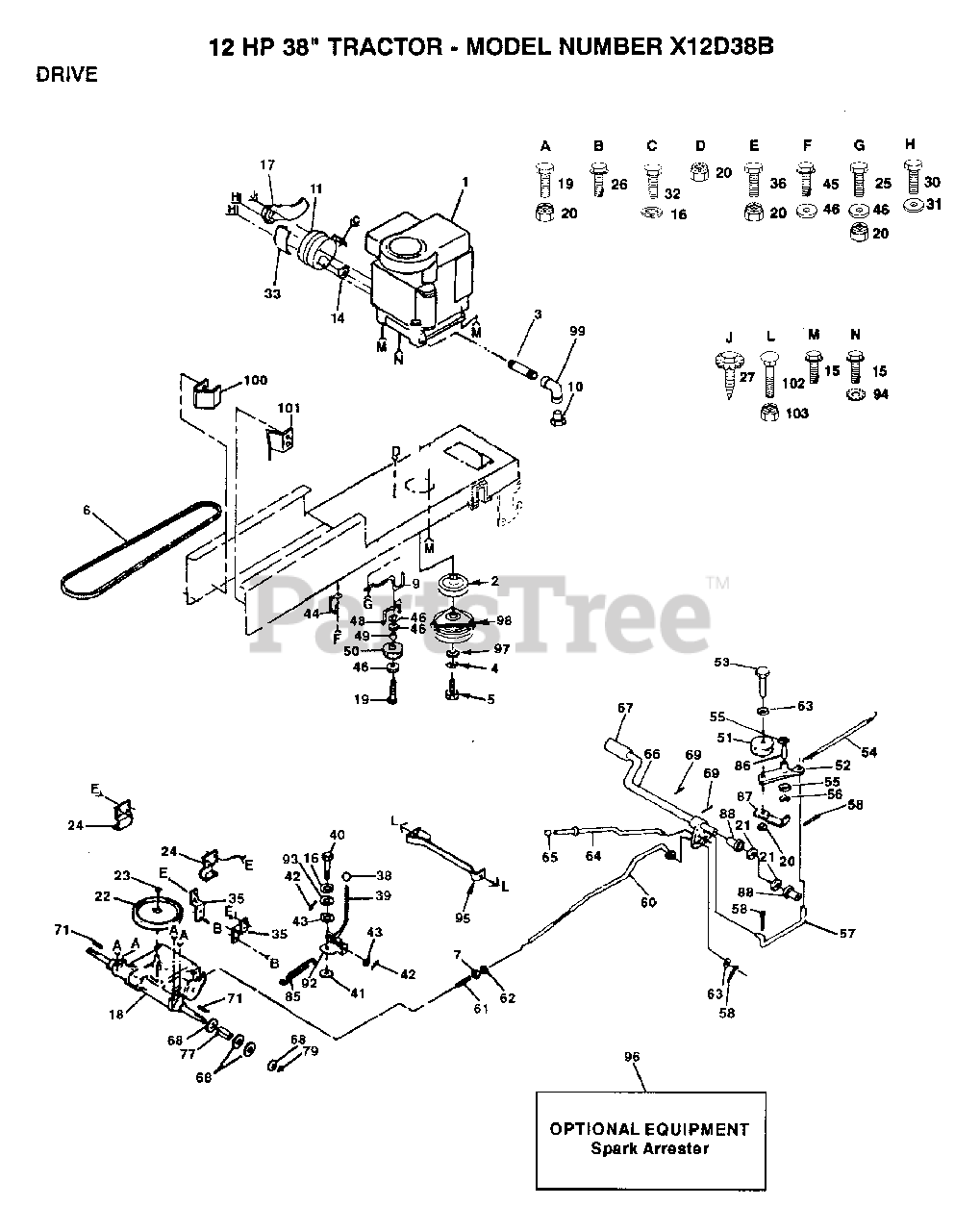

X 12D38 B - Electrolux/AYP Lawn Tractor (1992) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

$

$

Not available

2

$

$

Not available

3

Electrolux/AYP 13280324

PIPE NIPPLE
(Superseded to 813280324)

$

$

Not available

4

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

5

$

$

Not available

6

Electrolux/AYP 125907X

BELT-V.90.0.GD.DR
(Superseded to 532125907)

$39.99

$

In Stock, Qty 9

0

7

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 129921

KEEPER.BELT.ENG.L
(Superseded to 532129921)

$

$

Not available

10

REFER TO IMAGE

$

$

Not available

11

Electrolux/AYP 101273M

MUFFLER LTV
(Superseded to 583638801)

$72.99

$

Usually ships in 3-10 days

0

14

$

$

Not available

15

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

16

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

17

Electrolux/AYP 108767X

DEFLECTOR MUFFLER
(Superseded to 583655701)

$42.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 19211616

WASHER LT
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 123666X

PULLEY TRANS
(Superseded to 532123666)

$45.99

$

In Stock, only 1 left!

0

23

Electrolux/AYP 12000028

SUB= 2267J
(Superseded to 812000028)

$7.49

$

In Stock, Qty 7

0

24

Electrolux/AYP 109167X

BRACKET LT
(Superseded to 532109167)

$

$

Not available

25

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

In Stock, only 2 left!

0

27

Electrolux/AYP 17030808

SUB= 17030814
(Superseded to 817030808)

$

$

Not available

30

Electrolux/AYP 74780556

"BOLT,HEX"
(Superseded to 583614601)

$3.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 19111012

WASHER T
(Superseded to 819111012)

$6.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 74780408

BOLT
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 101159L

SHIELD HEAT LTV
(Superseded to 583638401)

$3.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 121520X

STRAP TORQUE
(Superseded to 532121520)

$7.99

$

In Stock, only 3 left!

0

36

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

38

Electrolux/AYP 106933X

KNOB T (1/2-HOLE)
(Superseded to 532106933)

$7.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 124461X

ROD SHIFTER
(Superseded to 532124461)

$

$

Not available

40

Electrolux/AYP 71040412

SUB= 74550412

$

$

Not available

41

Electrolux/AYP 105701X

WASH-SHFT PLT LT
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 76020416

PIN COTTER 1/8
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

44

$

$

Not available

45

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

46

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

48

Electrolux/AYP 109070X

BELT KEEPER LT
(Superseded to 532109070)

$6.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 4470J

SPACER T
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 123674X

PULLEY.IDLER.FLAT
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

51

Murray 127783

SUB= 139245

$

$

Not available

52

Electrolux/AYP 123789X

ARM IDLER
(Superseded to 532123789)

$

$

Not available

53

Electrolux/AYP 74760624

SUB= 74930624
(Superseded to 874760624)

$7.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 105709X

"SPRING, RETURN LT"
(Superseded to 532105709)

$11.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 110812X

WASHER LT
(Superseded to 532110812)

$

$

Not available

56

Electrolux/AYP 12000039

KLIP RING
(Superseded to 812000039)

$6.49

$

In Stock, Qty 7

0

57

Electrolux/AYP 105710X

"LINK, CLUTCH T"
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

60

$

$

Not available

61

Electrolux/AYP 106888X

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

62

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

63

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

64

Electrolux/AYP 128904

PARKING BRAKE ROD
(Superseded to 539128904)

$5.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 71673

PLUNGER CAP T
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 122424X

SUB= 149001
(Superseded to 532122424)

$

$

Not available

67

Electrolux/AYP 8883R

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

69

Murray 1572H

SUB= 2882J

$

$

Not available

71

Electrolux/AYP 123583X

SQUARE KEY
(Superseded to 532123583)

$4.99

$

In Stock, only 4 left!

0

77

Electrolux/AYP 109502X

SPACER LT
(Superseded to 532109502)

$

$

Not available

79

Electrolux/AYP 12000001

E-RING LT
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

85

$

$

Not available

86

Electrolux/AYP 105706X

"LY, BEARING"
(Superseded to 532105706)

$7.49

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 123205X

RETAIN BELT
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 120183X

NYLON BEARING
(Superseded to 532120183)

$6.99

$

In Stock, only 3 left!

0

92

Electrolux/AYP 106919X

PLATE SHIFT LT
(Superseded to 532106919)

$

$

Not available

93

Electrolux/AYP 19091210

WASHER LT
(Superseded to 819091210)

$4.99

$

In Stock, only 1 left!

0

94

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 109169X

SUB= 109172X

$

$

Not available

96

Electrolux/AYP 121851X

SUB= 532137180

$

$

Not available

97

Electrolux/AYP 126197X

WASHER
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

98

$

$

Not available

99

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

100

Electrolux/AYP 127275X

"KEEPER,BELT LH T"
(Superseded to 532127275)

$

$

Not available

101

Electrolux/AYP 127274X

"KEEPER,BELT RH T"
(Superseded to 532127274)

$4.99

$

Usually ships in 3-10 days

0

102

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

103

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+
