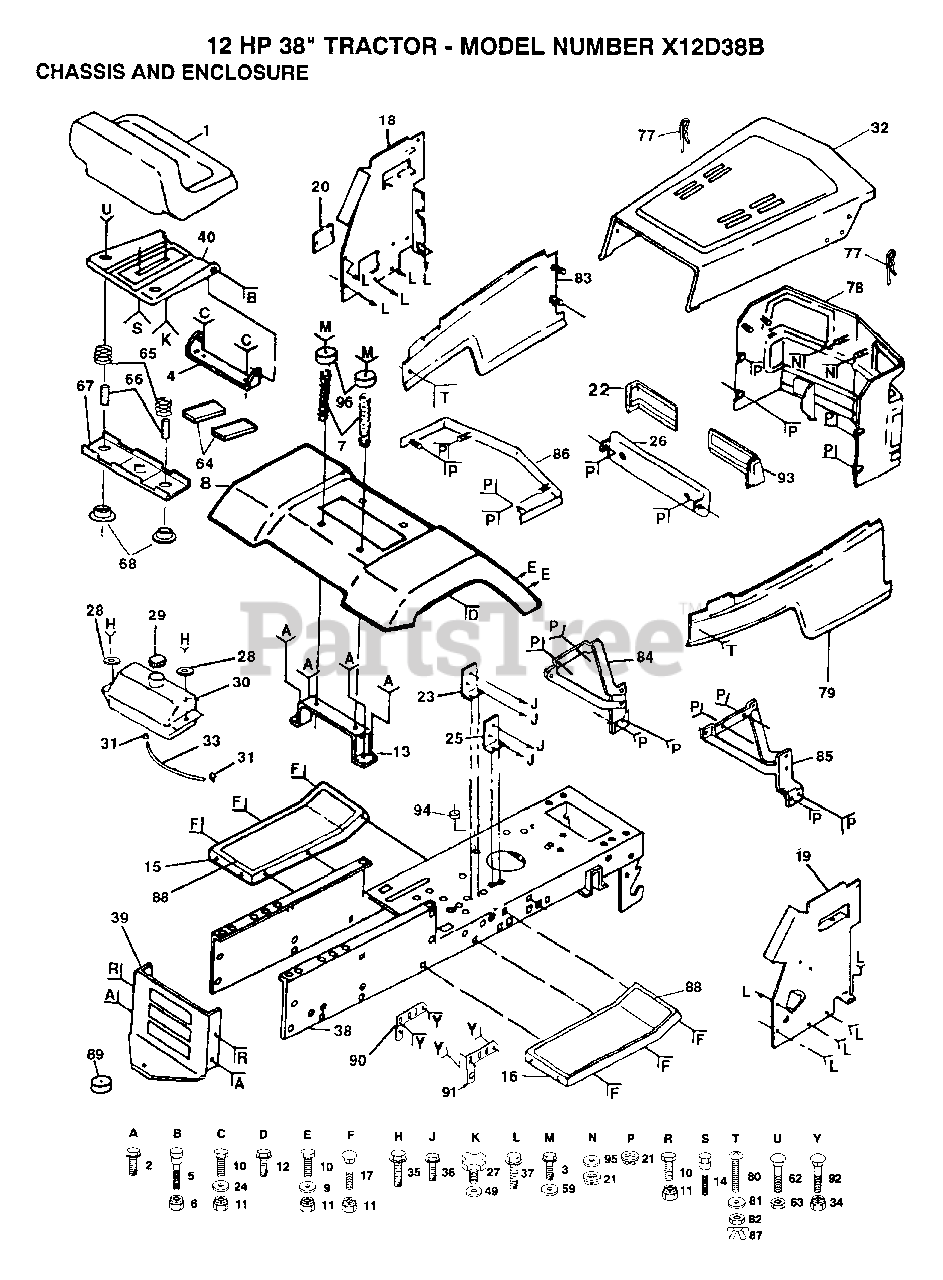

X 12D38 B - Electrolux/AYP Lawn Tractor (1992) CHASSIS AND ENCLOSURE Parts Diagram

Lawn Tractor

CHASSIS AND ENCLOSURE Parts Diagram

  • Title

1

Electrolux/AYP 127424X

SUB= 140121

$

$

Not available

2

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

3

Electrolux/AYP 17490616

SCREW GTV
(Superseded to 817000616)

$7.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 126656X

SUB= 140551

$

$

Not available

5

Electrolux/AYP 105529X

SUB= 139888
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

6

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 124181X

SPRING COMPRESSIO
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 109872X475

FENDER

$

$

Not available

9

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

10

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 109873X

SUB= 136619

$

$

Not available

14

Electrolux/AYP 127018X

"BOLT,SHOULDER"
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 105465X475

SUB= 145244X475

$

$

Not available

16

Electrolux/AYP 105464X475

SUB= 145243X475

$

$

Not available

17

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 122795X

PANEL DASH LH

$5.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 126276X

SUB= 155936

$

$

Not available

20

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

21

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

22

Electrolux/AYP 108361X

LENS LH LT

$

$

Not available

23

Electrolux/AYP 130890

SWITCH BRACKET

$

$

Not available

24

Electrolux/AYP 19131210

WASHER
(Superseded to 819131210)

$

$

Not available

25

Electrolux/AYP 108236X

BRACKET LT
(Superseded to 532108236)

$2.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 132257

SUB= 918132257
(Superseded to 132257X417)

$

$

Not available

27

Electrolux/AYP 120068X

"KNOB 1/2"" YT"
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 19091416

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 123549X

SUB= 158990
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 109202X

TANK.FUEL.LT.
(Superseded to 532184900)

$45.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

32

Electrolux/AYP 128561X475

HOOD ASSY

$56.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 101335K

SUB= 8548R

$

$

Not available

34

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 17490412

SCREW HEX CRT

$2.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

37

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 135034

SUB= 145501

$

$

Not available

39

Electrolux/AYP 127866

DRAWBAR LT/YT
(Superseded to 532121306)

$

$

Not available

40

Electrolux/AYP 131451

SUB= 155925

$

$

Not available

49

Electrolux/AYP 19171912

WASHER
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

59

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 72050411

SUB= 872050411

$

$

Not available

63

Electrolux/AYP 123976X

SUB= 73900400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

64

Electrolux/AYP 121251X

STRIP FORM
(Superseded to 532121251)

$

$

Not available

65

Electrolux/AYP 121250X

SPRING
(Superseded to 532121250)

$7.49

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 134300

SPLIT SPACER
(Superseded to 532134300)

$7.49

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 121246X

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 121248X

BUSHING
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

Usually ships in 3-10 days

0

78

Electrolux/AYP 128313

SUB= 532128313

$

$

Not available

79

Electrolux/AYP 106927X475

"SIDE PANEL,RH"

$6.99

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 127317X

"SCREW,SPECIAL"

$2.49

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 129964

SUB= 129664

$

$

Not available

82

Electrolux/AYP 127316X

RETAINER
(Superseded to 532127316)

$

$

Not available

83

Electrolux/AYP 106929X475

"SIDE PANEL,LH"

$6.99

$

Usually ships in 3-10 days

0

84

Electrolux/AYP 105797X

"HINGE,HOOD,LH T"

$

$

Not available

85

Electrolux/AYP 105792X

"HINGE,HOOD,RH T"

$

$

Not available

86

Electrolux/AYP 109745X475

"STRAP,GRILL"

$3.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 127318X

"GROMMET,PLASTIC"
(Superseded to 583673301)

$3.99

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 133671

FOOTREST PAD
(Superseded to 532133671)

$10.99

$

Usually ships in 3-10 days

0

89

Murray 124028X

SUB= 532124028

$

$

Not available

90

Electrolux/AYP 134618

BRKT ASM PIVOT LH
(Superseded to 582950001)

$6.99

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 134617

BRKT ASM PIVOT RH

$

$

Not available

92

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

93

Electrolux/AYP 108360X

LENS RH LT

$

$

Not available

94

Electrolux/AYP 9151R

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

95

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 124238X

CAP SPRING
(Superseded to 532124238)

$

$

Not available
