X 125R38 A - Electrolux/AYP Lawn Tractor (1993) FENDER AND CHASSIS Parts Diagram

Lawn Tractor

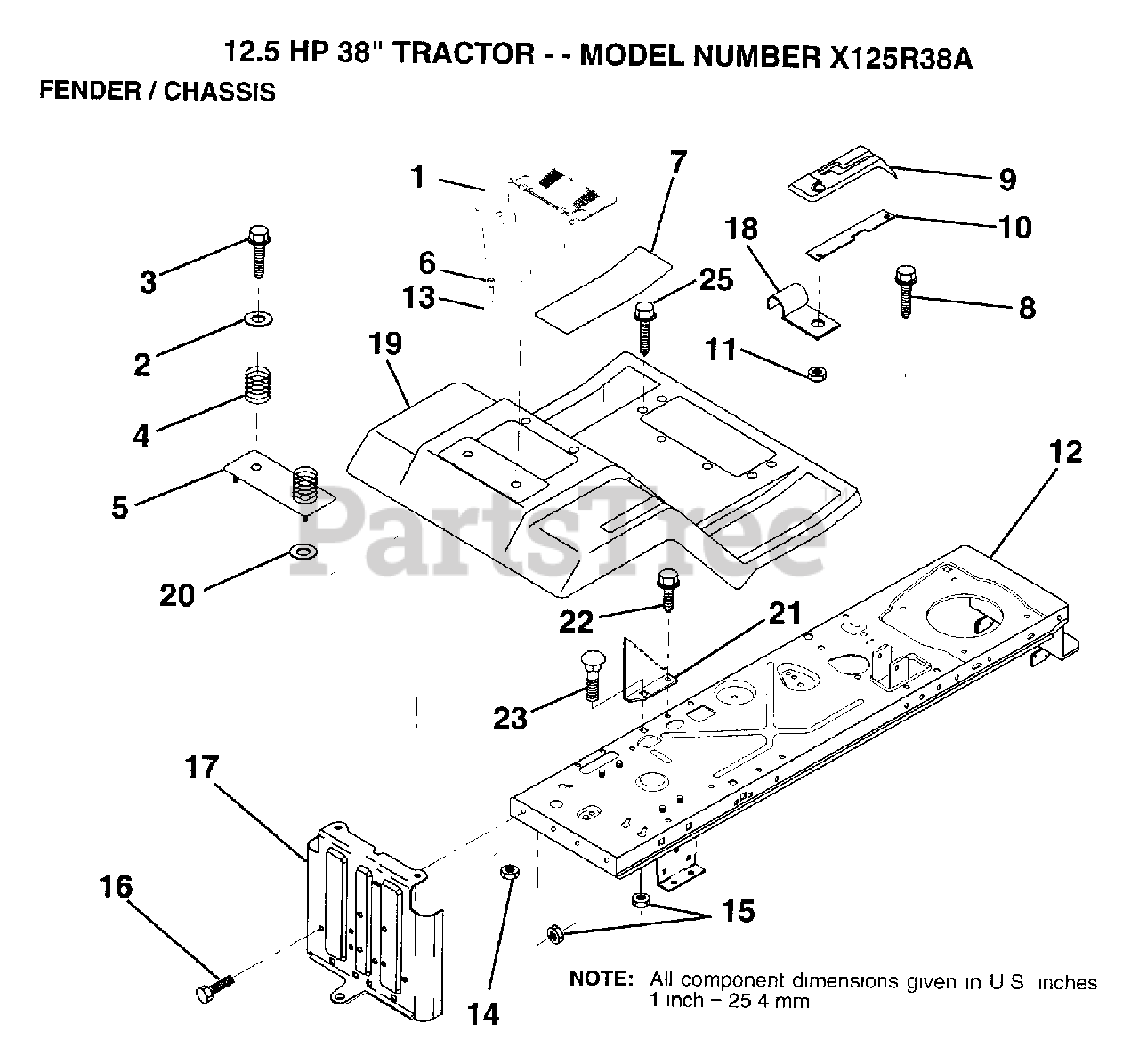

FENDER AND CHASSIS Parts Diagram

  • Title
1

Electrolux/AYP 129965

SUB= 156417

$

$

Not available

2

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 124181X

SPRING COMPRESSIO
(Superseded to 587613301)

$6.99

$

In Stock, only 3 left!

0

5

Electrolux/AYP 127115X475

"PLATE,FENDER"

$5.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 109596X

HOSE CLAMP T
(Superseded to 532109596)

$4.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 124144X

PAD FOOTREST
(Superseded to 134214)

$

$

Not available

8

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

In Stock, only 2 left!

0

9

Electrolux/AYP 126995X

SUB= 126995X428
(Superseded to 532166635)

$

$

Not available

10

Electrolux/AYP 124307X

"SHIFT LOCK, BAR"
(Superseded to 532124307)

$2.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 124346X

NUT
(Superseded to 532124346)

$7.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 137097

SUB= 139893
(Superseded to 532137097)

$

$

Not available

13

Electrolux/AYP 109238X

TUBE T
(Superseded to 532105687)

$

$

Not available

14

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

15

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 127880

DRAWBAR
(Superseded to 539127880)

$109.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 126470X

"CLIP,INSULATOR"
(Superseded to 532126470)

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 132650X475

SUB= 140956X475

$

$

Not available

$2.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 132562

SUB= 140297

$

$

Not available

22

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 72110506

SUB= 72270506
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

25

Electrolux/AYP 17490516

SCREW TI
(Superseded to 817490516)

$6.49

$

Usually ships in 3-10 days

0
