X 12542 A - Electrolux/AYP Lawn Tractor (1993) ENGINE Parts Diagram

Lawn Tractor

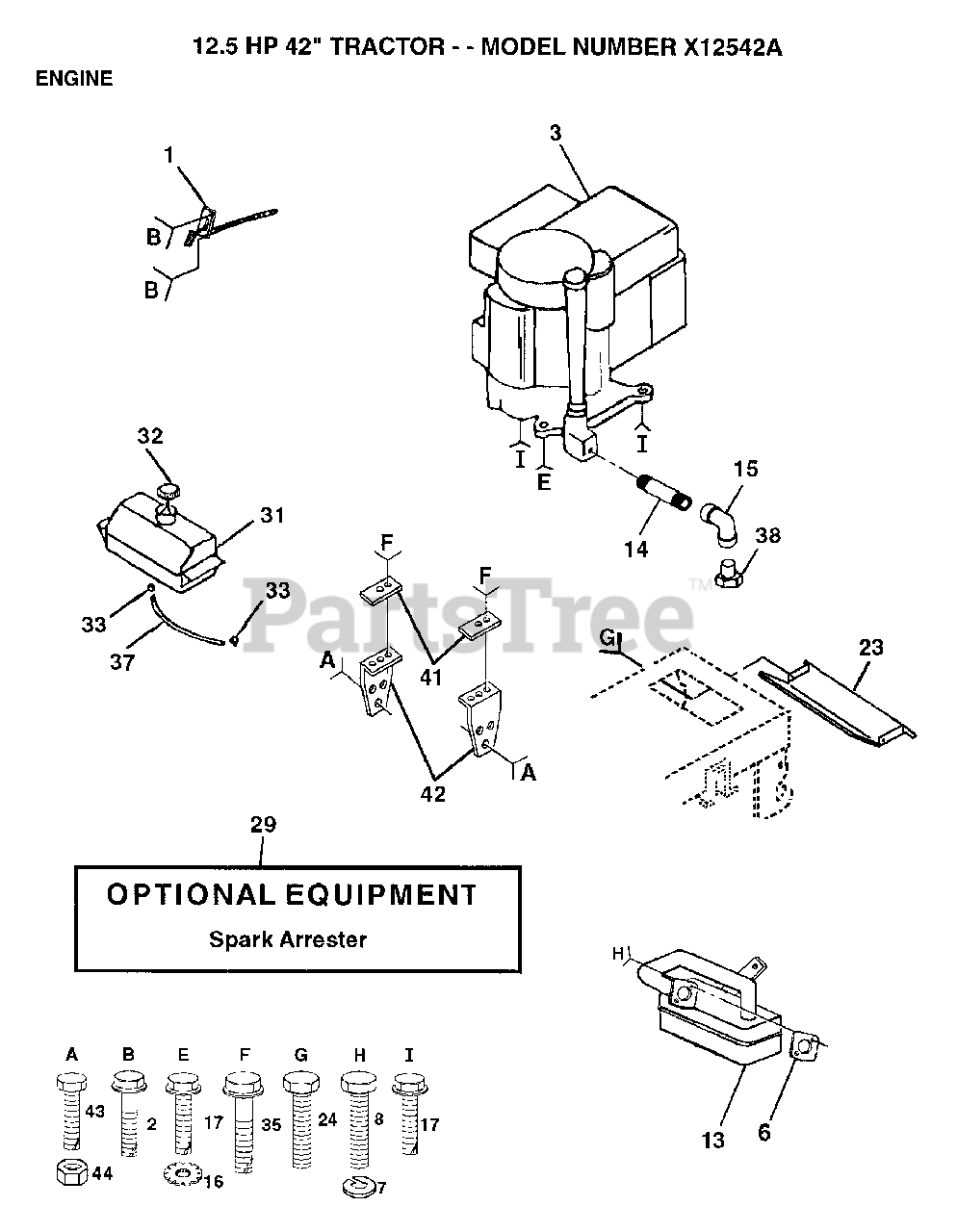

ENGINE Parts Diagram

  • Title
1

Electrolux/AYP 132752

"CONTROL,THROTTLE"
(Superseded to 532132752)

$

$

Not available

2

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

$

$

Not available

6

$

$

Not available

7

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 71070512

SCREW
(Superseded to 596134201)

$3.99

$

In Stock, Qty 5

0

13

Electrolux/AYP 137348

MUFFLER
(Superseded to 532137348)

$102.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 13280324

PIPE NIPPLE
(Superseded to 813280324)

$

$

Not available

15

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

23

Electrolux/AYP 128953

HEAT SHIELD
(Superseded to 532128953)

$

$

Not available

24

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

29

Electrolux/AYP 137179

SUB= 532137179

$

$

Not available

31

Electrolux/AYP 109202X

TANK.FUEL.LT.
(Superseded to 532184900)

$45.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 123549X

SUB= 158990
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

35

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

37

Electrolux/AYP 7833R

HOSE T
(Superseded to 532007833)

$4.99

$

Usually ships in 3-10 days

0

38

CHECK WITH SUPPLIER

$

$

Not available

41

Electrolux/AYP 128230

"CLAMP,FUEL TANK T"

$2.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 128229

BRKT FUEL TANK T

$3.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0
