X 1236 B - Electrolux/AYP Lawn Tractor (1991) MOWER DECK Parts Diagram

Lawn Tractor

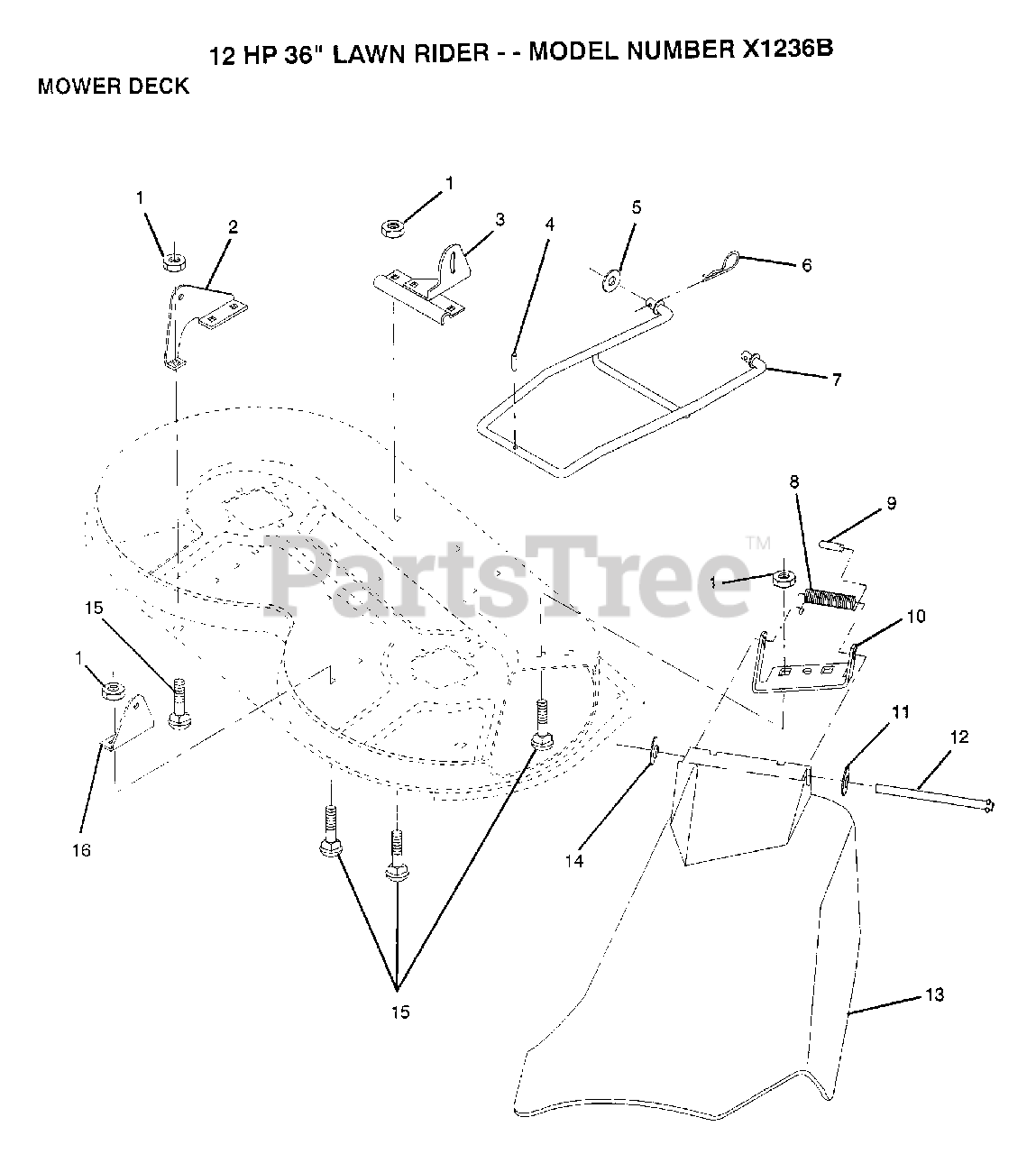

MOWER DECK Parts Diagram

  • Title

1

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

2

Electrolux/AYP 127357

"BRKT,LIFT REAR LH"
(Superseded to 532127357)

$

$

Not available

3

Electrolux/AYP 127380

"BRKT,LINK STABILI"
(Superseded to 532127380)

$

$

Not available

4

Electrolux/AYP 128511

"PIN,GROOVE"
(Superseded to 532128511)

$

$

Not available

5

Electrolux/AYP 19171713

SUB= 146537

$

$

Not available

6

Electrolux/AYP 3146R

RETAINER.SPRING
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 128508

MOWER LINK STAB
(Superseded to 539128508)

$157.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 123713X

SPRING TORSION
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 126361X

SUB= 532136631

$

$

Not available

11

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 121980X

HINGE ROD
(Superseded to 532121980)

$

$

Not available

13

Electrolux/AYP 131560

SUB= 532131560

$

$

Not available

14

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 72140505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 127356

"BRKT,LIFT REAR"
(Superseded to 532127356)

$

$

Not available

Electrolux/AYP 3713J

DECAL INSTRUCTION CAUTION
(Superseded to 532003713)

$

$

Not available

Electrolux/AYP 121343X

DECAL WARING

$

$

Not available
