X 1236 B - Electrolux/AYP Lawn Tractor (1991) GROUND DRIVE Parts Diagram

Lawn Tractor

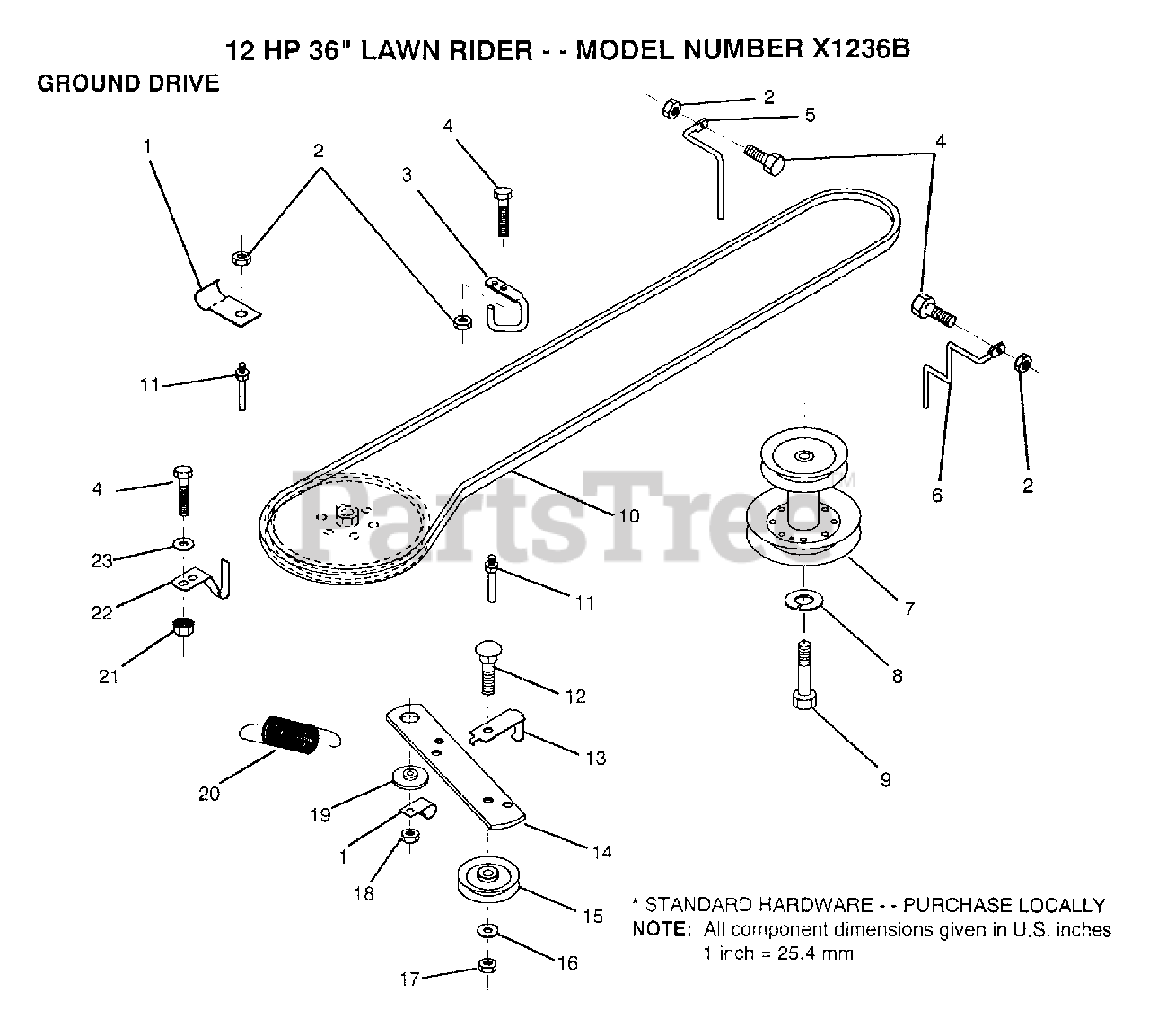

GROUND DRIVE Parts Diagram

  • Title
1

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

2

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 123404X

"KEEPER,FRA DR BEL"
(Superseded to 532123404)

$

$

Not available

4

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 123448X

KEEPER ENG BEL LH

$4.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 123402X

KEEPER ENG DR RH

$4.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 131004

SUB= 135893

$

$

Not available

8

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

9

Electrolux/AYP 71130720

BOLT
(Superseded to 874780720)

$6.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 124525X

BELT
(Superseded to 532124525)

$48.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 123405X

"KEEPER,DRIVE BELT"
(Superseded to 532164173)

$8.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 72140612

BOLT
(Superseded to 872140612)

$2.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 123396X

"KEEP,IDLER DR BEL"
(Superseded to 532123396)

$4.99

$

Usually ships in 3-10 days

0

14

$

$

Not available

15

Electrolux/AYP 4859J

SUB= 123674X

$

$

Not available

16

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 122052X

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 131459

SUB= 532131459

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 123891X

"KEEPER,DR BELT "
(Superseded to 532139919)

$2.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 11

0
