X 1236 A - Electrolux/AYP Lawn Tractor (1991) FRONT AXLE Parts Diagram

Lawn Tractor

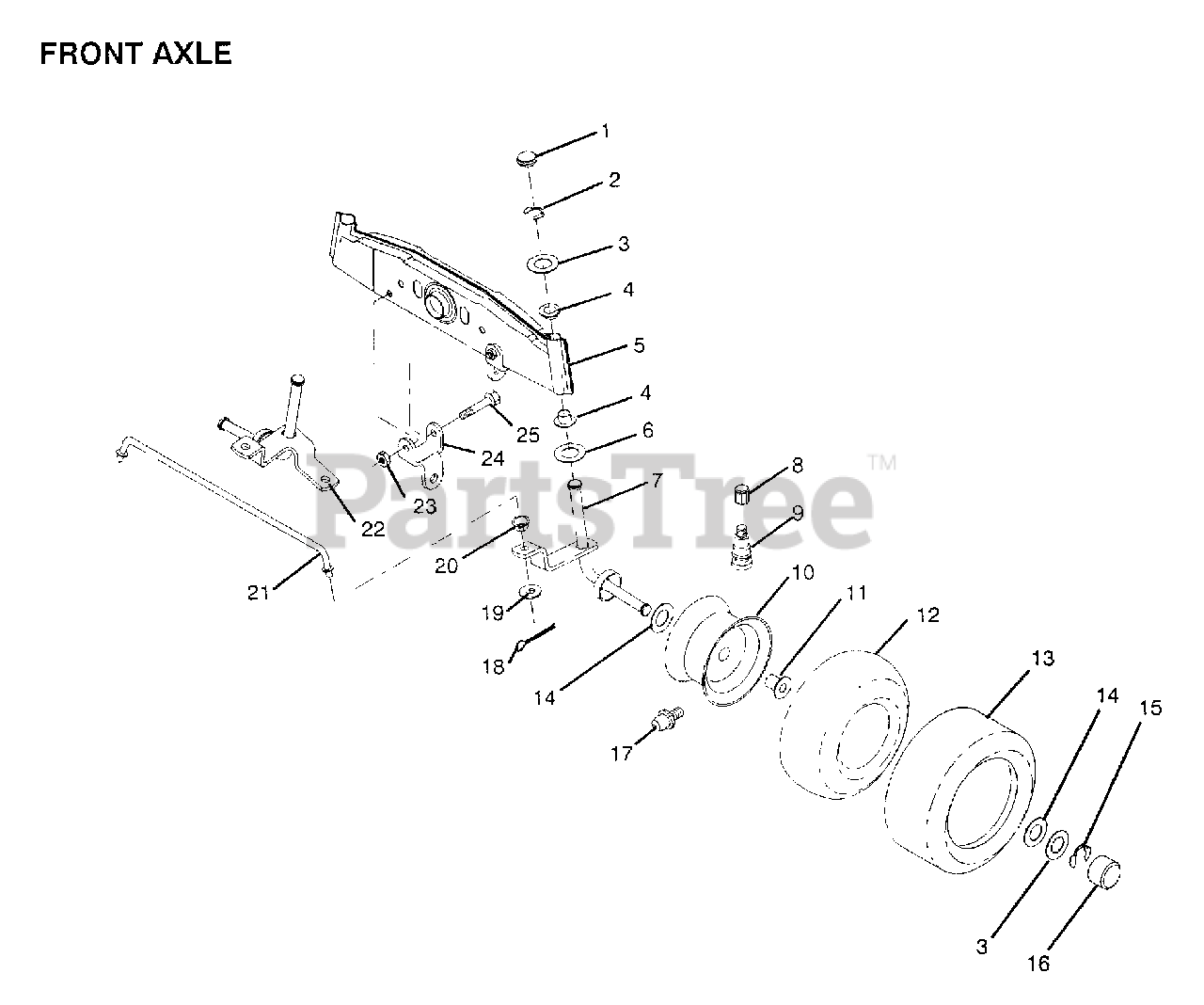

FRONT AXLE Parts Diagram

  • Title
1

Electrolux/AYP 121232X

CAP
(Superseded to 532121232)

$4.99

$

In Stock, Qty 9

0

2

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 127148X

"SWASHPLATE,VARIAB"
(Superseded to 532142937)

$160.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 121922X

NYLINER
(Superseded to 532121922)

$6.99

$

In Stock, Qty 7

0

5

Electrolux/AYP 121914X

AXLE FRONT
(Superseded to 532121914)

$

$

Not available

6

Electrolux/AYP 6266H

WASHER .T
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

7

Electrolux/AYP 121919X

SPINDLE RH
(Superseded to 532121919)

$

$

Not available

8

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

9

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

10

Electrolux/AYP 122394X475

SUB= 137237X475

$

$

Not available

11

Electrolux/AYP 9040H

"FLANGE, BEARING"
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 59904

TUBE.5.3/4.5/6
(Superseded to 532059904)

$37.99

$

In Stock, Qty 7

0

13

Electrolux/AYP 123410X

TIRE
(Superseded to 532123410)

$66.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 104757X

HUB CAP
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 278H

FITTING LT
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

19

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 126847X

BUSHING.DRAGLINK
(Superseded to 532126847)

$5.99

$

In Stock, only 2 left!

0

21

Electrolux/AYP 121924X

ROD TIE
(Superseded to 532121924)

$

$

Not available

22

Electrolux/AYP 121916X

SPINDLE LH
(Superseded to 532121916)

$

$

Not available

23

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 121915X

"BRKT,FRONT STAB"
(Superseded to 532121915)

$

$

Not available

25

Electrolux/AYP 74760540

BOLT
(Superseded to 874760540)

$2.99

$

Usually ships in 3-10 days

0
