X 1236 A - Electrolux/AYP Lawn Tractor (1991) DASH Parts Diagram

Lawn Tractor

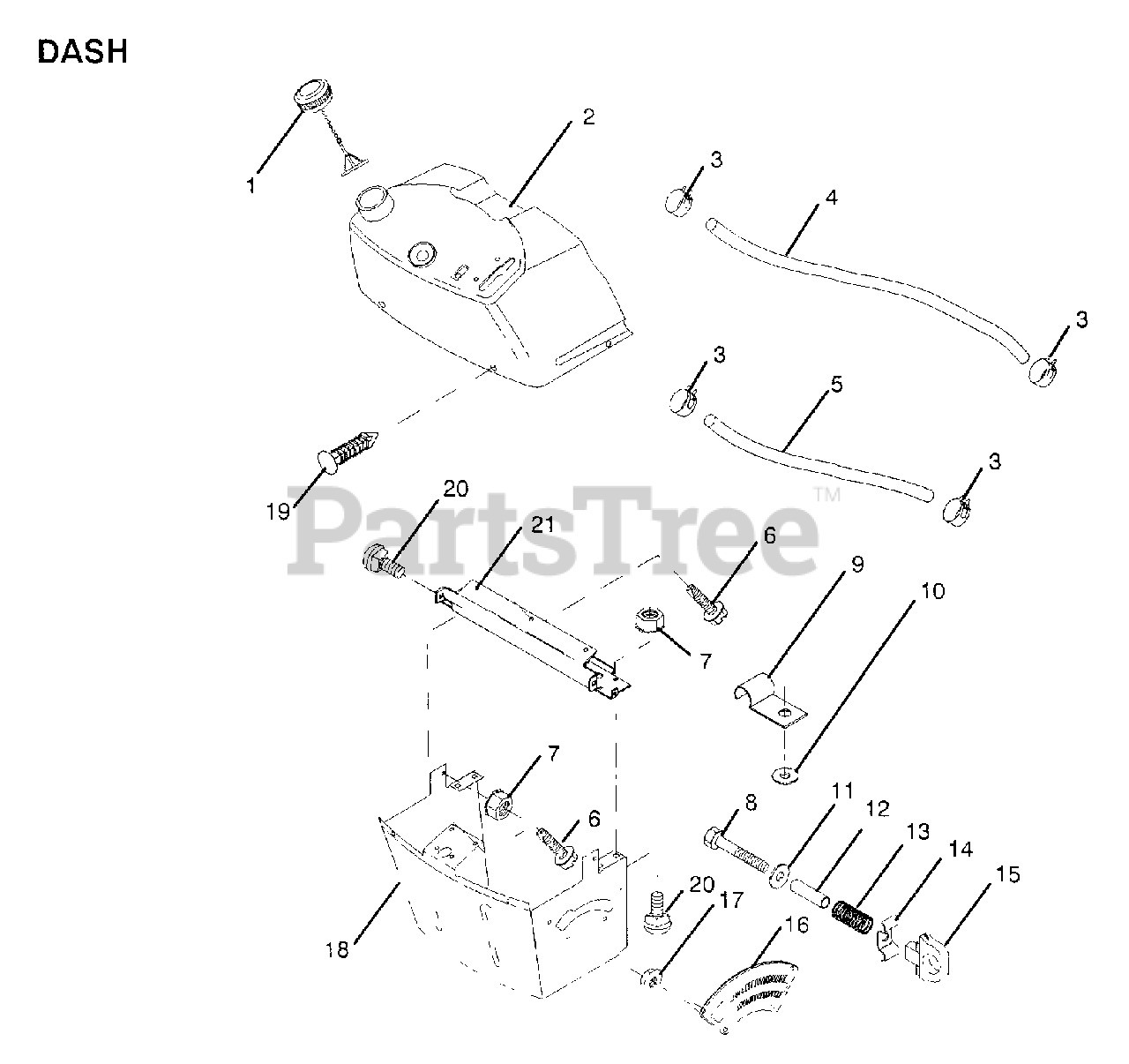

DASH Parts Diagram

  • Title
1

$

$

Not available

2

$

$

Not available

3

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

4

Electrolux/AYP 8548R

FUEL LINE T
(Superseded to 532008548)

$7.99

$

In Stock, only 1 left!

0

5

$

$

Not available

6

Electrolux/AYP 17411310

SUB= 17521312

$

$

Not available

7

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

8

Electrolux/AYP 74760432

BOLT
(Superseded to 874760432)

$9.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

10

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 123494X

SPACER SPLIT
(Superseded to 532123494)

$

$

Not available

13

Electrolux/AYP 2876H

SPRING T
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 123493X

HEIGHT ADJ
(Superseded to 532123493)

$

$

Not available

15

Electrolux/AYP 126115X

KNOB
(Superseded to 532126115)

$

$

Not available

16

Electrolux/AYP 122023X

ADJUSTER QUAD
(Superseded to 532122023)

$9.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 124346X

NUT
(Superseded to 532124346)

$7.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 121789X

SUPPORT DASH
(Superseded to 532121789)

$

$

Not available

19

Electrolux/AYP 122017X

SNAP
(Superseded to 532122017)

$2.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 72110404

BOLT
(Superseded to 872110404)

$9.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 122016X

"BRAKE,CROSS"
(Superseded to 532122016)

$

$

Not available
