WZ 12B36 B - Electrolux/AYP Lawn Tractor ENGINE/THROTTLE Parts Diagram

Lawn Tractor

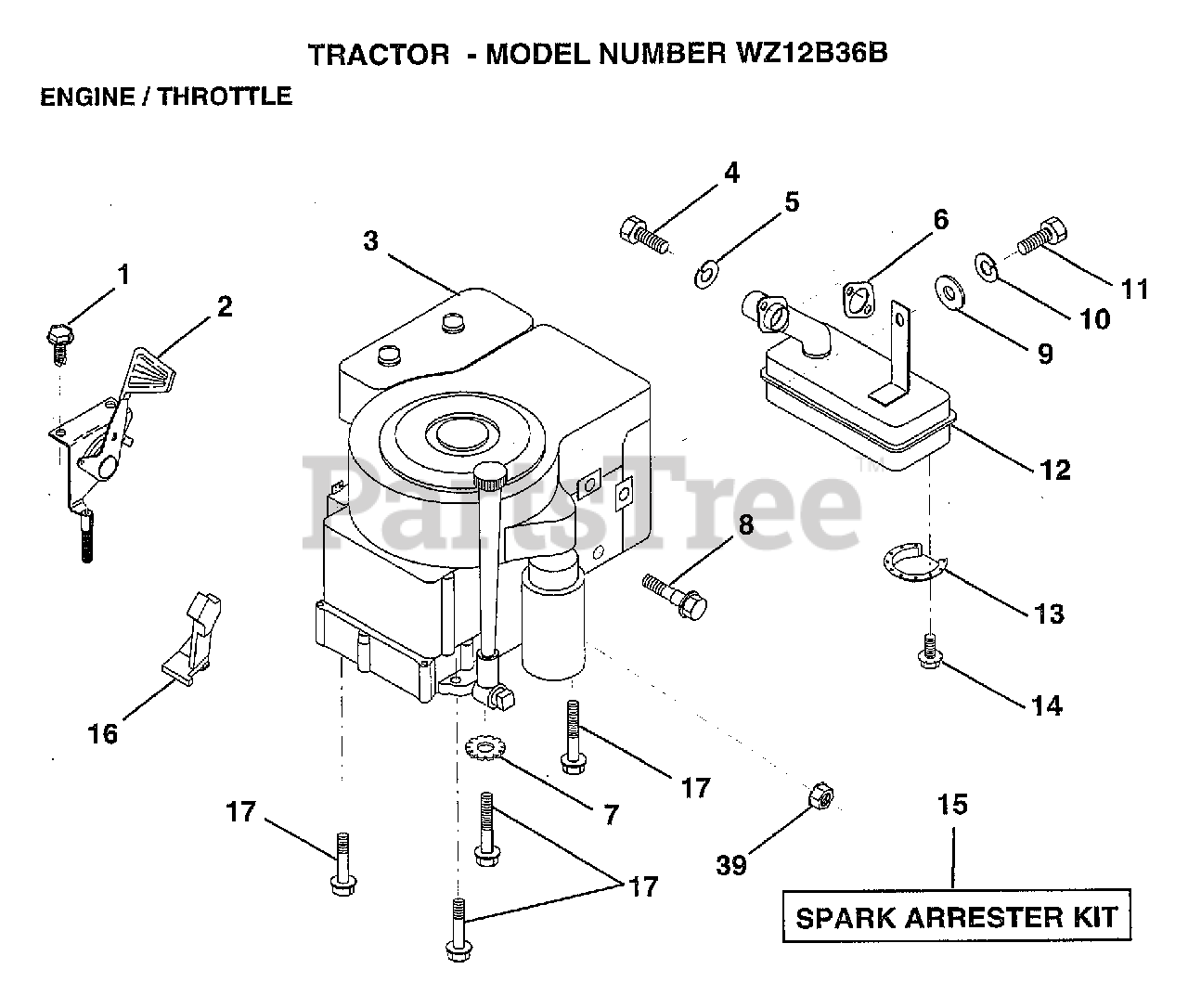

ENGINE/THROTTLE Parts Diagram

  • Title
1

Electrolux/AYP 17060408

SCREW.1/4-20X1/2
(Superseded to 817060408)

$5.99

$

In Stock, only 2 left!

0

2

Electrolux/AYP 133025

SUB= 532133025

$

$

Not available

3

Electrolux/AYP SUPPLIER

CHECK WITH SUPPLIER

$

$

Not available

4

Electrolux/AYP 71070512

SCREW
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

5

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 165291

SUB= 272293
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 121094X

BOLT T
(Superseded to 532121094)

$2.99

$

Usually ships in 3-10 days

0

$

$

Not available

10

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP SUPPLIER

CHECK WITH SUPPLIER

$

$

Not available

12

Electrolux/AYP 137437

MUFFLER
(Superseded to 532137437)

$242.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 101326L

DEFLECTOR.222573
(Superseded to 532101326)

$

$

Not available

14

Electrolux/AYP 17030808

SUB= 17030814
(Superseded to 817030808)

$

$

Not available

15

Electrolux/AYP 137180

SUB= 532137180
(Superseded to 532137180)

$

$

Not available

16

Electrolux/AYP 127951

"STOP,DASH THROTT"
(Superseded to 539127951)

$2.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

39

Electrolux/AYP 128861

NUT
(Superseded to 539128861)

$31.99

$

Usually ships in 3-10 days

0
