WX15 T A (WAHT) - Honda Water Pump, Made in Thailand (SN: WAHT-1000001 - WAHT-1999999) MUFFLER (WX15T) Parts Diagram

Water Pump, Made in Thailand

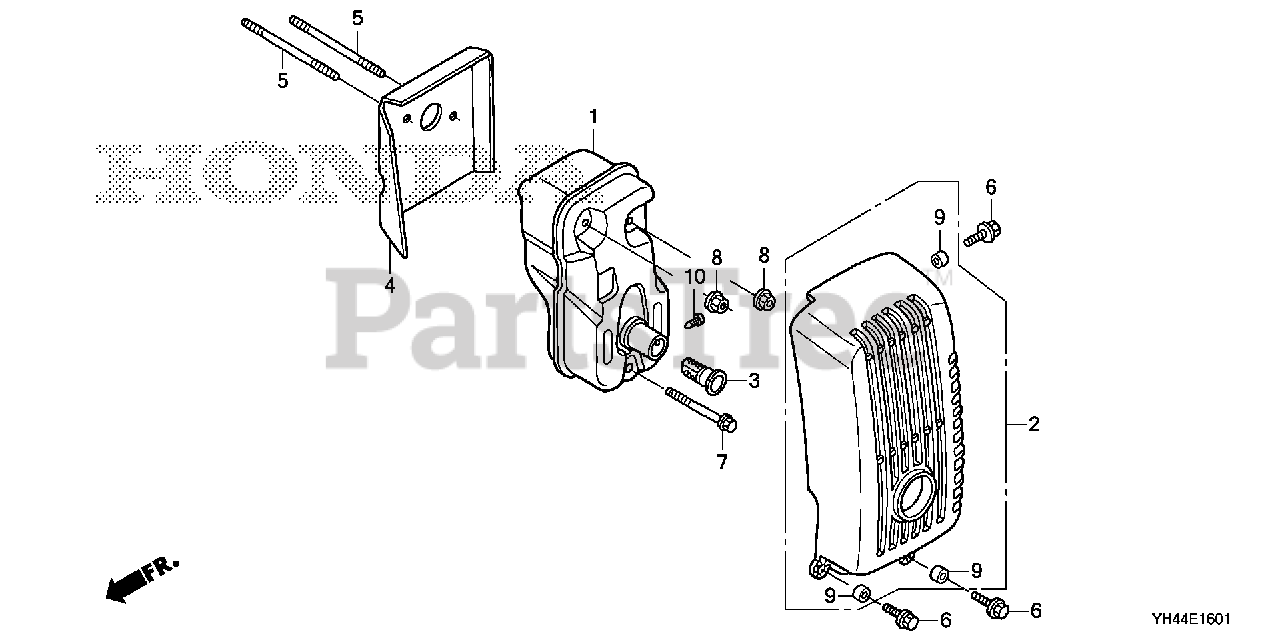

MUFFLER (WX15T) Parts Diagram

  • Title

$14.99

$

Usually ships in 3-6 days

0

1

Honda 18310-ZDF-800

MUFFLER

Note: (Optional).

$221.99

$

Usually ships in 3-6 days

0

2

Honda 18320-ZM7-000

PROTECTOR, MUFFLER

$29.99

$

Usually ships in 3-6 days

0

3

Honda 18350-ZDF-800

ARRESTER, SPARK

Note: (Optional).

$55.99

$

Usually ships in 3-6 days

0

4

Honda 18515-ZM7-000

GUIDE, AIR

$5.49

$

Usually ships in 3-6 days

0

5

Honda 90002-ZM7-000

BOLT 2, STUD (5X55)

$2.49

$

Usually ships in 3-6 days

0

6

Honda 90012-892-000

BOLT, FLANGE (5X16) (Honda Code 0941096).

$1.99

$

In Stock, only 3 left!

0

7

Honda 90103-P4V-010

BOLT, FLANGE (5X35)

$5.49

$

Usually ships in 3-6 days

0

8

Honda 90136-SM4-901

NUT, SELF-LOCK (5MM)

$7.99

$

Usually ships in 3-6 days

0

9

Honda 91502-ZM3-000

COLLAR, TOP COVER

$1.49

$

In Stock, Qty 6

0

10

Honda 93903-24110

SCREW, TAPPING (4X8)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0
