WX15 T A/A (WAHT) - Honda Water Pump, Made in Thailand (SN: WAHT-2000001 - WAHT-9999999) CYLINDER (WX15T) Parts Diagram

Water Pump, Made in Thailand

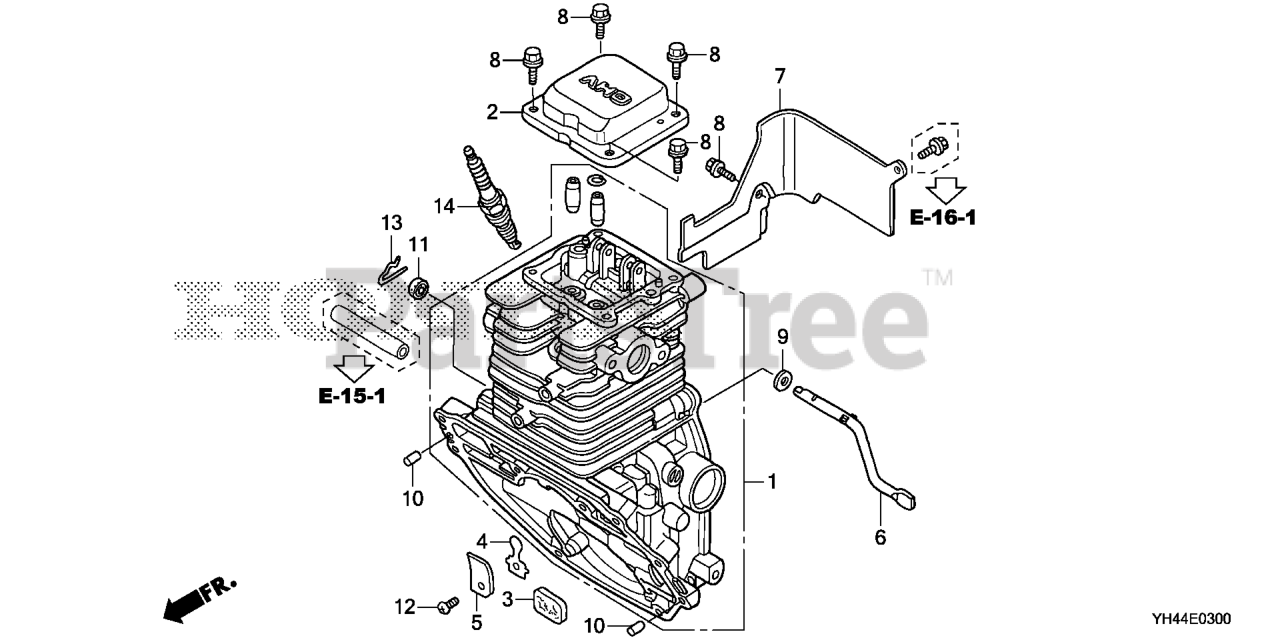

CYLINDER (WX15T) Parts Diagram

  • Title

1

Honda 12100-ZM7-408

CYLINDER

$229.99

$

Usually ships in 3-6 days

0

2

Honda 12311-ZM7-010

SEE PART DETAILS - PRI; COVER, HEAD

$9.99

$

Usually ships in 3-6 days

0

3

Honda 12367-ZM7-000

FILTER, BREATHER

$2.99

$

Usually ships in 3-6 days

0

4

Honda 15571-ZM7-003

VALVE, OIL OUTLET

$3.99

$

Usually ships in 3-6 days

0

5

Honda 15572-ZM7-000

PLATE, STOPPER

$2.49

$

In Stock, only 2 left!

0

6

Honda 16541-ZM7-000

SHAFT, GOVERNOR ARM

$4.99

$

In Stock, only 3 left!

0

7

Honda 19631-ZM7-000

SHROUD

$6.49

$

Usually ships in 3-6 days

0

8

Honda 90003-892-000

BOLT, FLANGE (5X12)

$1.99

$

In Stock, only 1 left!

0

9

Honda 90443-ZC3-000

WASHER (5.2X9)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 91101-Z0G-003

ROLLER (6X14.8)

$6.49

$

Usually ships in 3-6 days

0

11

Honda 91231-ZC3-003

OIL SEAL (5X11X5)

$2.99

$

In Stock, only 2 left!

0

12

Honda 93500-03005-0A

SEE PART DETAILS - PRI; SCREW, PAN (3X5)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 94251-06000

PIN, LOCK (6MM) (Honda Code 0058487).

$1.49

$

In Stock, Qty 11

0

14

Honda 98056-54757

SPARK PLUG (U14FSR-UB) (DENSO)

Note: (Optional)

$8.49

$

In Stock, Qty 7

0

14

Honda 98056-54777

SPARK PLUG (CR4HSB) (NGK)

Note: (Optional)

$3.49

$

In Stock, Qty 5

0

14

Honda 98056-55777

SEE PART DETAILS - PRI; SPARK PLUG (CR5HSB)

$3.49

$

In Stock, Qty 8

0
