WX15 T A/A (WAHT) - Honda Water Pump, Made in Thailand (SN: WAHT-2000001 - WAHT-9999999) CASING (WX15T) Parts Diagram

Water Pump, Made in Thailand

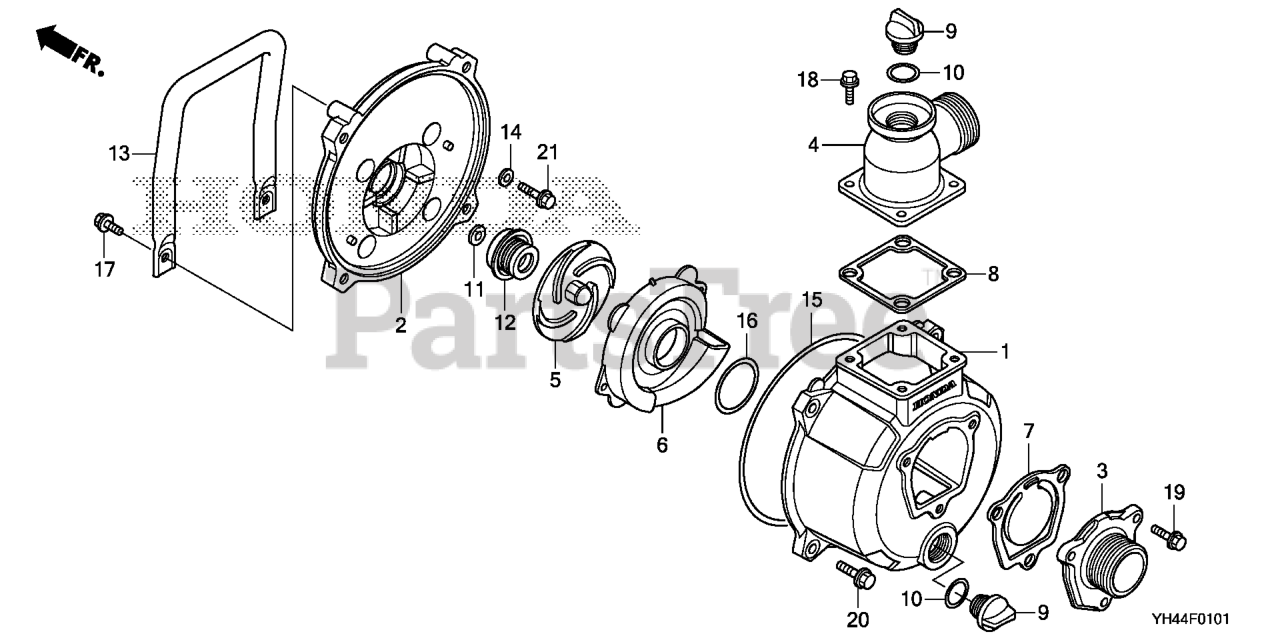

CASING (WX15T) Parts Diagram

  • Title

1

Honda 78101-YH5-610

CASING

$77.99

$

Usually ships in 3-6 days

0

2

Honda 78102-YH5-610

COVER, CASING

$127.99

$

Usually ships in 3-6 days

0

3

Honda 78103-YH5-610

INLET (NPT1 1/2)

$25.99

$

Usually ships in 3-6 days

0

4

Honda 78104-YH5-610

OUTLET (NPT1 1/2)

$37.99

$

In Stock, only 1 left!

0

5

Honda 78106-YH5-610

IMPELLER

$198.99

$

Usually ships in 3-6 days

0

6

Honda 78107-YH5-610

CASE, VOLUTE

$180.99

$

Usually ships in 3-6 days

0

7

Honda 78110-YH5-610

VALVE, IN.

$109.99

$

In Stock, only 1 left!

0

8

Honda 78114-YH5-610

GASKET, OUTLET

$10.99

$

In Stock, only 1 left!

0

9

Honda 78117-YB3-K10

CAP, FILLER

$17.99

$

In Stock, Qty 10

0

10

Honda 91354-YH4-610

O-RING (23.7X3.5)

$0.99

$

In Stock, Qty 20+

0

11

Honda 78122-YH5-610

SEE PART DETAILS - PRI; SHIM, ADJUSTER

$3.49

$

In Stock, only 1 left!

0

12

Honda 78130-YH5-611

SEE PART DETAILS - PRI; SEAL ASSY., MECHANICAL

$37.99

$

In Stock, only 1 left!

0

13

Honda 78206-YH5-610

HANDLE

$11.99

$

In Stock, only 1 left!

0

14

Honda 90501-YH5-610

WASHER, SEALING (6MM)

$7.99

$

Usually ships in 3-6 days

0

15

Honda 91352-YH5-610

O-RING (174X3.5)

$5.99

$

In Stock, only 1 left!

0

16

Honda 91353-YH5-610

O-RING (41.5X5.7)

$7.99

$

Usually ships in 3-6 days

0

17

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

$1.49

$

In Stock, only 4 left!

0

18

Honda 95701-06020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2105815).

$2.49

$

In Stock, only 3 left!

0

19

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (Honda Code 2105831).

$2.49

$

Usually ships in 3-6 days

0

20

Honda 95701-08028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 2581387).

$1.99

$

Usually ships in 3-6 days

0

21

Honda 96001-06028-00

BOLT, FLANGE (6X28)

$2.99

$

Usually ships in 3-6 days

0
