WX15 T A/A (WAHT) - Honda Water Pump, Made in Thailand (SN: WAHT-2000001 - WAHT-9999999) CARBURETOR (WX15T) Parts Diagram

Water Pump, Made in Thailand

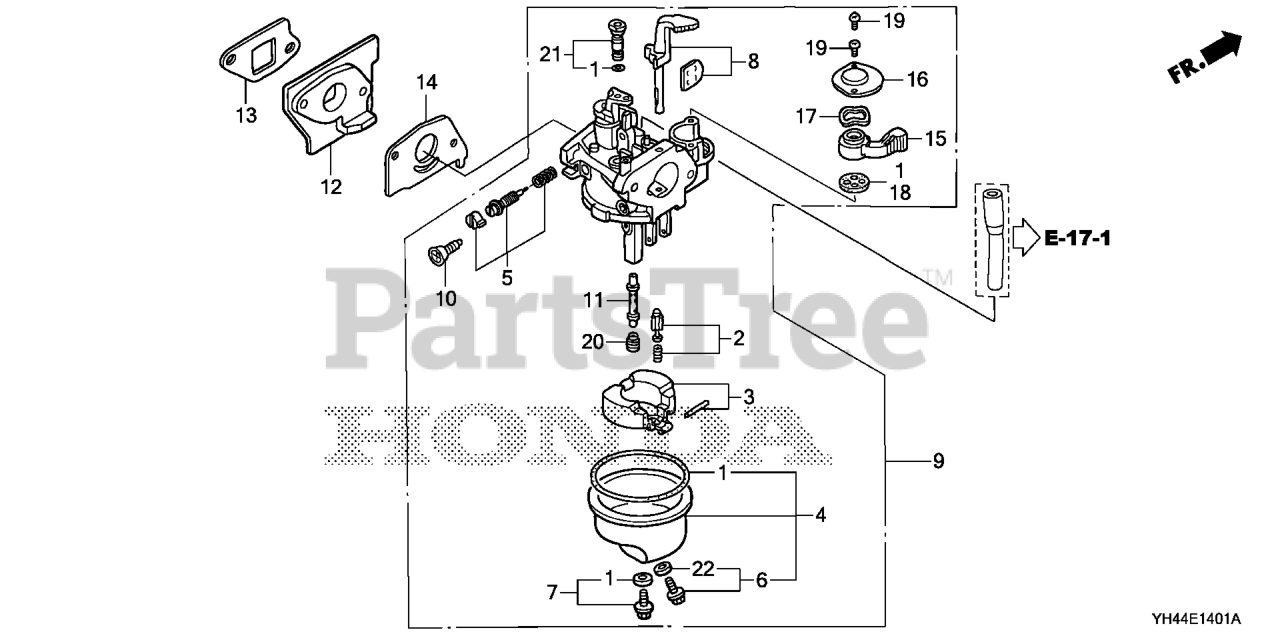

CARBURETOR (WX15T) Parts Diagram

  • Title

1

Honda 16010-ZG1-015

SEE PART DETAILS - PRI; GASKET SET

$19.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (CARBURETOR NO.) (SEAT NOT INCLUDED)

$30.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZG0-811

FLOAT SET

$

$

Not available

4

Honda 16015-ZG0-811

CHAMBER SET, FLOAT (CARBURETOR NO.)

$41.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH8-W01

SCREW SET (Honda Code 4212387).

$12.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187). (CARBURETOR NO.)

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZW6-611

SEE PART DETAILS - PRI; SCREW SET (CARBURETOR NO.)

$15.99

$

Usually ships in 3-6 days

0

8

Honda 16044-ZM7-801

CHOKE SET (CARBURETOR NO.)

$32.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZDF-WB1

CARBURETOR ASSY. (BF32P A)

$49.99

$

Usually ships in 3-6 days

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZDF-WA1

NOZZLE, MAIN

$8.49

$

Usually ships in 3-6 days

0

12

Honda 16211-ZM7-000

INSULATOR, CARBURETOR

$10.99

$

Usually ships in 3-6 days

0

13

Honda 16212-ZM7-000

GASKET, INSULATOR (ENGINE NO.)

$2.49

$

In Stock, Qty 6

0

14

Honda 16221-ZG0-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

15

Honda 16953-ZG0-812

SEE PART DETAILS - PRI; LEVER, VALVE (CARBURETOR NO.)

$12.99

$

Usually ships in 3-6 days

0

16

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

$4.49

$

In Stock, only 1 left!

0

17

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$4.49

$

Usually ships in 3-6 days

0

18

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

$4.49

$

In Stock, Qty 20+

0

19

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654).

$1.49

$

In Stock, only 3 left!

0

20

Honda 99101-ZG0-0500

SEE PART DETAILS - PRI; JET, MAIN (#50) Use from Engine SN BF12A B.

Note: (Optional)

$10.99

$

In Stock, only 1 left!

0

20

Honda 99101-ZG0-0520

SEE PART DETAILS - PRI; JET, MAIN (#52) Use from Engine SN BF12A B.

Note: (Optional)

$10.99

$

Usually ships in 3-6 days

0

20

Honda 99101-ZG0-0550

SEE PART DETAILS - PRI; JET, MAIN (#55) Use from Engine SN BF22B D.

$10.99

$

Usually ships in 3-6 days

0

21

Honda 99204-ZE0-0380

JET SET, PILOT (#38) (Honda Code 3353075).

$23.99

$

In Stock, only 2 left!

0

22

Honda 16141-Z0S-003

WASHER, PLAIN (6.2X10.7 DRAIN) (CARBURETOR NO.)

$0.99

$

Usually ships in 3-6 days

0
