WX15 AX2T (WZBY) - Honda Water Pump, Made in Japan (SN: WZBY-1200001 - WZBY-9999999) FUEL TANK Parts Diagram

Water Pump, Made in Japan

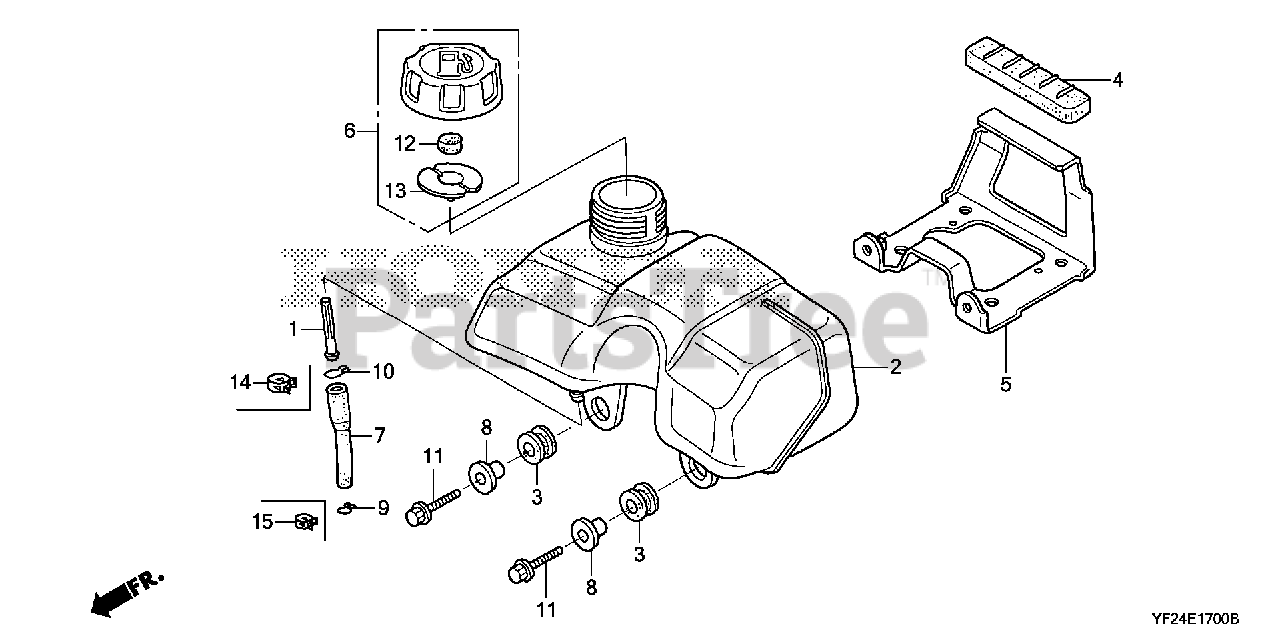

FUEL TANK Parts Diagram

  • Title

1

Honda 16952-ZE6-000

FILTER, FUEL

$9.49

$

In Stock, only 2 left!

0

2

Honda 17511-ZM7-000

SEE PART DETAILS - SUP; TANK, FUEL
(Superseded to 17511-ZM7-010)

Note: Use up to Engine SN 1574706.

$31.99

$

In Stock, only 1 left!

0

2

Honda 17511-ZM7-010

SEE PART DETAILS - PRI; TANK, FUEL

Note: Use from Engine SN 1574707 to 1983970.

$31.99

$

In Stock, only 1 left!

0

2

Honda 17511-Z4C-305

SEE PART DETAILS - PRI; TANK, FUEL (FOR U.S.A.)
(Superseded to 17511-Z4C-810)

Note: Use from Engine SN 1983971.

$

$

Not available

2

Honda 17511-Z4C-810

SEE PART DETAILS - SUP; TANK, FUEL
(Superseded to 17511-Z4C-305)

Note: Use from Engine SN 1983971.

$

$

Not available

3

Honda 17532-ZM7-000

RUBBER A, TANK MOUNTING

$2.49

$

In Stock, only 3 left!

0

4

Honda 17533-ZM7-000

RUBBER B, TANK MOUNTING

$5.49

$

In Stock, only 2 left!

0

5

Honda 17560-ZM7-000

STAY, FUEL TANK

$12.99

$

Usually ships in 3-6 days

0

6

Honda 17620-ZL8-013

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-ZL8-023)

Note: Use up to Engine SN 1877157.

$5.99

$

In Stock, Qty 16

0

6

Honda 17620-ZL8-023

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK

$5.99

$

In Stock, Qty 16

0

7

Honda 17701-ZM7-000

TUBE A, FUEL

Note: Use up to Engine SN 1983970.

$2.49

$

In Stock, only 3 left!

0

7

Honda 17701-Z4C-003

TUBE A, FUEL (FKM)

Note: Use from Engine SN 1983971.

$4.49

$

Usually ships in 3-6 days

0

8

Honda 19052-MB4-880

COLLAR, CANISTER MOUNTING

$5.49

$

Usually ships in 3-6 days

0

9

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use up to Engine SN 1983970.

$2.49

$

In Stock, Qty 20+

0

10

Honda 95002-02100

CLIP, TUBE (B10)

Note: Use up to Engine SN 1983970.

$2.49

$

In Stock, Qty 20+

0

11

Honda 95701-06020-07

BOLT, FLANGE (6X20)

$2.49

$

Usually ships in 3-6 days

0

12

Honda 17622-ZL8-003

SPONGE, FUEL CAP BREATHER

$1.99

$

Usually ships in 3-6 days

0

13

Honda 17624-ZL8-013

GASKET, FUEL CAP

$2.99

$

In Stock, Qty 8

0

14

Honda 95002-41050-08

CLAMP, TUBE (D10.5)

Note: Use from Engine SN 1983971.

$3.49

$

In Stock, Qty 7

0

15

Honda 95002-40800-08

CLAMP, TUBE (D8)

Note: Use from Engine SN 1983971.

$2.99

$

In Stock, Qty 6

0
