WX15 AX2/B (WZBY) - Honda Water Pump, Made in Japan (SN: WZBY-1100001 - WZBY-9999999) CARBURETOR Parts Diagram

Water Pump, Made in Japan

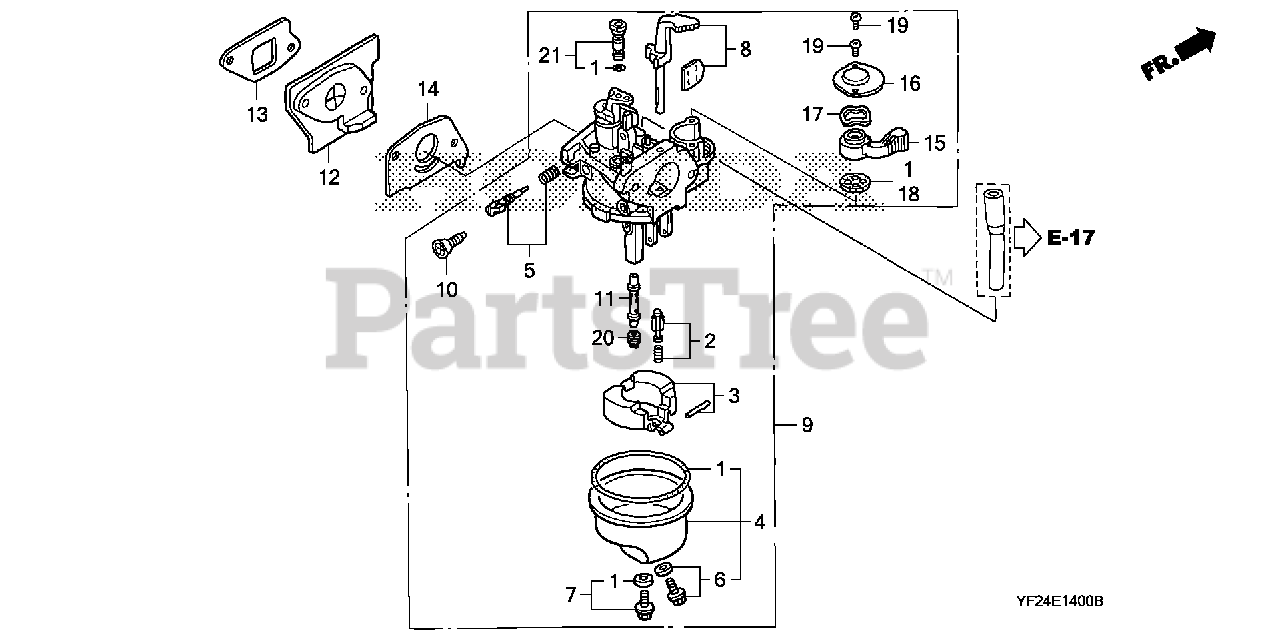

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZG1-015

SEE PART DETAILS - PRI; GASKET SET

$19.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$30.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZG0-811

FLOAT SET

$

$

Not available

4

Honda 16015-ZG0-811

CHAMBER SET, FLOAT

$41.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SCREW SET, PILOT (CARBURETOR NO.)

$21.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZW6-611

SEE PART DETAILS - PRI; SCREW SET

$15.99

$

Usually ships in 3-6 days

0

8

Honda 16044-ZM7-003

CHOKE SET (CARBURETOR NO.)

$42.99

$

Usually ships in 3-6 days

0

8

Honda 16044-ZM7-801

CHOKE SET (CARBURETOR NO.)

$32.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZM7-G12

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BF32E B)
(Superseded to 16100-ZM7-G18)

Note: Use up to Engine SN 1068857.

$79.99

$

In Stock, only 3 left!

0

9

Honda 16100-ZM7-G13

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BF32E C)
(Superseded to 16100-ZM7-G18)

$79.99

$

In Stock, only 3 left!

0

9

Honda 16100-ZM7-G14

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BF32E D)
(Superseded to 16100-ZM7-G18)

$79.99

$

In Stock, only 3 left!

0

9

Honda 16100-ZM7-G18

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BF32E G)

$79.99

$

In Stock, only 3 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZM7-003

NOZZLE, MAIN (CARBURETOR NO.)

$23.99

$

Usually ships in 3-6 days

0

12

Honda 16211-ZM7-000

INSULATOR, CARBURETOR

$10.99

$

Usually ships in 3-6 days

0

13

Honda 16212-ZM7-000

GASKET, INSULATOR

$2.49

$

In Stock, Qty 6

0

14

Honda 16221-ZG0-801

GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

15

Honda 16953-ZG0-812

LEVER, PETCOCK

$12.99

$

Usually ships in 3-6 days

0

16

Honda 16954-ZE1-812

PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

17

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.49

$

Usually ships in 3-6 days

0

18

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.49

$

In Stock, Qty 20+

0

19

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, only 3 left!

0

20

Honda 99101-ZG0-0500

JET, MAIN (#50)

Note: (Optional).

$10.99

$

In Stock, only 1 left!

0

20

Honda 99101-ZG0-0520

JET, MAIN (#52) (CARBURETOR NO.)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

20

Honda 99101-ZG0-0550

SEE PART DETAILS - PRI; JET, MAIN (#55) (CARBURETOR NO.)

$10.99

$

Usually ships in 3-6 days

0

21

Honda 99204-ZE2-0350

JET SET, PILOT (#35)

$14.99

$

Usually ships in 3-6 days
