WX10 T A/A (WAGT) - Honda Water Pump, Made in Thailand (SN: WAGT-2000001 - WAGT-9999999) CASING (WX10T) Parts Diagram

Water Pump, Made in Thailand

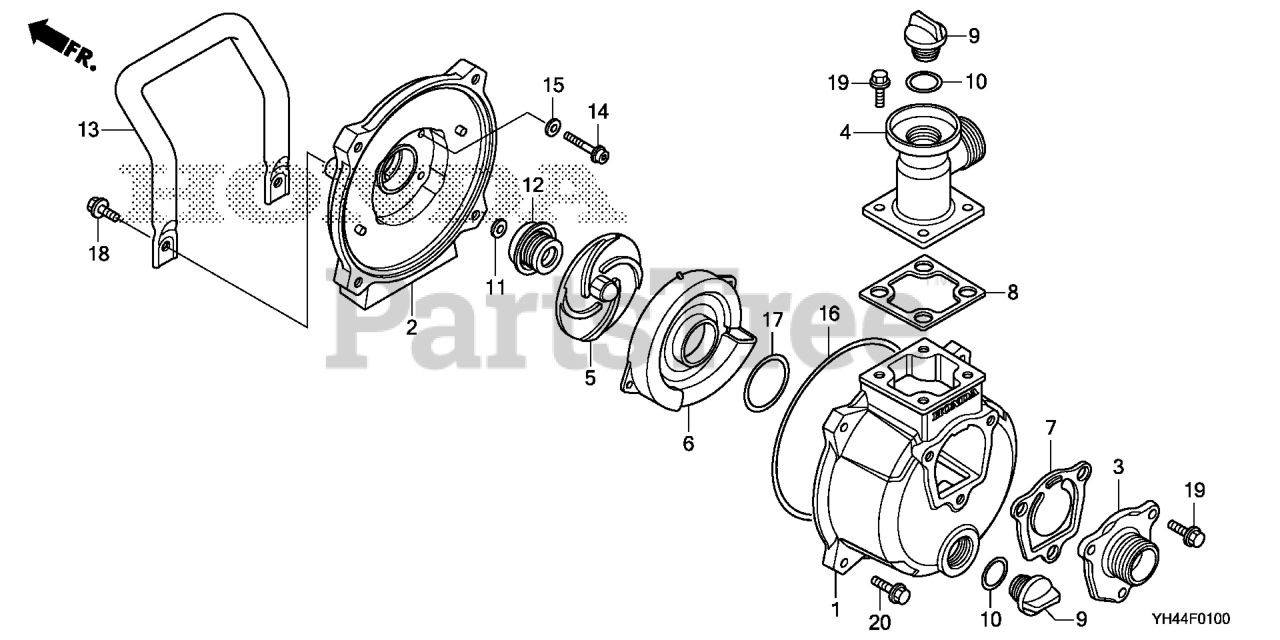

CASING (WX10T) Parts Diagram

  • Title

1

Honda 78101-YH4-610

CASING

$47.99

$

Usually ships in 3-6 days

0

2

Honda 78102-YH4-610

COVER, CASING

$28.99

$

Usually ships in 3-6 days

0

3

Honda 78103-YH4-610

INLET (NPT1)

$11.99

$

In Stock, only 1 left!

0

4

Honda 78104-YH4-610

OUTLET (NPT1)

$21.99

$

Usually ships in 3-6 days

0

5

Honda 78106-YH4-610

IMPELLER

$12.99

$

In Stock, only 1 left!

0

6

Honda 78107-YH4-610

CASE, VOLUTE

$15.99

$

In Stock, only 1 left!

0

7

Honda 78110-YH4-610

VALVE, IN.

$5.49

$

In Stock, only 1 left!

0

8

Honda 78114-YH4-610

GASKET, OUTLET

$9.99

$

In Stock, only 1 left!

0

9

Honda 78117-YB3-K10

CAP, FILLER

$15.99

$

In Stock, only 1 left!

0

10

Honda 91354-YH4-610

O-RING (23.7X3.5)

$0.99

$

In Stock, only 4 left!

0

11

Honda 78122-YH4-610

SEE PART DETAILS - PRI; SHIM, ADJUSTER

$2.99

$

In Stock, only 4 left!

0

12

Honda 78130-YH4-611

SEE PART DETAILS - PRI; SEAL ASSY., MECHANICAL

$26.99

$

In Stock, only 1 left!

0

13

Honda 78206-YH4-610

HANDLE

$11.99

$

Usually ships in 3-6 days

0

14

Honda 90110-YH4-610

BOLT, FLANGE SOCKET (5X35)

$4.99

$

In Stock, only 3 left!

0

15

Honda 90452-323-000

WASHER, SEALING (5MM)

$2.49

$

In Stock, Qty 6

0

16

Honda 91352-YH4-610

O-RING (140X3.5)

$5.99

$

In Stock, Qty 14

0

17

Honda 91353-YH4-610

O-RING (36.5X5.7)

$4.99

$

In Stock, only 1 left!

0

18

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

$1.49

$

In Stock, Qty 9

0

19

Honda 95701-06020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2105815).

$2.49

$

In Stock, Qty 9

0

20

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (Honda Code 2105831).

$2.49

$

In Stock, Qty 8

0
