WX10 T A/A (WAGT) - Honda Water Pump, Made in Thailand (SN: WAGT-2000001 - WAGT-9999999) CARBURETOR (WX10T) Parts Diagram

Water Pump, Made in Thailand

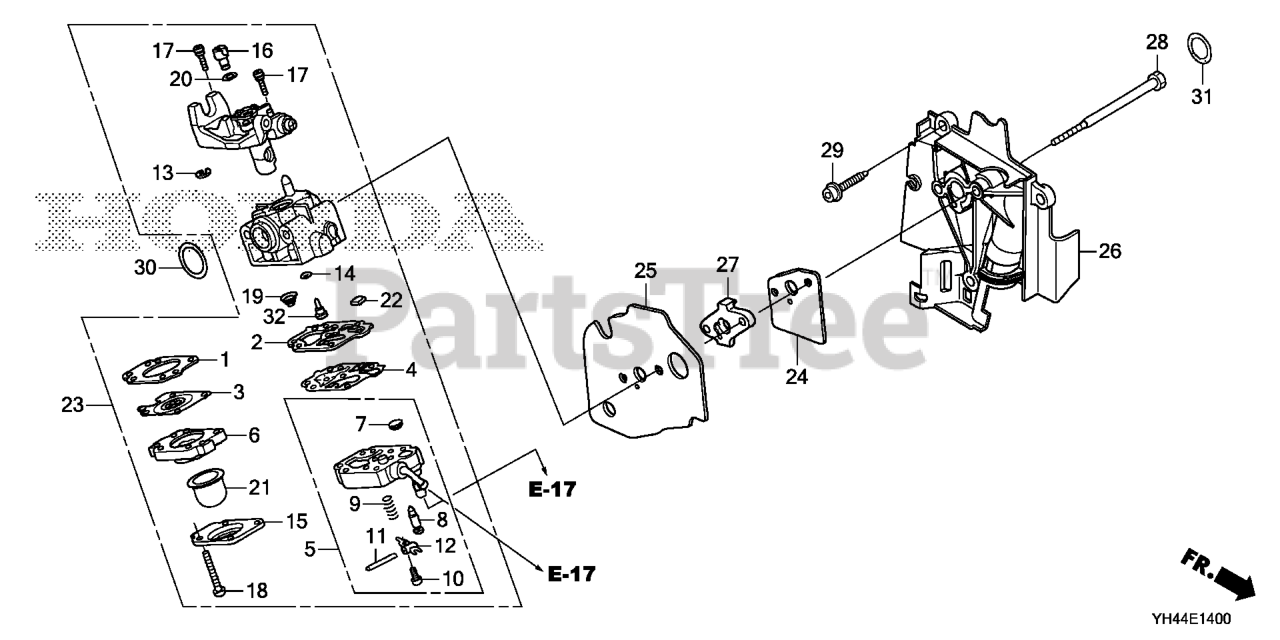

CARBURETOR (WX10T) Parts Diagram

  • Title

1

Honda 16010-ZM3-004

GASKET, METERING DIAPHRAGM

$2.49

$

In Stock, Qty 6

0

2

Honda 16011-Z0H-013

GASKET, PUMP (CARBURETOR NO.)

$4.99

$

In Stock, Qty 11

0

3

Honda 16013-Z0H-003

DIAPHRAGM ASSY., METERING

$19.99

$

In Stock, Qty 6

0

4

Honda 16014-ZM3-004

DIAPHRAGM, PUMP

$4.99

$

In Stock, Qty 20+

0

5

Honda 16015-Z6J-013

BODY ASSY., PUMP (CARBURETOR NO.)
(Superseded to 16015-Z6J-023)

$45.99

$

In Stock, only 1 left!

0

5

Honda 16015-Z6J-023

BODY ASSY., PUMP

$45.99

$

In Stock, only 1 left!

0

6

Honda 16017-ZM3-004

BODY ASSY., AIR PURGE

$10.99

$

In Stock, Qty 8

0

7

Honda 16018-ZM3-802

SCREEN, INLET (CARBURETOR NO.)

$1.49

$

In Stock, Qty 6

0

8

Honda 16019-ZM3-004

VALVE, INLET NEEDLE

$5.99

$

In Stock, only 1 left!

0

9

Honda 16020-ZM3-004

SPRING, METERING LEVER

$2.49

$

In Stock, only 2 left!

0

10

Honda 16021-ZM3-004

SCREW, METERING LEVER PIN

$2.49

$

In Stock, only 2 left!

0

11

Honda 16022-ZM3-014

SEE PART DETAILS - PRI; PIN, METERING LEVER

$2.49

$

In Stock, only 2 left!

0

12

Honda 16023-ZM3-004

LEVER, METERING

$2.99

$

In Stock, Qty 6

0

13

Honda 16024-Z0H-003

RING, RETAINING

$2.49

$

In Stock, Qty 5

0

14

Honda 16025-ZM3-004

O-RING

$2.99

$

In Stock, Qty 8

0

15

Honda 16026-ZM3-004

COVER, PRIMER PUMP

$4.49

$

In Stock, only 1 left!

0

16

Honda 16027-ZM3-004

SWIVEL

$3.49

$

Usually ships in 3-6 days

0

17

Honda 16028-ZM3-004

SCREW, THROTTLE COLLAR

$1.99

$

In Stock, only 3 left!

0

18

Honda 16029-ZM3-004

SCREW, PUMP COVER

$1.99

$

In Stock, Qty 6

0

19

Honda 16030-ZM3-004

SPRING, PUMP

$1.99

$

In Stock, only 3 left!

0

20

Honda 16031-ZM3-004

WASHER

$1.99

$

Usually ships in 3-6 days

0

21

Honda 16032-ZM3-004

PUMP, PRIMER

$2.99

$

In Stock, Qty 20+

0

22

Honda 16035-ZM3-802

FILTER, FUEL INLET (CARBURETOR NO.)

$11.99

$

In Stock, only 1 left!

0

23

Honda 16100-Z6J-WC2

CARBURETOR ASSY. (WYB 47)

$

$

Currently unavailable

24

Honda 16221-ZM3-G10

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$5.99

$

In Stock, Qty 8

0

25

Honda 16222-Z0H-801

GASKET, SHROUD

$1.49

$

In Stock, only 4 left!

0

26

Honda 19631-Z0H-010

SHROUD

$12.99

$

In Stock, Qty 5

0

27

Honda 19632-Z0H-800

SPACER, SHROUD

$8.49

$

In Stock, Qty 5

0

28

Honda 90014-Z3F-000

SEE PART DETAILS - PRI; BOLT (5X58)

$3.49

$

Usually ships in 3-6 days

0

29

Honda 90018-Z3E-901

BOLT, SOCKET (5X16)

$4.99

$

Usually ships in 3-6 days

0

30

Honda 91301-ZM3-000

O-RING (14.8X2.4)

$1.49

$

In Stock, only 3 left!

0

31

Honda 91308-Z3E-000

O-RING (12.3X2.4) (CARBURETOR NO.)

$1.99

$

In Stock, Qty 10

0

32

Honda 99101-ZM5-0330

JET (#33) (CARBURETOR NO.)

Note: (Optional)

$11.99

$

In Stock, only 1 left!

0

32

Honda 99101-ZM5-0340

JET (#34) (CARBURETOR NO.)

Note: (Optional)

$12.99

$

Usually ships in 3-6 days

0

32

Honda 99101-ZM5-0350

JET (#35) (CARBURETOR NO.)

$11.99

$

Usually ships in 3-6 days

0
