WX10 K1 AT (WATJ) - Honda Water Pump, Made in Japan (SN: WATJ-1100001 - WATJ-9999999) CASING Parts Diagram

Water Pump, Made in Japan

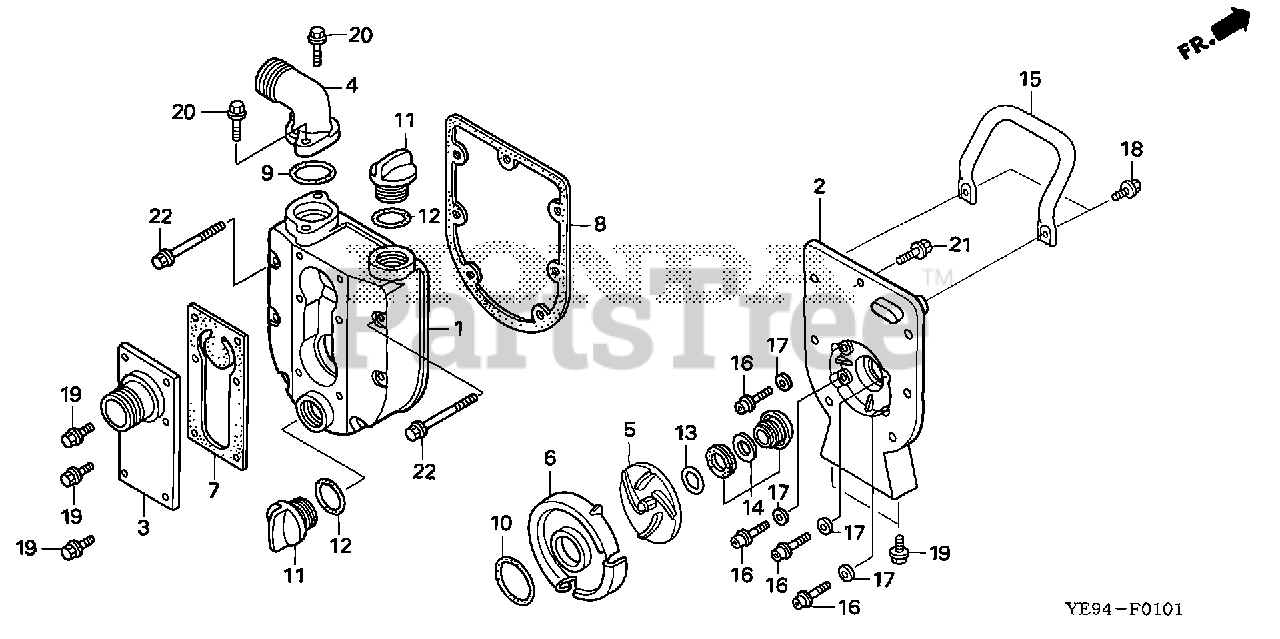

CASING Parts Diagram

  • Title
1

Honda 78101-YE9-013

SEE PART DETAILS - SUP; CASING
(Superseded to 78101-YE9-505)

$105.99

$

In Stock, only 1 left!

0

1

Honda 78101-YE9-505

SEE PART DETAILS - PRI; CASING

$105.99

$

In Stock, only 1 left!

0

2

Honda 78102-YE9-B01

SEE PART DETAILS - SUP; PLATE, END
(Superseded to 78102-YE9-506)

$70.99

$

In Stock, only 1 left!

0

2

Honda 78102-YE9-506

SEE PART DETAILS - PRI; PLATE, END

$70.99

$

In Stock, only 1 left!

0

3

Honda 78103-YE9-506

SEE PART DETAILS - PRI; PLATE, SUCTION

$33.99

$

Usually ships in 3-6 days

0

3

Honda 78103-YE9-611

SEE PART DETAILS - SUP; PLATE, SUCTION
(Superseded to 78103-YE9-506)

$33.99

$

Usually ships in 3-6 days

0

4

Honda 78104-YE9-611

PIPE, OUTLET
(Superseded to 78104-YE9-506)

$28.99

$

Usually ships in 3-6 days

0

5

Honda 78106-YE9-B01

SEE PART DETAILS - SUP; IMPELLER
(Superseded to 78106-YE9-506)

$19.99

$

In Stock, only 2 left!

0

5

Honda 78106-YE9-506

SEE PART DETAILS - PRI; IMPELLER

$19.99

$

In Stock, only 2 left!

0

6

Honda 78107-YE9-B01

SEE PART DETAILS - SUP; CASE, VOLUTE
(Superseded to 78107-YE9-506)

$28.99

$

In Stock, only 2 left!

0

6

Honda 78107-YE9-506

SEE PART DETAILS - PRI; CASE, VOLUTE

$28.99

$

In Stock, only 2 left!

0

7

Honda 78110-YE9-003

GASKET, SUCTION
(Superseded to 78110-YE9-505)

$9.49

$

In Stock, Qty 9

0

8

Honda 78112-YE9-003

SEE PART DETAILS - SUP; GASKET, END PLATE
(Superseded to 78112-YE9-505)

$6.99

$

In Stock, Qty 9

0

8

Honda 78112-YE9-505

SEE PART DETAILS - PRI; GASKET, END PLATE

$6.99

$

In Stock, Qty 9

0

9

Honda 78114-YE9-003

SEE PART DETAILS - SUP; O-RING
(Superseded to 78114-YE9-505)

$4.99

$

In Stock, only 1 left!

0

9

Honda 78114-YE9-505

SEE PART DETAILS - PRI; O-RING

$4.99

$

In Stock, only 1 left!

0

10

Honda 78115-YE9-003

SEE PART DETAILS - SUP; RING A, SEAL
(Superseded to 78115-YE9-505)

$5.49

$

In Stock, Qty 10

0

10

Honda 78115-YE9-505

SEE PART DETAILS - PRI; RING A, SEAL

$5.49

$

In Stock, Qty 10

0

11

Honda 78117-YB7-020

SEE PART DETAILS - PRI; CAP, FILLER

$14.99

$

In Stock, only 2 left!

0

12

Honda 78118-YB0-003

SEE PART DETAILS - SUP; RING, SEAL (B)
(Superseded to 78118-YB0-004)

$10.99

$

In Stock, Qty 7

0

12

Honda 78118-YB0-004

SEE PART DETAILS - PRI; RING, SEAL (B)

$10.99

$

In Stock, Qty 7

0

13

Honda 78122-YE9-000

SEE PART DETAILS - SUP; SHIM, ADJUSTER
(Superseded to 78122-YH4-610)

$2.99

$

In Stock, only 2 left!

0

13

Honda 78122-YH4-610

SEE PART DETAILS - PRI; SHIM, ADJUSTER

$2.99

$

In Stock, only 2 left!

0

14

Honda 78130-YE9-B01

SEE PART DETAILS - SUP; SEAL ASSY., MECHANICAL
(Superseded to 78130-YH4-611)

$27.99

$

In Stock, Qty 7

0

14

Honda 78130-YH4-611

SEE PART DETAILS - PRI; SEAL ASSY., MECHANICAL

$27.99

$

In Stock, Qty 7

0

$33.99

$

Usually ships in 3-6 days

0

16

Honda 90110-YE9-B00

BOLT, FLANGE SOCKET (5X35)

$3.99

$

Usually ships in 3-6 days

0

17

Honda 90452-323-000

WASHER, SEALING (5MM)

$2.49

$

In Stock, Qty 20+

0

18

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

19

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 8

0

20

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

In Stock, Qty 6

0

21

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

In Stock, Qty 6

0

22

Honda 95701-06055-00

BOLT, FLANGE (6X55)

$2.99

$

In Stock, only 4 left!

0
