WX10 K1 A (WATJ) - Honda Water Pump, Made in Japan (SN: WATJ-1000001 - WATJ-1099999) FUEL TANK Parts Diagram

Water Pump, Made in Japan

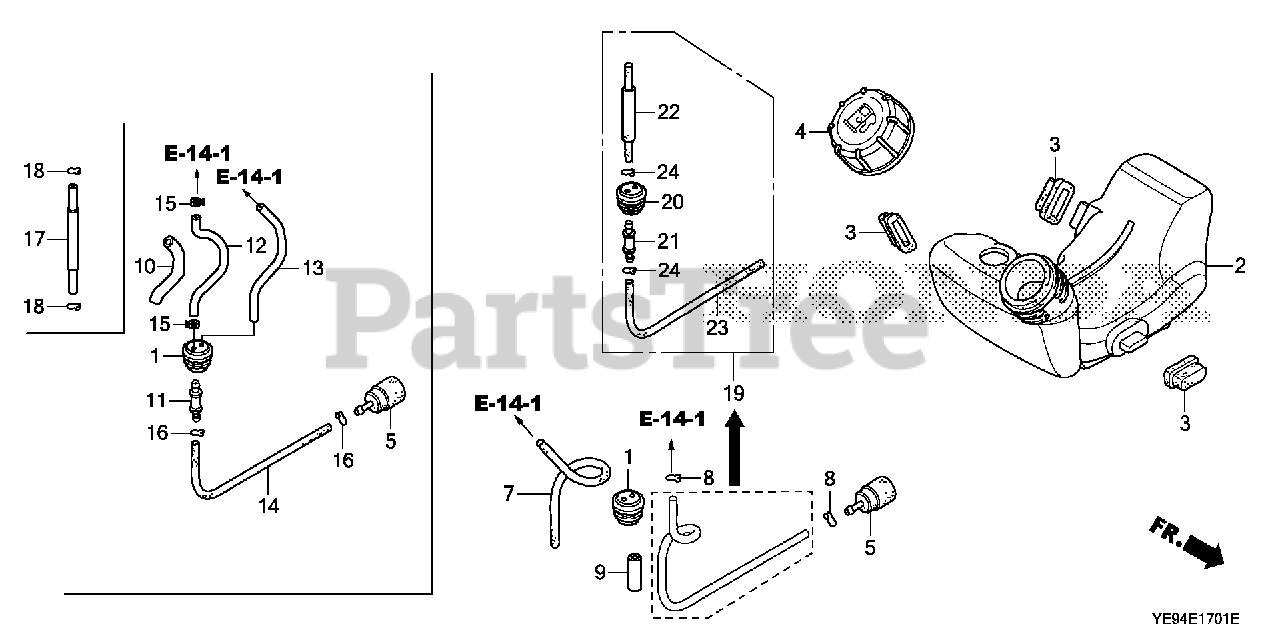

FUEL TANK Parts Diagram

  • Title

1

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

$4.49

$

In Stock, Qty 18

0

2

Honda 17511-Z0H-023

SEE PART DETAILS - SUP; TANK, FUEL
(Superseded to 17511-Z0H-305)

$33.99

$

Usually ships in 3-6 days

0

2

Honda 17511-Z0H-305

SEE PART DETAILS - PRI; TANK, FUEL (FOR U.S.A.)

$33.99

$

Usually ships in 3-6 days

0

3

Honda 17533-Z0H-000

RUBBER, TANK MOUNTING

$1.99

$

In Stock, Qty 20+

0

4

Honda 17620-ZM3-053

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-ZM3-073)

$13.99

$

In Stock, only 2 left!

0

4

Honda 17620-ZM3-063

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK
(Superseded to 17620-ZM3-073)

$13.99

$

In Stock, only 2 left!

0

5

Honda 17672-Z0H-003

SEE PART DETAILS - PRI; FILTER, FUEL

$6.99

$

In Stock, only 2 left!

0

7

Honda 17702-Z0H-003

TUBE, FUEL RETURN

$2.49

$

In Stock, only 4 left!

0

8

Honda 91401-ZM3-003

CLIP, TUBE

$1.99

$

In Stock, only 3 left!

0

19

Honda 17700-Z0H-305

GROMMET ASSY., FUEL TANK

$

$

Not available

20

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

Note: (Optional).

$4.49

$

In Stock, Qty 18

0

21

Honda 17519-ZM5-003

FITTING

Note: (Optional).

$5.99

$

In Stock, Qty 19

0

22

Honda 17701-Z0H-800

SEE PART DETAILS - SUP; TUBE, FUEL FEED
(Superseded to 17701-Z3E-305)

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

22

Honda 17701-Z3E-305

SEE PART DETAILS - PRI; TUBE, FUEL FEED

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

23

Honda 17703-Z0H-J71

TUBE A, FUEL

Note: (Optional).

$11.99

$

In Stock, only 2 left!

0

24

Honda 91401-ZM3-003

CLIP, TUBE

Note: (Optional).

$1.99

$

In Stock, only 3 left!

0
