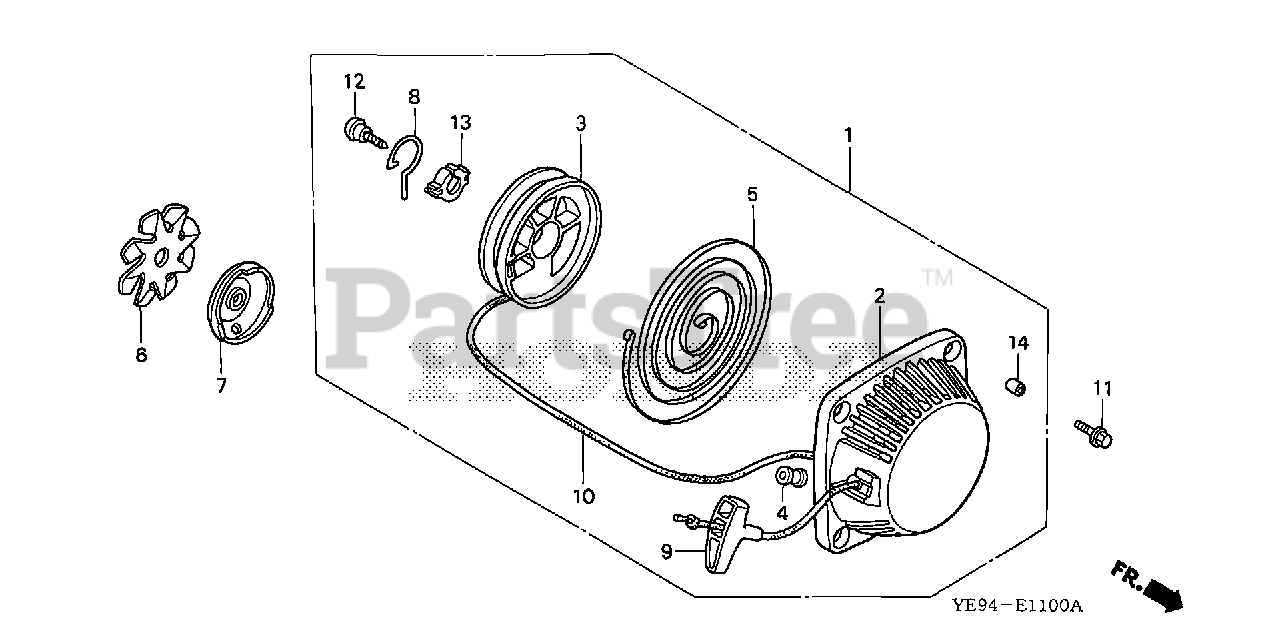

WX10 A4/A (WZBR) - Honda Water Pump, Made in Japan (SN: WZBR-1100001 - WZBR-9999999) RECOIL STARTER Parts Diagram

Water Pump, Made in Japan

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZM3-003ZA

STARTER ASSY., RECOIL *NH1* (BLACK)

$29.99

$

Usually ships in 3-6 days

0

2

Honda 28414-ZM3-003

CASE, RECOIL STARTER

$

$

Not available

3

Honda 28421-ZM3-003

REEL, RECOIL STARTER

$10.99

$

In Stock, Qty 6

0

4

Honda 28433-ZM3-003

GUIDE, ROPE

$2.49

$

In Stock, only 4 left!

0

5

Honda 28442-ZM3-003

SPRING, RECOIL STARTER

$13.99

$

Usually ships in 3-6 days

0

6

Honda 28447-ZM3-000

FAN, RATCHET

$3.49

$

In Stock, only 1 left!

0

7

Honda 28451-ZM3-003

PULLEY, RECOIL STARTER

$7.49

$

Usually ships in 3-6 days

0

8

Honda 28459-ZM3-003

SWINGARM

$4.99

$

In Stock, only 2 left!

0

9

Honda 28461-ZM3-003

KNOB, RECOIL STARTER

$4.49

$

Usually ships in 3-6 days

0

10

Honda 28462-ZM3-003

ROPE, RECOIL STARTER

$5.99

$

In Stock, only 1 left!

0

11

Honda 90005-ZM3-000

BOLT, FLANGE (5X18)

$1.99

$

In Stock, Qty 5

0

12

Honda 90012-ZM3-003

SCREW, SETTING

$1.99

$

Usually ships in 3-6 days

0

13

Honda 91504-ZM3-003

COLLAR

$1.99

$

In Stock, only 3 left!

0

14

Honda 91505-ZM3-003

COLLAR

$

$

Not available
