WV 190 S - Bear Cat Walk-Behind Vacuum, 190cc Briggs & Stratton (SN: E06542 - H07101) WV160S & WV190S Engine (Self-Propelled) (SN: F01509 - H07101) Parts Diagram

Walk-Behind Vacuum, 190cc Briggs & Stratton

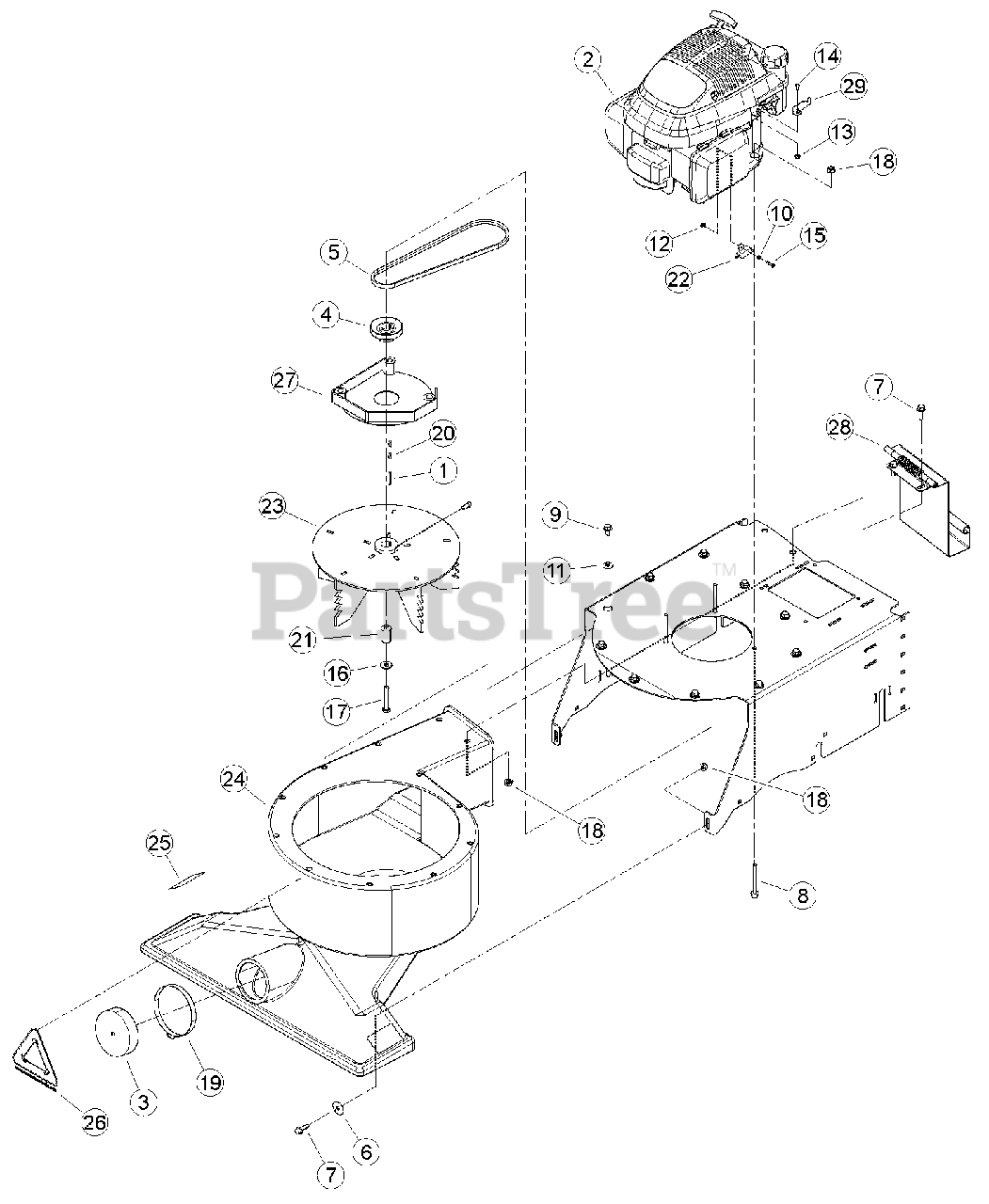

WV160S & WV190S Engine (Self-Propelled) (SN: F01509 - H07101) Parts Diagram

  • Title

1

7022

KEY, 3/16 SQ X 1-1/4" PLAIN

$

$

Not available

2

ENGINE, 190CC B+S INTEK/IC VERTICAL (WV190S ONLY) (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR NEAREST BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER)

$

$

Not available

3

Bear Cat 13850-00

CAP, ROUND VINYL

$19.99

$

Usually ships in 3-7 days

0

4

Bear Cat 13855-00

PULLEY, 2.85 O.D. X 7/8" BORE

$82.99

$

Usually ships in 3-7 days

0

5

Bear Cat 13884-00

BELT, SP BEARVAC

$35.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15040

WASHER, 5/16" FENDER ZP

$0.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

8

15144-00

BOLT, 5/16 X 2-3/4 FLANGE NC (WV190S ONLY)

$

$

Not available

9

15160-00

BOLT, 5/16 X 5/8 FLANGE NC

$

$

Not available

10

Bear Cat 15209

WASHER, #8 SAE (WV160S ONLY)

$

$

Not available

11

Bear Cat 15250

WASHER, 5/16 FLAT

$

$

Not available

12

15255

NUT, 8-32 NYLOCK (WV160S ONLY)

$

$

Not available

13

15397

NUT, 10/24 NYLOCK TYPE NM ZP (WV160S ONLY)

$

$

Not available

14

15423

SCREW, MCH 10-24 X 1/2" PAN HD PH ZP (WV160S ONLY)

$

$

Not available

15

15550

SCREW, MCH 8-32 X 3/4 PHP RDHD (WV160S ONLY)

$

$

Not available

16

15665-00

WASHER, 3/8 GR8 USS ZP

$

$

Not available

17

Bear Cat 15698-00

BOLT, 3/8 X 2-1/4" NF GR8 ZP HHCS

$3.99

$

Usually ships in 3-7 days

0

18

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

19

Bear Cat 16196

CLAMP, 4" HOSE

$

$

Not available

20

Bear Cat 16692

KEY, 3/16 X 5/32" / 4MM WOODRUFF JUMP

$

$

Not available

21

23668

SPACER, .88 X 1.25

$

$

Not available

22

Bear Cat 31342-00

SWITCH, HONDA ENGINE KILL (WV160S ONLY)

$43.99

$

Usually ships in 3-7 days

0

23

Bear Cat 70337-00

WELDMENT, BEARVAC ROTOR

$492.99

$

Usually ships in 3-7 days

0

24

Bear Cat 70747-00

ASSEMBLY, FAN INTAKE HOUSING W/ DECALS (INCLUDES ITEMS 25 & 26)
(Superseded to 73714-00)

$393.99

$

Usually ships in 3-7 days

0

25

Bear Cat 13890-00

DECAL, DANGER

$9.49

$

Usually ships in 3-7 days

0

26

31541-00

LOGO, COLLECT IT (WHITE)

$

$

Not available

27

Bear Cat 73626-12

WELDMENT, BEARVAC ENGINE SUPPORT

$

$

Not available

28

Bear Cat 73645-00

ASSEMBLY, EXHAUST DOOR

$218.99

$

Usually ships in 3-7 days

0

29

Bear Cat 76696-12

PLATE, HONDA BRAKE HOLDER (WV160S ONLY)

$

$

Not available
