WV 190 S - Bear Cat Walk-Behind Vacuum, 190cc Briggs & Stratton (SN: D00001 - E05370) WV190S Engine & Fan (Self-Propelled) Parts Diagram

Walk-Behind Vacuum, 190cc Briggs & Stratton

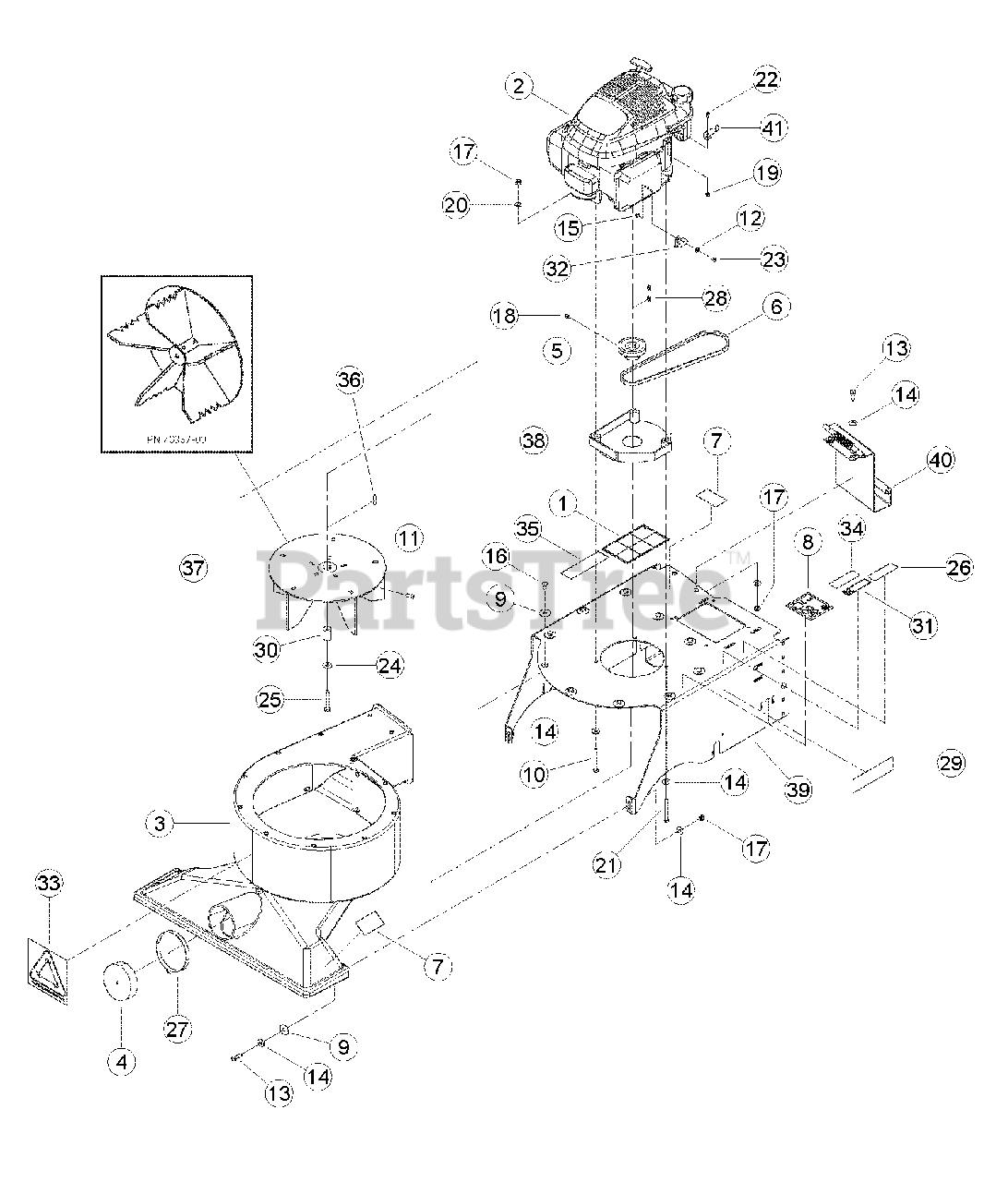

WV190S Engine & Fan (Self-Propelled) Parts Diagram

  • Title

1

Bear Cat 12172

DECAL, PROTECTION

$7.49

$

Usually ships in 3-7 days

0

2

ENGINE, 5.5 HP HONDA GCV (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST AUTHORIZED HONDA ENGINE DEALER)

$

$

Not available

2

ENGINE, 190CC B&S INTEK/IC VERTICAL (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST AUTHORIZED B&S ENGINE DEALER)

$

$

Not available

3

Bear Cat 73714-00

ASSY, FAN HOUSING W/INTAKE

Note: (INCLUDES ITEM 7)

$393.99

$

Usually ships in 3-7 days

0

4

Bear Cat 13850-00

CAP, ROUND VINYL (4 X 1)

$19.99

$

Usually ships in 3-7 days

0

5

Bear Cat 13855-00

PULLEY, 2.85 O.D. X 7/8 IN BORE

$82.99

$

Usually ships in 3-7 days

0

6

Bear Cat 13884-00

BELT, SP BEARVAC (3L32)

$35.99

$

Usually ships in 3-7 days

0

7

Bear Cat 13890-00

DECAL, DANGER

$9.49

$

Usually ships in 3-7 days

0

8

Bear Cat 14181-00

DECAL, 97 DB

$11.99

$

Usually ships in 3-7 days

0

8

Bear Cat 14182-00

DECAL, 98 DB

$12.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15040

WASHER, 5/16 FENDER

$0.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15103

BOLT, 5/16 X 3 HEX HD GR5 ZP

$

$

Not available

10

15560

BOLT, 5/16 X 2-3/4 HCPS GR5

$

$

Not available

11

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

12

Bear Cat 15209

WASHER, #8 SAE FLAT

$

$

Not available

13

Bear Cat 15219

BOLT, 5/16 X 1 HEX HD

$

$

Not available

14

Bear Cat 15250

WASHER, 5/16 FLAT

$

$

Not available

15

15255

NUT, #8 X 32 NYLOCK

$

$

Not available

16

15300

BOLT, 5/16 X 5/8 HEX HD

$

$

Not available

17

Bear Cat 15356

NUT, 5/16 NYLOCK

$

$

Not available

18

Bear Cat 15376

SCREW, 5/16 X 3/8 SET

$

$

Not available

19

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

20

15416

WASHER, 5/16 SAE FLAT

$

$

Not available

21

Bear Cat 15417

BOLT, 5/16 X 4 HHCS GR5 ZP

$

$

Not available

22

15423

SCREW, MCH 10-24 X 1/2 PAN HD PH ZP

$

$

Not available

23

15550

SCREW, #8 X 32 X 3/4 PAN PHP ZP

$

$

Not available

24

15665-00

WASHER, 3/8 GR8 USS ZP

$

$

Not available

25

Bear Cat 15698-00

BOLT, 3/8 NC X 2-1/4 HHCS NF GR8 ZP

$3.99

$

Usually ships in 3-7 days

0

26

Bear Cat 16155

DECAL, SERIAL NUMBER

$

$

Not available

27

Bear Cat 16196

CLAMP, 4 IN HOSE

$

$

Not available

28

Bear Cat 16692

KEY, 3/16 X 5/32 4 MM WDRFF JUMP

$

$

Not available

29

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

30

23668

SPACER, .88 X 1.25

$

$

Not available

31

Bear Cat 31247-00

DECAL, 5.5 HP SP BEARVAC INFORMATION

$10.99

$

Usually ships in 3-7 days

0

31

Bear Cat 14020-00

DECAL, 6 HP SP BEARVAC INFORMATION

$17.99

$

Usually ships in 3-7 days

0

32

Bear Cat 31342-00

SWITCH, HONDA ENGINE KILL

$43.99

$

Usually ships in 3-7 days

0

33

Bear Cat 31390-00

DECAL, COLLECT IT

$34.99

$

Usually ships in 3-7 days

0

34

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO

$9.99

$

Usually ships in 3-7 days

0

35

Bear Cat 18940-00

DECAL, MODEL WV190S

$11.99

$

Usually ships in 3-7 days

0

36

7022

KEY, 3/16 X 1-1/4 SQUARE

$

$

Not available

37

WELDMENT, BEARVAC ROTOR (WAS 73612-00, REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 70337-00)

$

$

Not available

38

Bear Cat 73626-12

WELDMENT, BEARVAC ENGINE SUPPORT

$

$

Not available

39

Bear Cat 73641-35

SUPPORT, BEARVAC FRAME
(Superseded to 70751-00)

$372.99

$

Usually ships in 3-7 days

0

40

Bear Cat 73645-00

ASSEMBLY, EXHAUST DOOR

$218.99

$

Usually ships in 3-7 days

0

41

Bear Cat 76696-12

PLATE, HONDA BRACKET HOLDER

$

$

Not available
