WV 190 - Bear Cat Walk-Behind Vacuum, 190cc Briggs & Stratton (SN: H07102 & Above) Handle Bar (Push) Parts Diagram

Walk-Behind Vacuum, 190cc Briggs & Stratton

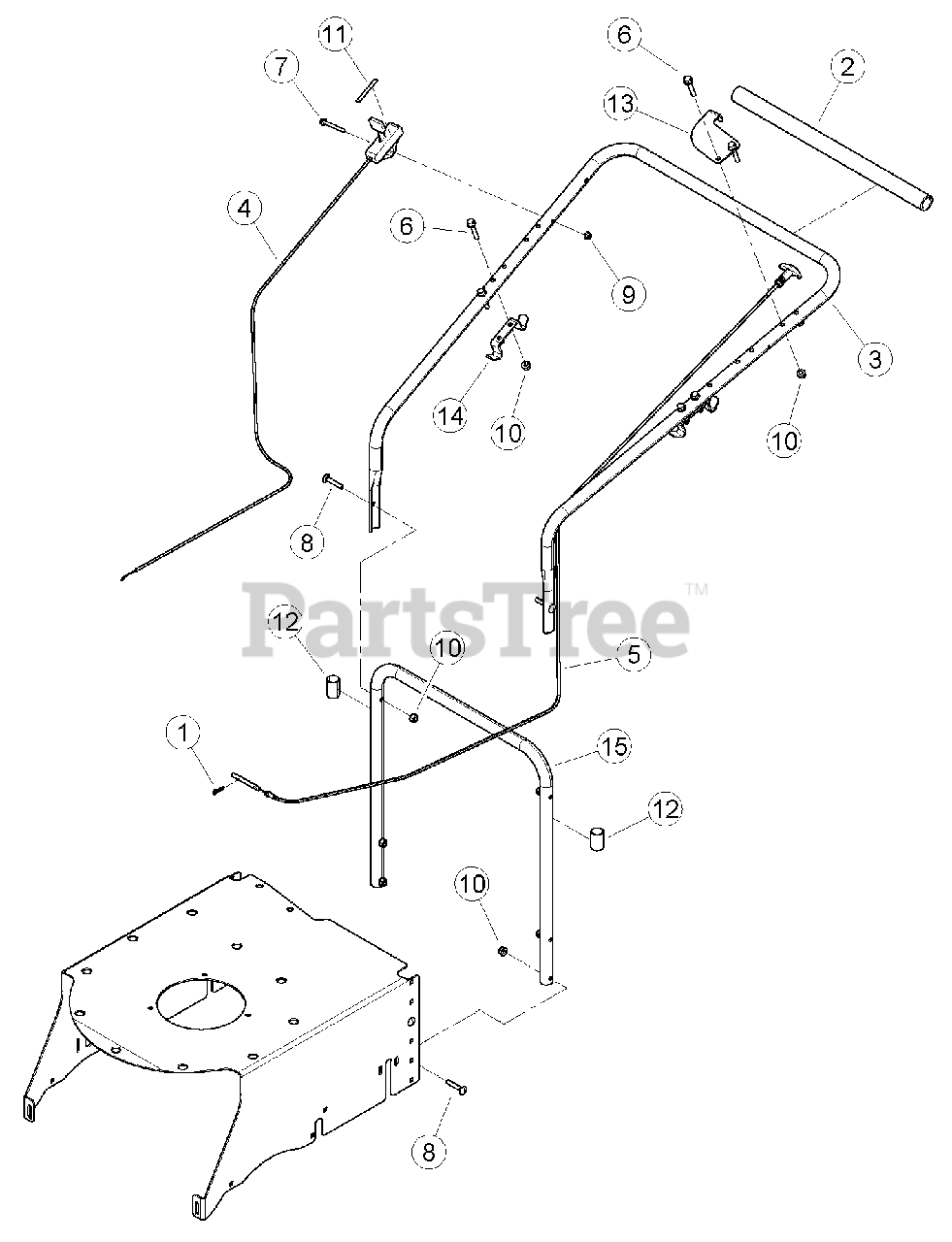

Handle Bar (Push) Parts Diagram

  • Title
1

Bear Cat 13851-00

CLIP, HAIRPIN ZP

$

$

Not available

2

Bear Cat 13857-00

PAD, FOAM HANDLEBAR

$28.99

$

Usually ships in 3-7 days

0

3

Bear Cat 13870-12

HANDLE BAR, BEARVAC UPPER

$

$

Not available

4

Bear Cat 13874-00

CONTROL, THROTTLE

$49.99

$

In Stock, only 1 left!

0

5

Bear Cat 13877-00

CONTROL, HEIGHT ADJUSTMENT

$84.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15127-00

BOLT, 5/16 X 1-3/4 FLANGE NC

$3.99

$

Usually ships in 3-7 days

0

7

15171-00

BOLT, 1/4 X 2 FLANGE NC

$

$

Not available

8

Bear Cat 15350

BOLT, 5/16 X 1-3/4 GR5 CRG ZP

$

$

Not available

9

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK FLANGE

$0.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

11

Bear Cat 16238

DECAL, THROTTLE

$5.49

$

Usually ships in 3-7 days

0

12

Bear Cat 17007

CAP, 7/8" PLASTIC

$1.99

$

Usually ships in 3-7 days

0

13

Bear Cat 73613-12

BRACKET, BEARVAC CABLE MOUNT

$

$

Not available

14

Bear Cat 73614-35

BRACKET, BAG HANGER

$

$

Not available

15

Bear Cat 73622-12

HANDLE BAR, LOWER BEARVAC

$

$

Not available

0040-0137-00

STRAP, 4-1/2 BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
