WV 190 - Bear Cat Walk-Behind Vacuum, 190cc Briggs & Stratton (SN: A05913 - A09358) WV190 Engine & Fan Parts Diagram

Walk-Behind Vacuum, 190cc Briggs & Stratton

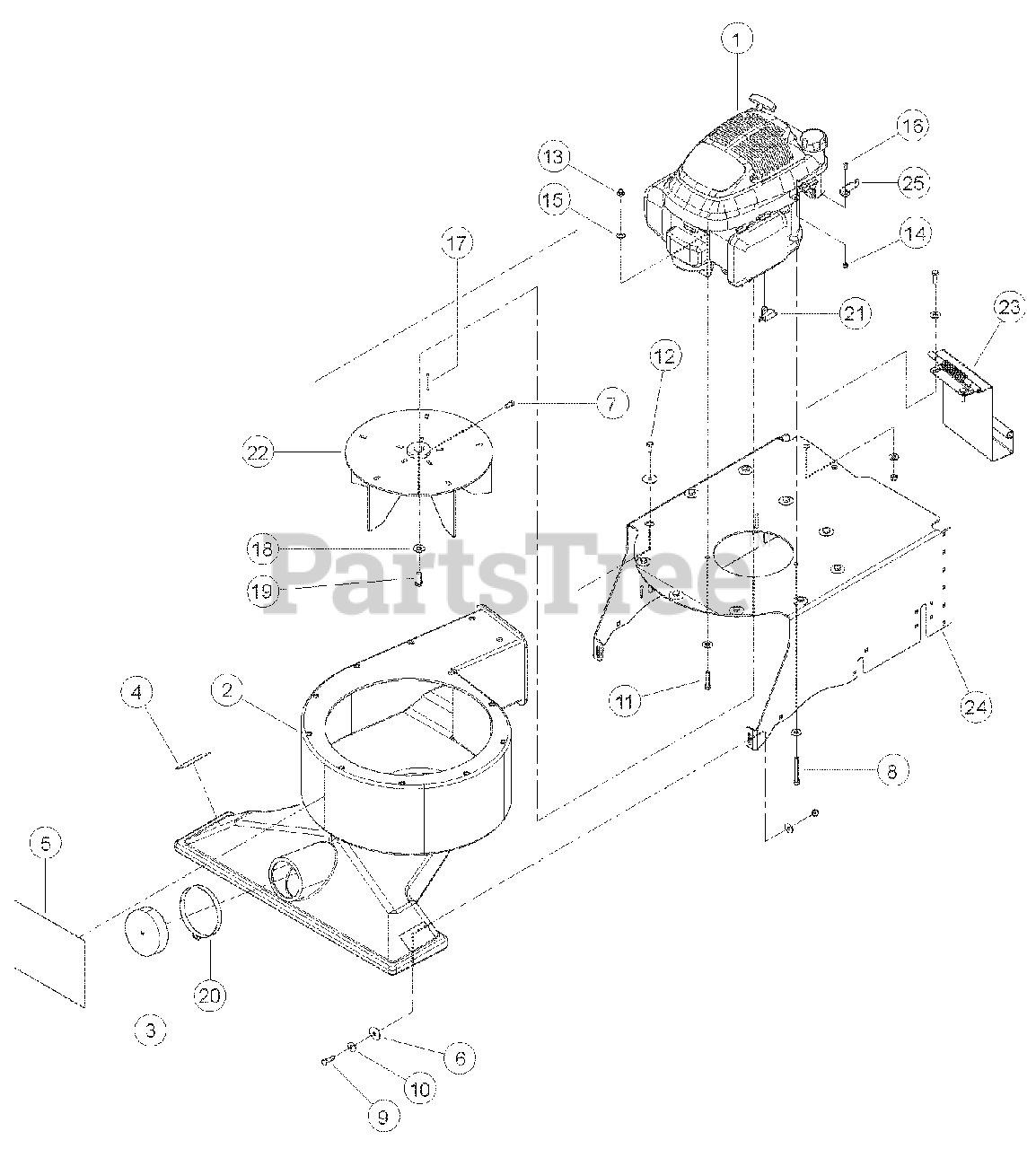

WV190 Engine & Fan Parts Diagram

  • Title
1

ENGINE, 5.5 HP HONDA GCV

$

$

Not available

1

ENGINE, 190CC B&S INTEK/IC VERTICAL

$

$

Not available

2

Bear Cat 73714-00

ASSY., FAN HOUSING W/INTAKE

Note: INCLUDES ITEM 4

$393.99

$

Usually ships in 3-7 days

0

3

Bear Cat 13850-00

CAP, ROUND VINYL (4 X 1)

$19.99

$

Usually ships in 3-7 days

0

4

Bear Cat 13890-00

DECAL, DANGER

$9.49

$

Usually ships in 3-7 days

0

5

Bear Cat 13896-00

DECAL, ECHO BEARCAT

$

$

Not available

5

Bear Cat 18660-00

DECAL, CRARY BEARCAT

$52.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15040

WASHER, 5/16 FENDER ZP

$0.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

8

Bear Cat 15154

BOLT, 5/16 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

8

Bear Cat 15403

BOLT, 5/16-18 X 1-3/4 HCS GR5 ZP

$

$

Not available

9

Bear Cat 15219

BOLT, 5/16 X 1 HHCS GR5 ZP

$

$

Not available

10

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

11

15282

BOLT, 5/16 X 1-1/2 HEX HD GR5 ZP

$

$

Not available

12

15300

BOLT, 5/16 X 5/8 HEX HD GR5 ZP

$

$

Not available

13

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

14

15397

NUT, 10/24 NYLOCK TYPE NM, ZP

$

$

Not available

15

15416

WASHER, 5/16 SAE FLAT ZP

$

$

Not available

16

15423

SCREW, MCH 10-24 X 1/2 PAN HD, PH ZP

$

$

Not available

17

Bear Cat 15434

KEY, 3/16 SQUARE X 1-1/4 LONG PLAIN

$1.49

$

Usually ships in 3-7 days

0

18

15665-00

WASHER, 3/8 GR8 USS ZP

$

$

Not available

19

Bear Cat 15697-00

BOLT, 3/8 X 1 HHCS GR5 NF ZP

$

$

Not available

20

Bear Cat 16196

CLAMP, 4 IN. HOSE

$

$

Not available

22

Bear Cat 73612-00

WELDMENT, BEARVAC ROTOR
(Superseded to 70337-00)

$492.99

$

Usually ships in 3-7 days

0

23

Bear Cat 73645-00

ASSEMBLY, EXHAUST DOOR

$218.99

$

Usually ships in 3-7 days

0

24

76685-35

SUPPORT, BEARVAC FRAME

$

$

Not available
