WV 160 - Bear Cat Walk-Behind Vacuum, 160cc Honda (SN: E06542 - H07101) WV160 & WV190 Engine (Push) (SN: E06542 - E07082) Parts Diagram

Walk-Behind Vacuum, 160cc Honda

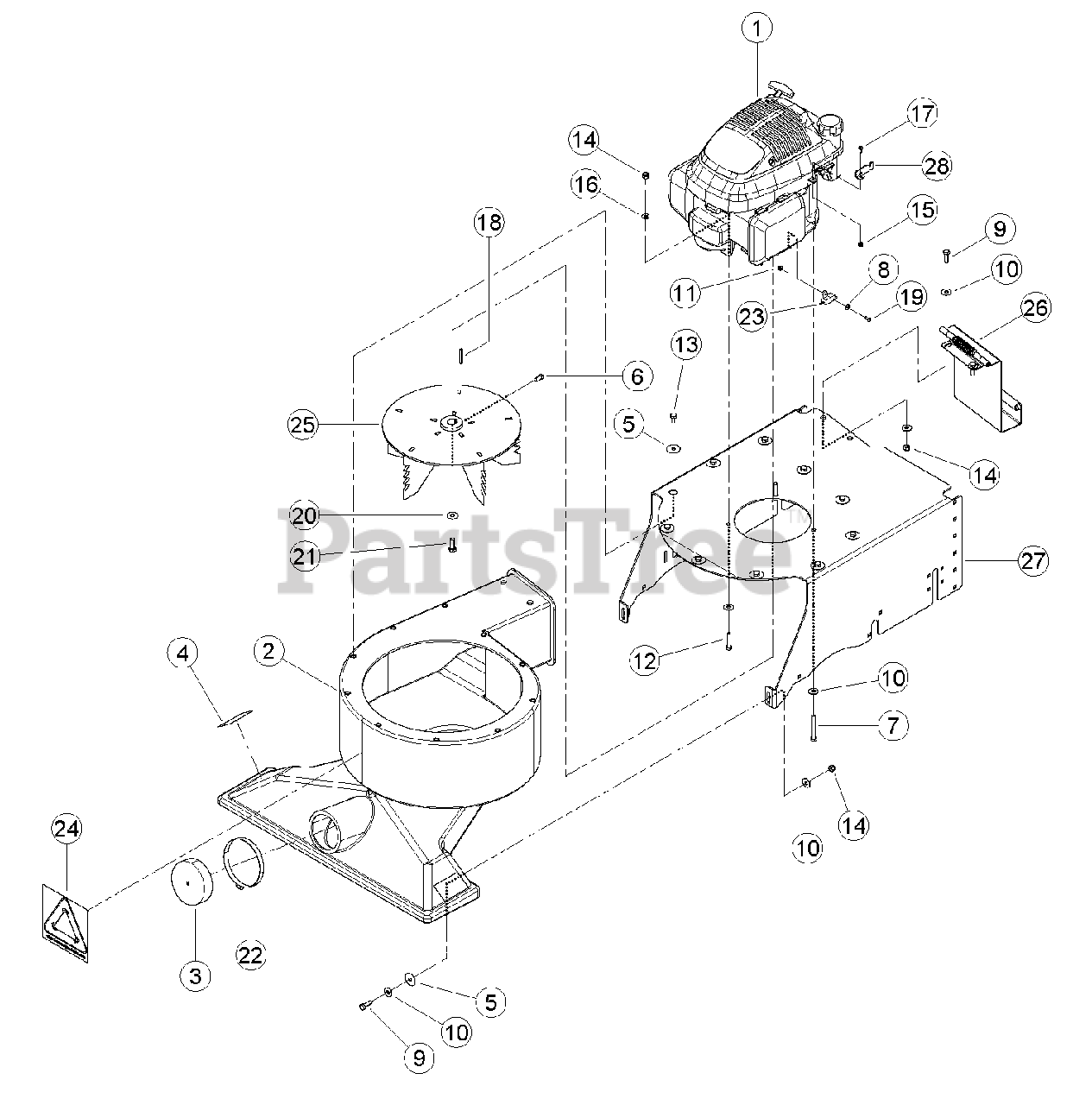

WV160 & WV190 Engine (Push) (SN: E06542 - E07082) Parts Diagram

  • Title
1

ENGINE, 5.5 HP HONDA GCV (WV160 ONLY) (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR NEAREST HONDA INDUSTRIAL ENGINE DEALER)

$

$

Not available

2

Bear Cat 13816-00

HOUSING, FAN W/INTAKE
(Superseded to 73714-00)

$393.99

$

Usually ships in 3-7 days

0

3

Bear Cat 13850-00

CAP, ROUND VINYL

$19.99

$

Usually ships in 3-7 days

0

4

Bear Cat 13890-00

DECAL, DANGER

$9.49

$

Usually ships in 3-7 days

0

5

Bear Cat 15040

WASHER, 5/16 FENDER ZP

$0.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

7

Bear Cat 15403

BOLT, 5/16-18 X 1-3/4 HCS GR5 ZP (WV160 ONLY)

$

$

Not available

8

Bear Cat 15209

WASHER, #8 SAE FLAT (WV160 ONLY)

$

$

Not available

9

Bear Cat 15219

BOLT, 5/16 X 1 HHCS GR5 ZP

$

$

Not available

10

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

11

15255

NUT, #8 X 32 NYLOCK (WV160 ONLY)

$

$

Not available

12

15282

BOLT, 5/16 X 1-1/2 HEX HD GR5 ZP (WV190 ONLY)

$

$

Not available

13

15300

BOLT, 5/16 X 5/8 HEX HD GR5 ZP

$

$

Not available

14

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

15

15397

NUT, 10/24 NYLOCK TYPE NM, ZP (WV160 ONLY)

$

$

Not available

16

15416

WASHER, 5/16 SAE FLAT ZP

$

$

Not available

17

15423

SCREW, MCH 10-24 X 1/2 PAN HD PH ZP (WV160 ONLY)

$

$

Not available

18

Bear Cat 15434

KEY, 3/16 SQUARE X 1-1/4 LONG PLAIN

$1.49

$

Usually ships in 3-7 days

0

19

15550

SCREW, #8 X 32 X 3/4 PAN PHP ZP (WV160 ONLY)

$

$

Not available

20

15665-00

WASHER, 3/8 GR8 USS ZP

$

$

Not available

21

Bear Cat 15697-00

BOLT, 3/8 X 1 HHCS GR5 NF ZP

$

$

Not available

22

Bear Cat 16196

CLAMP, 4 IN. HOSE

$

$

Not available

23

Bear Cat 31342-00

SWITCH, HONDA ENGINE KILL (WV160 ONLY)

$43.99

$

Usually ships in 3-7 days

0

24

Bear Cat 31390-00

DECAL, COLLECT IT

$34.99

$

Usually ships in 3-7 days

0

25

Bear Cat 70337-00

WELDMENT, BEARVAC ROTOR (REPLACED AND SUPERSEDED PN 73612-00.)

$492.99

$

Usually ships in 3-7 days

0

26

Bear Cat 73645-00

ASSEMBLY, EXHAUST DOOR

$218.99

$

Usually ships in 3-7 days

0

27

76685-35

SUPPORT, BEARVAC FRAME

$

$

Not available

28

Bear Cat 76696-12

PLATE, HONDA BRACKET HOLDER (WV160 ONLY)

$

$

Not available
