WT40 XK3 AC/A (WAYJ) - Honda Water Pump, Made in Japan (SN: WAYJ-1100001 - WAYJ-9999999) AIR CLEANER (2) Parts Diagram

Water Pump, Made in Japan

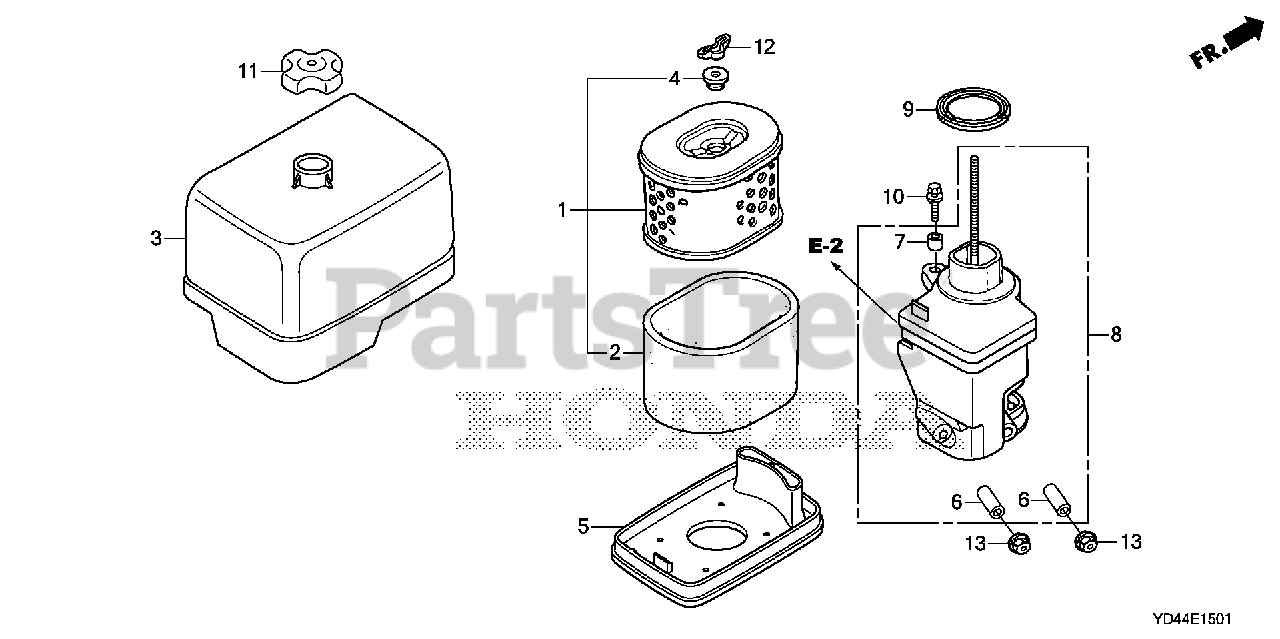

AIR CLEANER (2) Parts Diagram

  • Title

1

Honda 17210-ZE3-010

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER (Honda Code 2893907).
(Superseded to 17210-ZE3-505)

$21.99

$

In Stock, Qty 20+

0

1

Honda 17210-ZE3-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (Honda Code 5252697).

$21.99

$

In Stock, Qty 20+

0

2

Honda 17218-ZE3-000

SEE PART DETAILS - SUP; FILTER (OUTER) (Honda Code 2577377).
(Superseded to 17218-ZE3-505)

$

$

Not available

3

Honda 17231-Z5T-000

COVER, AIR CLEANER HOUSING

$5.99

$

In Stock, Qty 9

0

4

Honda 17232-891-000

GROMMET, AIR CLEANER (Honda Code 0999763).

$5.99

$

In Stock, Qty 16

0

5

Honda 17235-Z5T-000

NOSE, MUFFLER

$16.99

$

Usually ships in 3-6 days

0

6

Honda 17238-ZE2-310

SEE PART DETAILS - PRI; COLLAR, AIR CLEANER (Honda Code 2384105).

$4.99

$

In Stock, Qty 10

0

7

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER (Honda Code 1427533).

$4.99

$

In Stock, Qty 7

0

8

Honda 17410-Z5T-020

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER

$12.99

$

In Stock, only 1 left!

0

9

Honda 17417-Z5T-000

GASKET, AIR CLEANER HOUSING

$0.99

$

In Stock, Qty 9

0

10

Honda 90009-Z1C-000

BOLT-WASHER (6X22)

$2.49

$

Usually ships in 3-6 days

0

11

Honda 90202-Z2E-000

NUT, AIR CLEANER COVER

$8.49

$

In Stock, Qty 20+

0

12

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

13

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
