WT40 XK2 AC/A (WACJ) - Honda Water Pump, Made in Japan (SN: WACJ-1100001 - WACJ-9999999) FUEL TANK Parts Diagram

Water Pump, Made in Japan

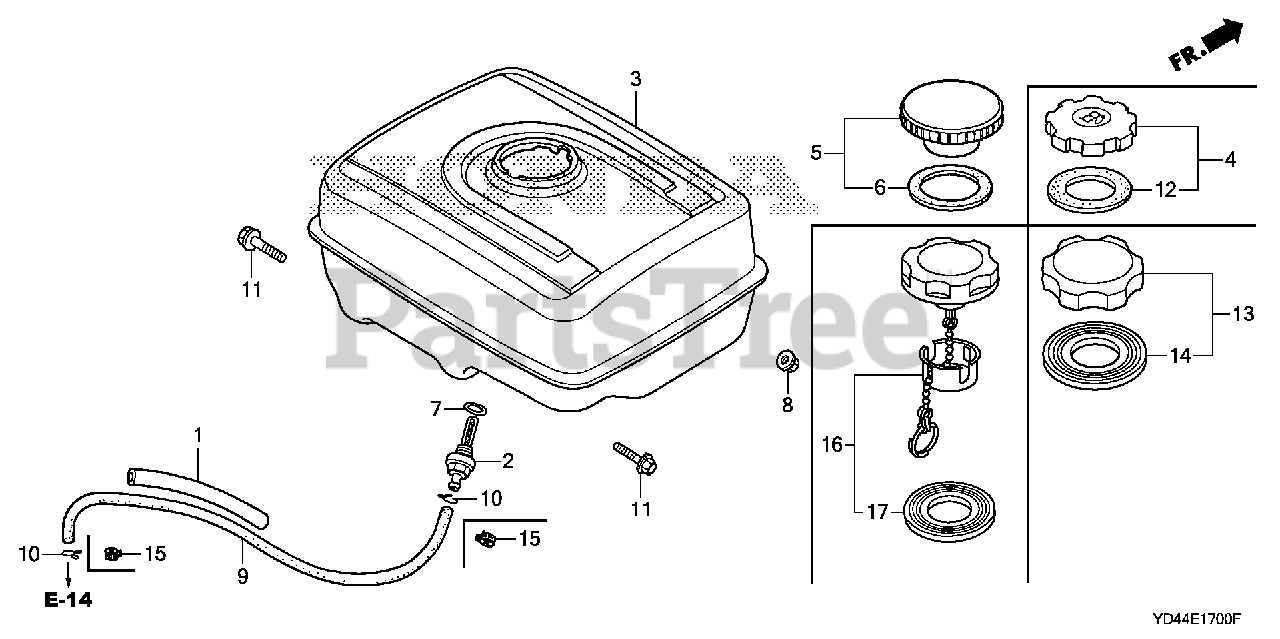

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$5.49

$

In Stock, Qty 12

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE3-030ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: Use up to Engine SN 3980511.

$103.99

$

In Stock, only 1 left!

0

3

Honda 17510-ZE3-800ZC

SEE PART DETAILS - SUP; TANK, FUEL *NH31* (MCKINLEY WHITE)
(Superseded to 17510-ZE3-801ZC)

Note: Use from Engine SN 3980512.

$94.99

$

In Stock, only 1 left!

0

3

Honda 17510-ZE3-800ZC

SEE PART DETAILS - SUP; TANK, FUEL *NH31* (MCKINLEY WHITE)
(Superseded to 17510-ZE3-801ZC)

Note: Use from Engine SN 3980512 to 4071258.

$94.99

$

In Stock, only 1 left!

0

3

Honda 17510-ZE3-801ZC

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: Use from Engine SN 3980512.

$94.99

$

In Stock, only 1 left!

0

4

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (BLACK) Use up to Engine SN 2115700.
(Superseded to 17620-Z0T-305)

Note: Use up to Engine SN 3700314.

$

$

Not available

4

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED)

Note: Use up to Engine SN 3700314.

$

$

Not available

7

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 20+

0

7

Honda 91353-671-004

SEE PART DETAILS - SUP; O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

8

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

9

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

Note: Use up to Engine SN 4137234.

$54.99

$

In Stock, only 1 left!

0

9

Honda 91424-Z5L-802

TUBE, FUEL (4.5X235) (FKM)

Note: Use from Engine SN 4137235.

$

$

Not available

10

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

Note: Use up to Engine SN 4137234.

$2.49

$

In Stock, Qty 20+

0

11

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, only 3 left!

0

12

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP Use from Engine SN 1543258.
(Superseded to 17631-329-013)

Note: Use up to Engine SN 3700314.

$

$

Not available

13

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED)

Note: Use from Engine SN 3700315.

$

$

Not available

13

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED)

Note: Use from Engine SN 3700315 to 4167334.

$

$

Not available

14

Honda 17631-Z0T-812

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)
(Superseded to 17631-Z0T-813)

Note: Use from Engine SN 3700315.

$3.49

$

Usually ships in 3-6 days

0

14

Honda 17631-Z0T-812

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)
(Superseded to 17631-Z0T-813)

Note: Use from Engine SN 3700315 to 4167334.

$3.49

$

Usually ships in 3-6 days

0

15

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

Note: Use from Engine SN 4137235.

$2.99

$

In Stock, only 4 left!

0

16

Honda 17620-Z4H-900

SEE PART DETAILS - PRI; CAP, FUEL FILLER

Note: Use from Engine SN 4167335.

$79.99

$

Usually ships in 3-6 days

0

17

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (Honda Code 7346745).

Note: Use from Engine SN 4167335.

$0.99

$

In Stock, Qty 8

0
