WT40 XK2 AC/A (WACJ) - Honda Water Pump, Made in Japan (SN: WACJ-1100001 - WACJ-9999999) CRANKCASE COVER Parts Diagram

Water Pump, Made in Japan

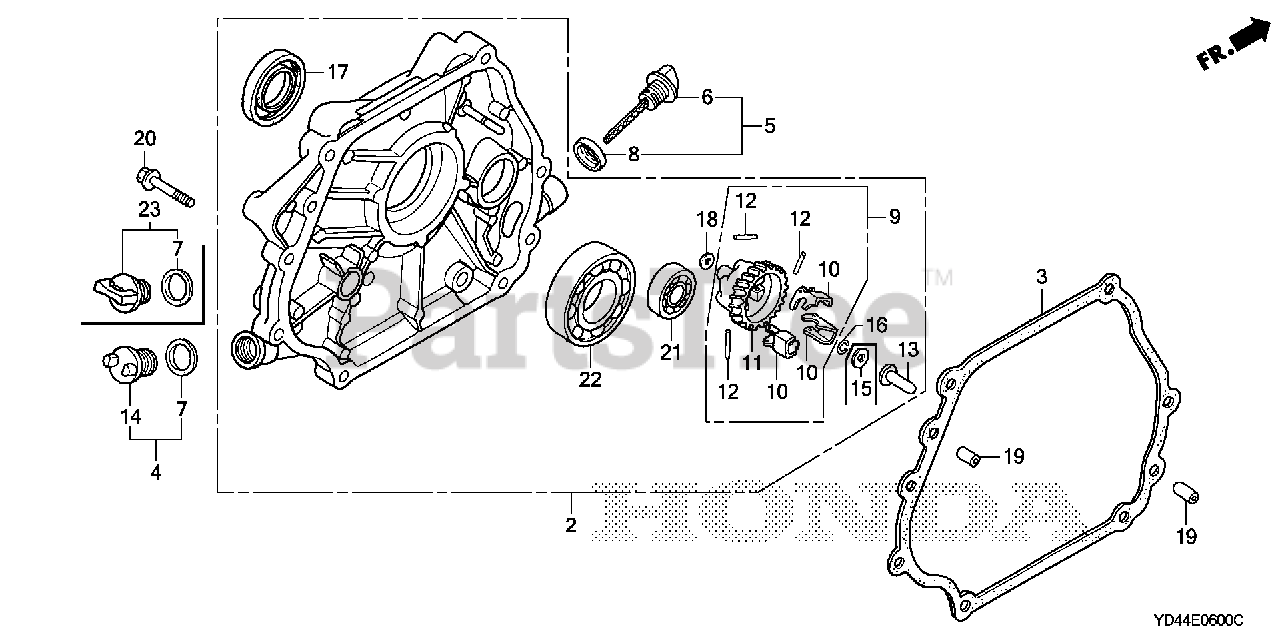

CRANKCASE COVER Parts Diagram

  • Title

2

Honda 11300-Z1C-000

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

$357.99

$

Usually ships in 3-6 days

0

3

Honda 11381-ZE3-801

SEE PART DETAILS - PRI; GASKET, CASE COVER (Honda Code 6436869).

$13.99

$

In Stock, only 1 left!

0

4

Honda 15600-ZG4-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER

$6.99

$

In Stock, only 1 left!

0

5

Honda 15600-735-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER (Honda Code 4523106).

$8.49

$

In Stock, Qty 11

0

6

Honda 15620-735-003

CAP, OIL FILLER

$7.49

$

In Stock, only 1 left!

0

7

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 4497947).

$3.49

$

In Stock, only 1 left!

0

8

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 4497947).

$3.49

$

In Stock, only 1 left!

0

9

Honda 16510-ZE3-000

GOVERNOR ASSY. (Honda Code 3713187).

$31.99

$

Usually ships in 3-6 days

0

10

Honda 16511-ZE8-000

WEIGHT, GOVERNOR (Honda Code 2090090).

$7.99

$

Usually ships in 3-6 days

0

11

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT (Honda Code 3713195).

$18.99

$

Usually ships in 3-6 days

0

12

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0

13

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR (Honda Code 6605117).

$3.99

$

In Stock, Qty 5

0

14

Honda 15620-ZG4-003

CAP, OIL FILLER

$8.49

$

Usually ships in 3-6 days

0

16

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, Qty 6

0

17

Honda 91201-ZE3-004

OIL SEAL (35X52X8) (Honda Code 2108595).

$10.99

$

In Stock, Qty 8

0

18

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

19

Honda 90701-HC4-000

PIN, DOWEL (8X12) (Honda Code 2978443).

$3.99

$

In Stock, only 2 left!

0

20

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) Use up to Engine SN 1003236.

$1.99

$

In Stock, Qty 20+

0

21

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$12.99

$

Usually ships in 3-6 days

0

22

Honda 96100-62070-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207)

$56.99

$

Usually ships in 3-6 days

0
