WT30 XK4 AC/A (WAWJ) - Honda Water Pump, Made in Japan (SN: WAWJ-1100001 - WAWJ-9999999) GOVERNOR ARM (WT30XK1/K2/K3/K4) Parts Diagram

Water Pump, Made in Japan

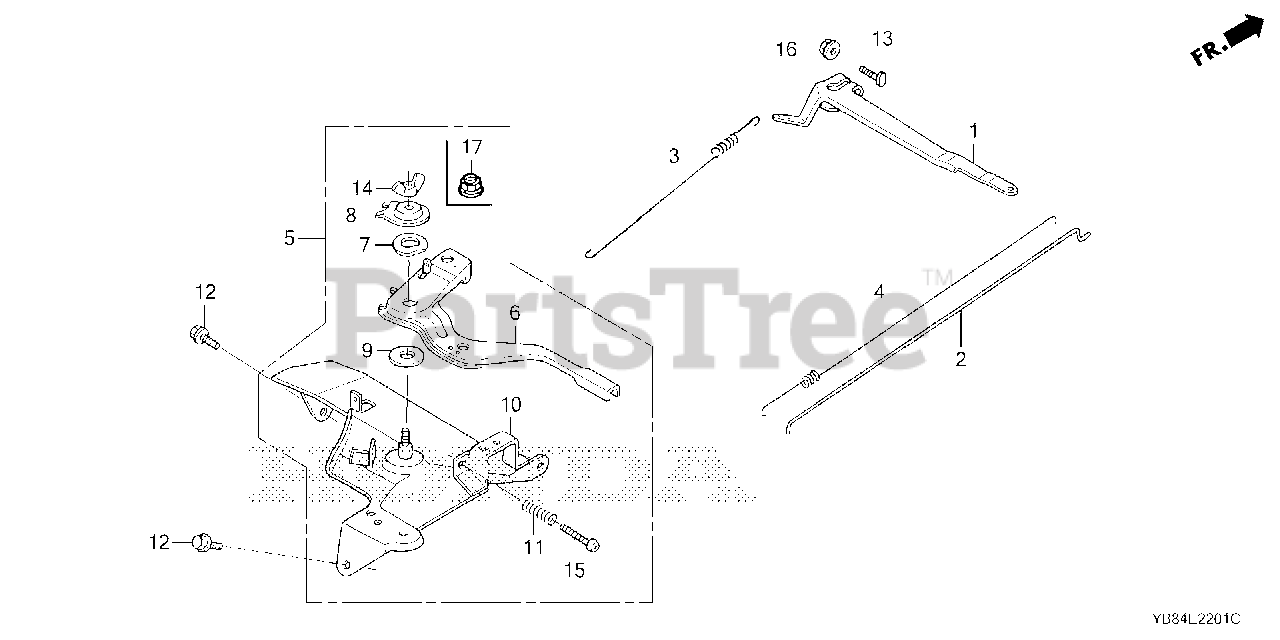

GOVERNOR ARM (WT30XK1/K2/K3/K4) Parts Diagram

  • Title

1

Honda 16551-ZE2-000

ARM, GOVERNOR (Honda Code 2026003).

$18.99

$

Usually ships in 3-6 days

0

2

Honda 16555-ZE2-000

ROD, GOVERNOR (Honda Code 2026011).

$5.49

$

In Stock, only 1 left!

0

3

Honda 16561-ZE2-000

SPRING, GOVERNOR (L=145.0MM) (WIRE DIAMETER 1.0MM)

$5.99

$

In Stock, Qty 11

0

3

Honda 16561-ZE2-800

SPRING, GOVERNOR (L=142.0MM)

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

4

Honda 16562-ZE2-000

SPRING, THROTTLE RETURN (Honda Code 2026037).

$4.99

$

In Stock, Qty 11

0

5

Honda 16500-Z5K-000

SEE PART DETAILS - PRI; CONTROL ASSY.
(Superseded to 16500-Z5K-305)

$

$

Not available

6

Honda 16571-ZE2-W00

SEE PART DETAILS - PRI; LEVER, CONTROL (Honda Code 3678661).

$13.99

$

In Stock, only 1 left!

0

7

Honda 16574-ZE1-000

SPRING, LEVER (Honda Code 1427384).

$4.49

$

In Stock, only 2 left!

0

8

Honda 16575-ZE2-W00

SEE PART DETAILS - PRI; WASHER, CONTROL LEVER

$5.49

$

Usually ships in 3-6 days

0

9

Honda 16578-ZE1-000

SPACER, CONTROL LEVER (Honda Code 1427400).

$5.49

$

In Stock, only 4 left!

0

10

Honda 16580-Z5K-000

BASE, CONTROL

$6.49

$

In Stock, only 1 left!

0

11

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$4.99

$

In Stock, Qty 7

0

12

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

13

Honda 90015-Z5T-000

BOLT, GOVERNOR ARM

$0.99

$

Usually ships in 3-6 days

0

15

Honda 93500-05028-0A

SCREW, PAN (5X28) (Honda Code 0171819).

$1.49

$

In Stock, Qty 5

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

17

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM) (Honda Code 1410182).

$4.49

$

In Stock, Qty 20+

0
