WT30 XK3 AC (WABJ) - Honda Water Pump, Made in Japan (SN: WABJ-1000001 - WABJ-1099999) CRANKCASE COVER (WT30XK1/K2/K3/K4) Parts Diagram

Water Pump, Made in Japan

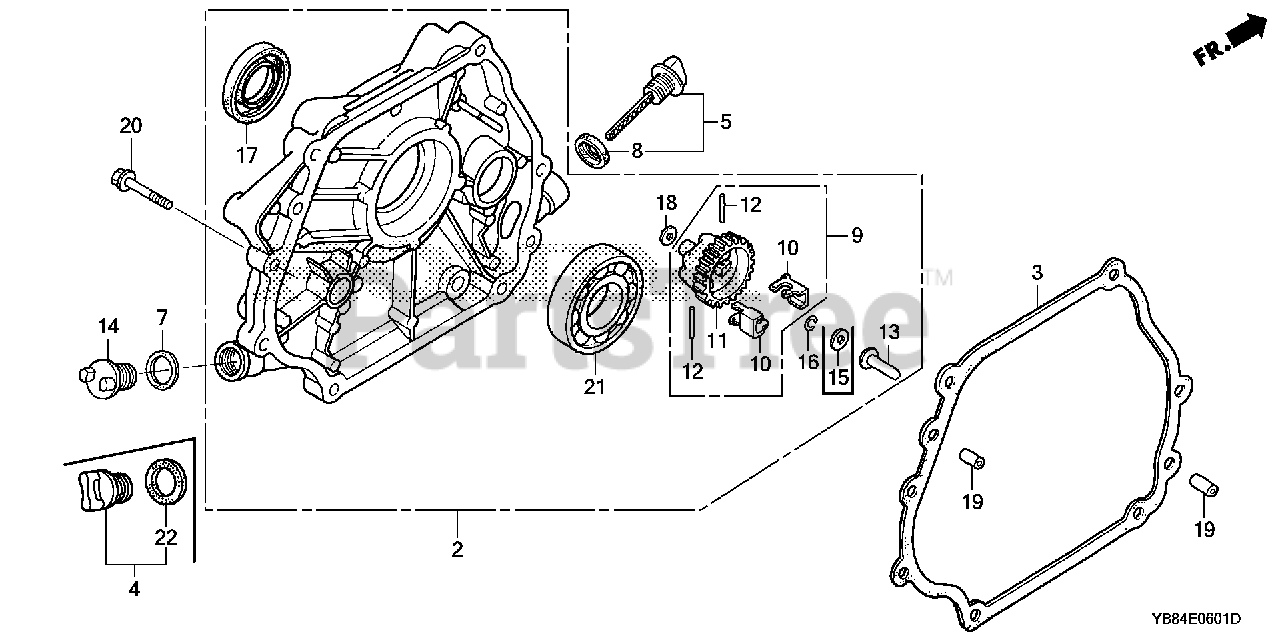

CRANKCASE COVER (WT30XK1/K2/K3/K4) Parts Diagram

  • Title

2

Honda 11300-ZE2-630

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE
(Superseded to 11300-ZE2-632)

$270.99

$

In Stock, only 1 left!

0

2

Honda 11300-ZE2-632

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

$270.99

$

In Stock, only 1 left!

0

3

Honda 11381-ZE2-306

SEE PART DETAILS - SUP; GASKET, CASE COVER
(Superseded to 11381-ZE2-801)

$11.99

$

In Stock, only 4 left!

0

3

Honda 11381-ZE2-800

SEE PART DETAILS - PRI; GASKET, CASE COVER
(Superseded to 11381-ZE2-801)

$11.99

$

In Stock, only 4 left!

0

5

Honda 15600-735-003

CAP ASSY., OIL FILLER

$8.49

$

In Stock, Qty 11

0

7

Honda 15621-896-010

GASKET, OIL FILLER CAP

$5.49

$

In Stock, Qty 5

0

8

Honda 15625-ZE1-000

SEE PART DETAILS - SUP; GASKET, OIL FILLER CAP
(Superseded to 15625-ZE1-003)

$3.49

$

In Stock, only 2 left!

0

8

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$3.49

$

In Stock, only 2 left!

0

9

Honda 16510-ZE2-000

GOVERNOR ASSY.

$27.99

$

Usually ships in 3-6 days

0

10

Honda 16511-ZE2-000

WEIGHT, GOVERNOR

$3.99

$

Usually ships in 3-6 days

0

11

Honda 16512-ZE2-000

HOLDER, GOVERNOR WEIGHT

$19.99

$

Usually ships in 3-6 days

0

12

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

13

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.99

$

In Stock, Qty 5

0

14

Honda 15620-ZG4-910

CAP, OIL FILLER

$4.49

$

Usually ships in 3-6 days

0

14

Honda 25611-735-000

CAP, OIL HOLE
(Superseded to 15620-ZG4-910)

Note: Use up to Engine SN 1528043.

$4.49

$

Usually ships in 3-6 days

0

15

Honda 90473-147-000

WASHER (6X16)

$1.99

$

In Stock, only 2 left!

0

16

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 6

0

16

Honda 90602-896-000

CLIP, GOVERNOR HOLDER

Note: Use up to Engine SN 1287216.

$1.99

$

Usually ships in 3-6 days

0

17

Honda 91201-889-003

OIL SEAL (30X45X8)

$11.99

$

Usually ships in 3-6 days

0

18

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 90701-HC4-000

PIN, DOWEL (8X12)

Note: Use from Engine SN 1342866.

$3.99

$

In Stock, only 2 left!

0

19

Honda 94301-08120

PIN A, DOWEL (8X12)

Note: Use from Engine SN 1238478 to 1342865.

$2.99

$

Usually ships in 3-6 days

0

19

Honda 94301-08140

PIN, DOWEL (8X14)

Note: Use up to Engine SN 1238477.

$2.99

$

In Stock, Qty 8

0

20

Honda 95701-08035-00

BOLT, FLANGE (8X35)

$2.99

$

In Stock, Qty 12

0

21

Honda 96100-62060-00

BEARING, RADIAL BALL (6206)

$30.99

$

In Stock, only 1 left!

0
